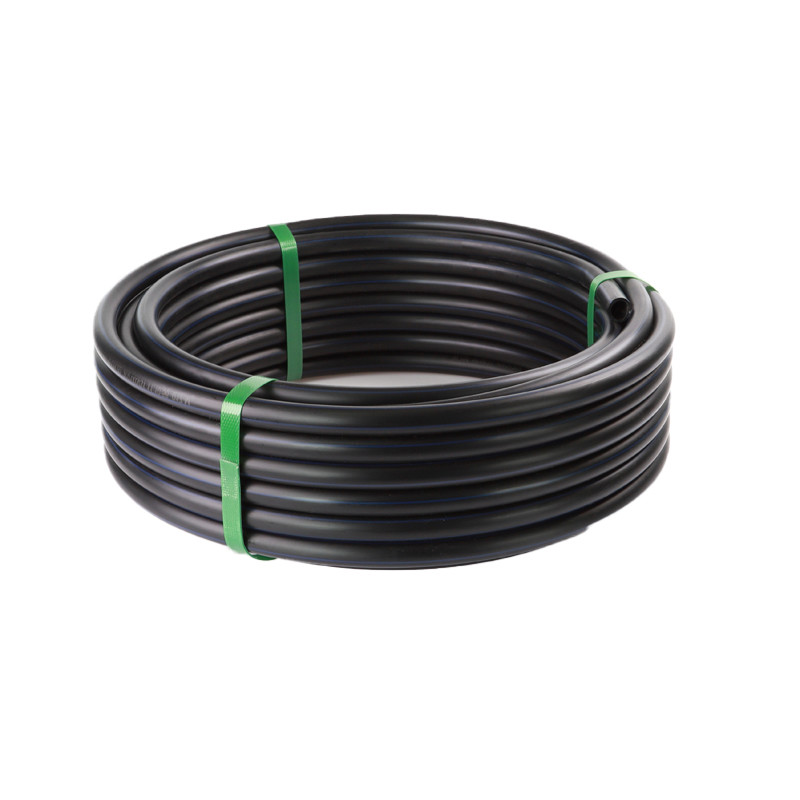

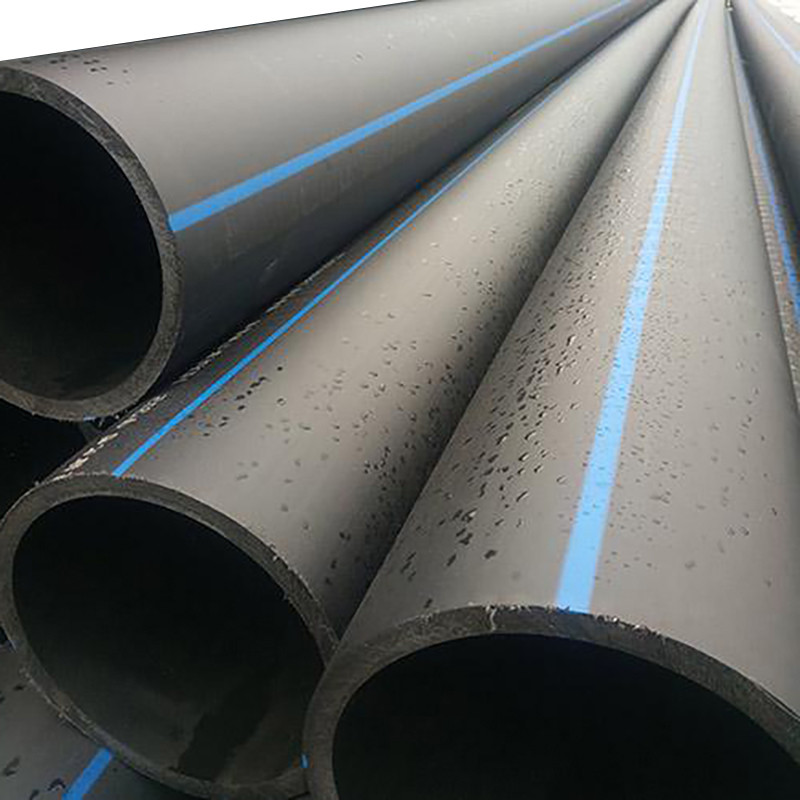

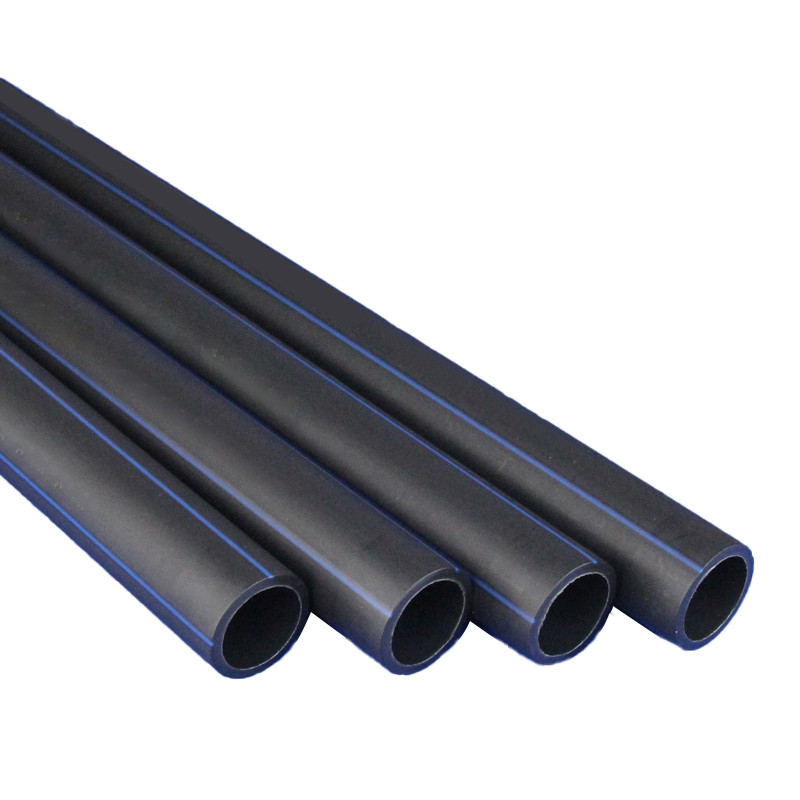

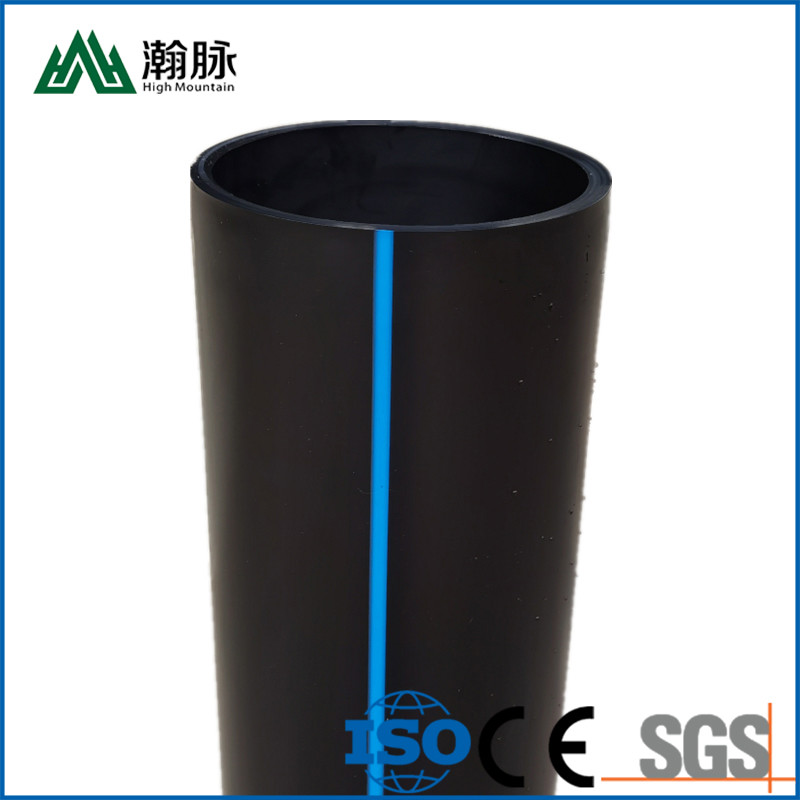

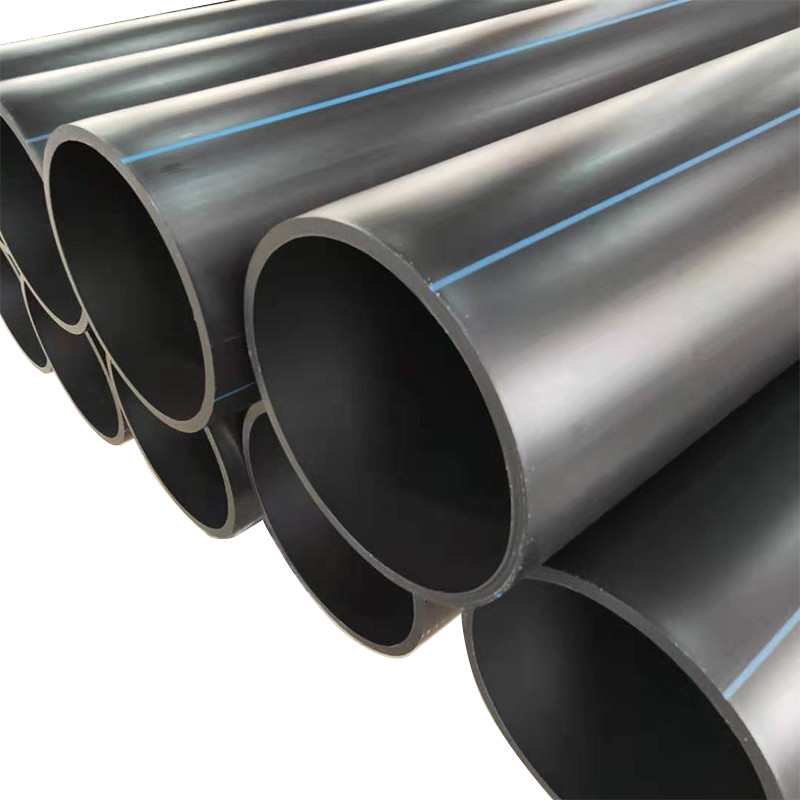

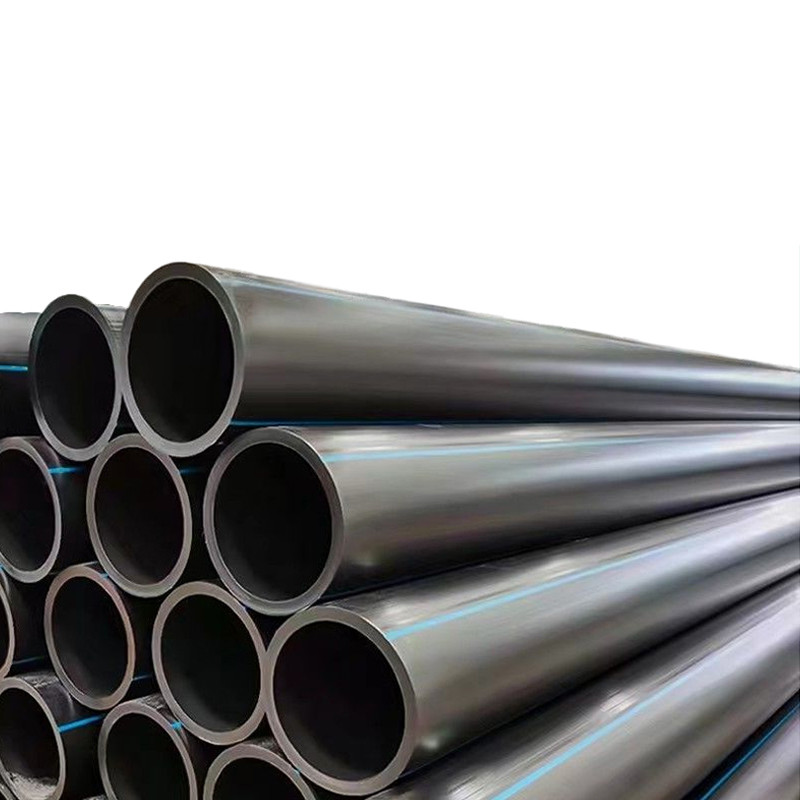

Customized Hdpe Water Supply And Drainage Plastic Pipes Of Different Specifications
----------------------------------------
Basic Info.
Socket type electric hot melt connection
The outstanding advantages of electrofusion connection are reliable quality and high construction efficiency.
Put the HDPE pipe fittings to be connected on the HDPE pipe, and use an electrofusion welding machine to melt the inner surface of the electrofusion pipe fitting with the heating wire embedded and the surface of the pipe insertion end. After cooling, the pipe and pipe fittings have been electrofused together, so that The connection is very solid.
Flange connection
When the HDPE pipe needs to be connected with water facilities such as metal pipes and valves, flange connection is required. The flange piece should be selected according to the size of the connecting pipe, and the pipe and the fitting should be fastened and fixed by the flange piece, so that the flange connecting piece and the flange piece are in close contact to achieve the purpose of connection.
Tip: The way of flange connection is to add flanges, screws and screws on the basis of connecting the HDPE pipe and the HDPE flange head in the butt-type hot melt connection.
| Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
Packing Loaded into 40GP/Piece 6m or 12m per Piece |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Crack resistance
HDPE pipe is stable in structure, not easy to be damaged and cracked, and has a low price. It can effectively reduce noise. It has been gradually applied in building wiring, household appliances, communication equipment, etc.
2. Impact resistance
1) The special structure of HDPE pipe makes it have high mechanical strength and high ring stiffness, and can withstand strong impacts more strongly than traditional pipes, such as areas with multiple earthquakes.
2), the low temperature resistance of HDPE pipe, strong ductility, not easy to be brittle, can resist the impact of extremely cold weather, such as northern China.
3. Wear resistance
The high polymer composition of HDPE pipe is the main reason for its high wear resistance. The wear resistance is even higher than that of most metals, and the self-lubrication is good. It is an ideal pipe.
Details
Application
1. Sewage discharge pipe: PE water supply pipe has unique corrosion resistance and is suitable for the discharge of industrial wastewater and sewage. It not only has a long life, but also has low cost and maintenance costs;
2. Mine mortar transportation: PE water supply pipes have high-strength compression resistance, wear resistance and corrosion resistance, and can be used for ore transportation and mud transportation for river dredging.
3. Agricultural irrigation pipes: PE water supply pipes have smooth inner walls, large flow capacity, and good impact resistance. They are ideal pipes for agricultural irrigation;
Certificate
Company Profile
High Mountain Pipe Industry is a high-tech enterprise integrating production and sales of sewage treatment equipment and municipal water supply and drainage pipelines. With a long-term vision and taking advantage of the background of Internet big data, we rely on our own production technology strength to continuously explore the transformation and upgrading strategies of traditional production enterprises, and become a new domestic "Internet + pipeline building material" production enterprise! The company integrates product development, production and sales.
The company takes "sunshine trading" as its corporate purpose; relying on a large number of production equipment, scientific production formula, staff team, and strong production force, it is committed to improving the quality of China's pipeline building materials, making prices more affordable, and making transactions more transparent.
FAQ
Q: Is the price on this page correct?
A: The listed prices are for reference only, please contact us directly for the latest prices.
Q: Is it possible to use the label or packaging I specified?
A: Yes. If necessary, we would like to use labels or packaging according to your requirements.
Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.
