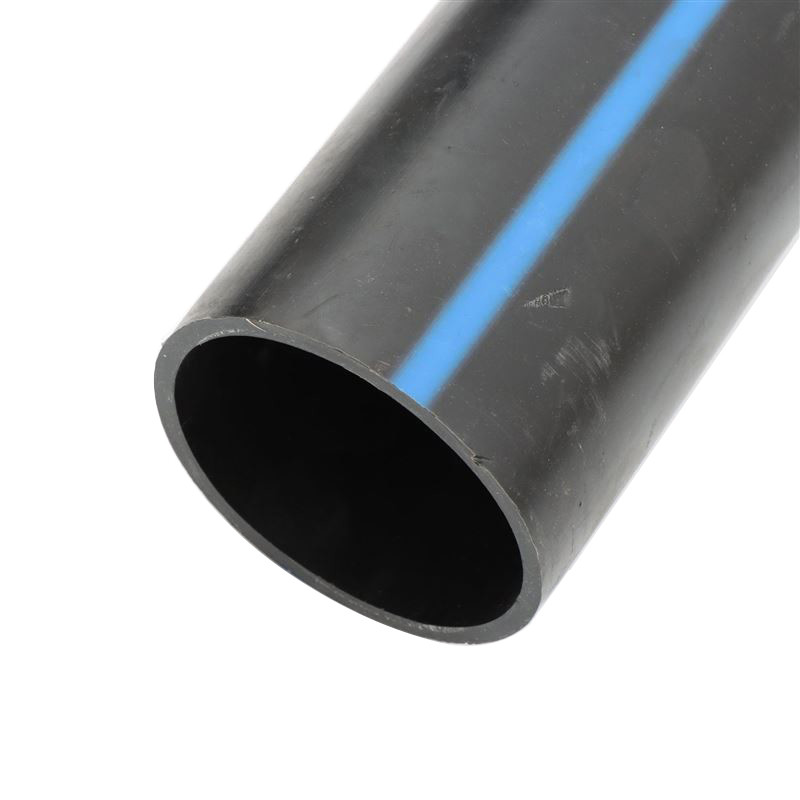

HDPE Water Supply Pipe 300mm Black Pipe Sewage Straight Drain Pipe PE Pipe
----------------------------------------
Basic Info.
HDPE is a very common material, that is, high-density polyethylene. HDPE is high-density polyethylene, and PE is polyethylene. That's the difference. But the physical properties are different.
| Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
Packing Loaded into 40GP/Piece 6m or 12m per Piece |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
The main features of HDPE pipes are: good toughness and flexibility; small friction coefficient and strong passing ability; convenient construction, good chemical stability, long service life, suitable deflection, good resistance to rapid crack transmission, resistance to Low temperature, conform to the requirements of the times, "green" environmental protection.
Details
Application
The materials used in HDPE pipes are mainly polyvinyl chloride (PVC), polyethylene (PE) and polypropylene (PP). Compared with other plastic pipes (such as PVC), high-density polyethylene (HDPE) pipes have the characteristics of low density, good toughness, corrosion resistance, good insulation performance, easy construction and installation, and are widely used in municipal and building water supply and drainage, gas , heating and heating, wire and cable threading, agricultural water-saving irrigation and other fields.
Certificate
Company Profile
High Mountain Pipe Industry is a specialized enterprise that produces anticorrosive plastics (pp, frpp, pe, hdpe, pvdf, pph, upvc, cpvc, abs) pipes, fittings, plates, and valves. The company has various assets of more than 61.8 million yuan, 10 pipe production lines, 2 pipe fittings production lines, and 1 sheet production line. It has a production capacity of more than 8,000 tons of various anti-corrosion plastic products. The pipe production caliber can reach 1200mm, the plate production width can reach 2000mm, and the length is unlimited. In 2006, the company passed ISO9001-2000 quality management system certification, ISO14001 environmental system certification, OHSA18001 occupational health and safety system certification, CMMI certification, and IEC27001 information security system certification.
The company adheres to the people-oriented scientific development concept, correctly grasps product development trends, implements strategic target management, is committed to developing core manufacturing advantages, optimizing resource allocation and technological breakthroughs, introducing market-oriented and refined operating systems, achieving leapfrog development, and striving to build " "Rongchengxing" brand, implement a win-win strategy, and work hard for the development of the industry!
FAQ
Q: What are raw materials?
A: PE.
Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
Q: After reading your FAQ, I am very satisfied. How can I start buying my order?
A: Please contact our sales manager by email or phone, thank you.
