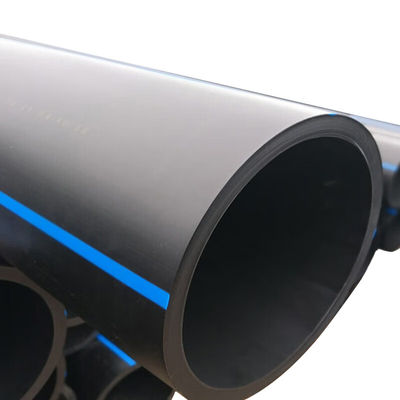

Professional Customized HDPE Water Supply Pipe Large Diameter Plastic Pe Pipe
----------------------------------------
Basic Info.
HDPE pipe is a highly crystalline, non-polar thermoplastic resin. Generally, the application range of PE pipes for water supply pipelines is below 40°C, and cannot be used for hot water delivery pipelines. The appearance of the original HDPE is milky white, and it is translucent to a certain extent in the thin section. PE pipe material has excellent resistance to most household and industrial chemicals. Certain types of chemicals are chemically aggressive, such as corrosive oxidants (concentrated nitric acid), aromatic hydrocarbons (xylene), and halogenated hydrocarbons (carbon tetrachloride).
| Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
Packing Loaded into 40GP/Piece 6m or 12m per Piece |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Excellent corrosion resistance, better hygiene performance and longer service life
2. Unique flexibility and excellent scratch resistance
3. Very outstanding low temperature resistance
4. Good fracture toughness with rapid crack growth
Details
Application
Mine mortar conveying pipeline;
Protective sleeves for post and telecommunications lines and power wires;
Material and liquid transportation pipelines in chemical, chemical fiber, food, forestry, printing and dyeing, pharmaceutical, light industry, papermaking, metallurgical and other industries.
