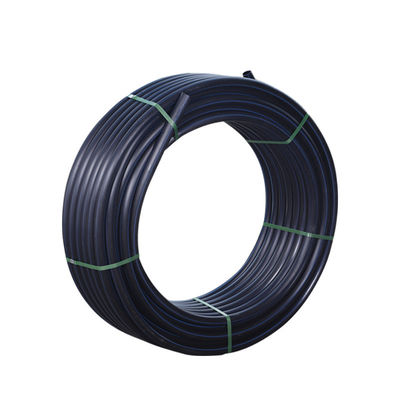

600mm HDPE Water Supply Pipe PE Black Pipe For Sewage Straight Drain
----------------------------------------
Basic Info.
The water supply pipe must bear a certain pressure, usually a PE resin with a large molecular weight and good mechanical properties, such as HDPE resin, should be used. LDPE resin has low tensile strength, differential pressure resistance, poor rigidity, poor dimensional stability during molding and difficult connection, and is not suitable as a material for water supply pressure pipes. However, due to its high hygienic index, LDPE, especially LLDPE resin, has become a common material for the production of drinking water pipes. LDPE and LLDPE resins have low melt viscosity, good fluidity, and easy processing, so their melt index can be selected in a wide range, usually MI is between 0.3-3g/10min.
| Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
Packing Loaded into 40GP/Piece 6m or 12m per Piece |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Stability of processing performance: PEX has the problems of controlling the degree of cross-linking and cross-linking uniformity. The processing is complicated and the processing directly affects the performance of the pipe. However, PE-RT and PP-R are easy to process, and the performance of the pipe is basically determined by the raw material, and the performance is relatively stable.
2. High temperature resistance: The high temperature resistance of PE-RT can reach 90°C, while that of PEX can only reach 65°C.
3. Low temperature thermal shock resistance: PE-RT has better low temperature shock resistance. During winter construction, the pipes are not susceptible to impact and rupture, which increases the flexibility of construction arrangements.
4. Environmental protection: PE-RT and PP-R can be recycled and will not pollute the environment. The PEX cannot be recycled will cause secondary pollution.
Details
Application
Urban and rural water supply pipeline system
The urban and rural water supply system is an integral part of the entire urban and rural planning, and generally consists of water sources, water supply pipelines, water plants, and water supply networks. After the water is drawn from the water source, the treated water is sent to the water plant for water quality treatment, and the pressurized water is delivered to the user through the water distribution network. HDPE water supply pipes have good wear resistance and mechanical strength, and have strong temperature adaptability, which can work normally in the environment of -40°+95°.
Certificate
Company Profile
High Mountain Pipe Industry is a high-tech enterprise integrating production and sales of sewage treatment equipment and municipal water supply and drainage pipelines. With a long-term vision and taking advantage of the background of Internet big data, we rely on our own production technology strength to continuously explore the transformation and upgrading strategies of traditional production enterprises, and become a new domestic "Internet + pipeline building material" production enterprise! The company integrates product development, production and sales.
FAQ
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
Q: What is your warranty policy?
A: The product is guaranteed for two years from the date of shipment (or leaving the seller's factory depending on the terms).
It is also guaranteed that the product can be used for 50 years.
