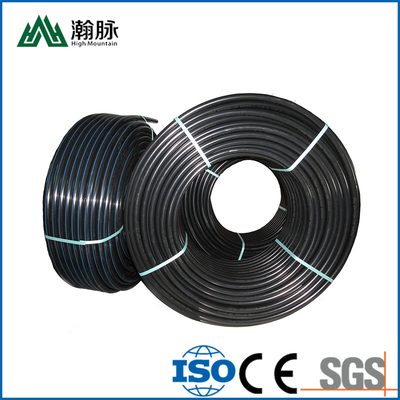

Dredging Drainage Hdpe Water Supply Pipe PE100 Plastic Black Color DN20mm

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Dredging Drainage Hdpe Water Supply Pipe PE100 Plastic Black Color DN20mm
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM1-46
Specification: DN20mm-630mm
Color: Black Or Customer Request
Usage: Water Supply
Raw Material: PE100
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Samples
Advantage: High Performance
High Light:

Dredging Drainage Hdpe Water Supply Pipe

,

DN20mm Drainage Hdpe Water Supply Pipe

,

Drainage Hdpe Water Supply Pipe PE100

Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001,14001,45001
Model Number: HM1-46
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

Dredging Drainage Hdpe Water Supply Pipe Plastic Factory Black Color Pipe

----------------------------------------

Basic Info.



The main difference between HDPE water supply pipe and HDPE drainage pipe is their intended use. HDPE water supply pipes are designed for transporting potable water, while HDPE drainage pipes are meant for transporting wastewater. Both types of pipe are made from high-density polyethylene (HDPE), but HDPE water supply pipes have a higher level of purity than HDPE drainage pipes. This means that HDPE water supply pipes are safe for human contact, while HDPE drainage pipes should not be used for drinking water.





Outer Diameter
DN (mm)
SDR 9
PN20
SDR 11
PN16
SDR 13.6
PN12.5
SDR 17
PN10
SDR21
PN8
SDR26
PN6
Packing
Loaded into 40GP/Piece
6m or 12m per Piece
  Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm) Wall Thick Ness(mm)
75 8.4 6.8 5.6 4.5     1085
90 10.1 8.2 6.7 5.4 4.3   754
110 12.3 10 8.1 6.6 5.3 4.2 504
125 14 11.4 9.2 7.4 6 4.8 378
140 15.7 12.7 10.3 8.3 6.7 5.4 304
160 17.9 14.6 11.8 9.5 7.7 6.2 224
180 20.1 16.4 13.3 10.7 8.6 6.9 182
200 22.4 18.2 14.7 11.9 9.6 7.7 143
225 25.2 20.5 16.6 13.4 10.8 8.6 110
250 27.9 22.7 18.4 14.8 11.9 9.6 90
280 31.3 25.4 20.6 16.6 13.4 10.7 72
315 35.2 28.6 23.2 18.7 15 12.1 56
355 39.7 32.2 26.1 21.1 16.9 13.6 42
400 44.7 36.3 29.4 23.7 19.1 15.3 30
450 50.3 40.9 33.1 26.7 21.5 17.2 25
500 55.8 45.4 36.8 29.7 23.9 19.1 20
560 62.5 50.8 41.2 33.2 26.7 21.4 16
630 70.3 57.2 46.3 37.4 30 24.1 12
710   64.5 52.2 42.1 33.9 27.2 9
800   72.7 58.8 47.4 38.1 30.6 6
900   81.8 66.2 53.3 42.9 34.4 6
1000   90.2 72.5 59.3 47.7 38.2 4
1200     88.2 67.9 57.2 45.9
1400     102.9 82.4 66.7 53.5
1500     110.2 88.2 71.4 57.6
1600     117.6 94.1 76.2 61.2





How to install HDPE pipe?

Installing HDPE pipe is a relatively simple process that can be completed by anyone with basic plumbing knowledge. There are only a few steps involved in the installation process, and no special tools or equipment is required. Here is a step-by-step guide to installing HDPE pipe:

1.Measure the area where the pipe will be installed and mark out the route for the pipe.

2.Dig a trench along the marked route, making sure that it is wide enough to accommodate the HDPE pipe.

3.Lay the HDPE pipe in the trench and secure it in place with clamps or straps.

4.Cover the pipe with soil or gravel and compact it around the pipe to form a tight seal.

5.Test the HDPE pipe by performing a pressure test or watertightness test.



Details

Dredging Drainage Hdpe Water Supply Pipe PE100 Plastic Black Color DN20mm 0Dredging Drainage Hdpe Water Supply Pipe PE100 Plastic Black Color DN20mm 1Dredging Drainage Hdpe Water Supply Pipe PE100 Plastic Black Color DN20mm 2Dredging Drainage Hdpe Water Supply Pipe PE100 Plastic Black Color DN20mm 3










Application

Urban gas pipelines
Because HDPE gas special pipeline has strong impact resistance and toughness. Gradually replace cast iron pipes for urban and rural gas transmission projects. The urban gas pipeline network must not only ensure uninterrupted and reliable supply of gas to users, ensure the safe operation and management of the system, and facilitate maintenance and maintenance, but also consider closing some pipe sections without affecting the work of other systems during maintenance or failure. Therefore, it is necessary to select different pressure levels in the urban gas network system.



Certificate

Dredging Drainage Hdpe Water Supply Pipe PE100 Plastic Black Color DN20mm 4
Dredging Drainage Hdpe Water Supply Pipe PE100 Plastic Black Color DN20mm 5
Dredging Drainage Hdpe Water Supply Pipe PE100 Plastic Black Color DN20mm 6
Company Profile

High Mountain Pipe Management Industry With 19 years of experience in R&D, production and sales of plastic pipe fittings, HDPE pipes are of good quality. In order to meet the actual needs of modern high-quality buildings and the design concept of environmental protection and silence, the company has introduced advanced production equipment and manufacturing technology, and has successively developed grooved ( HDPE) HDPE mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and HDPE siphon drainage system series products. HDPE is a highly crystalline, non-polar thermoplastic resin. The appearance of the original HDPE is milky white, and it is translucent to a certain extent in the thin section. PE has excellent resistance to most household and industrial chemicals. hdpe pipe factory adheres to the factory policy of "credibility, quality and management as the fundamental goal", with moderate price, dedicated service, and customer satisfaction as the purpose, abiding by contracts and keeping promises and famous all over the country.

Dredging Drainage Hdpe Water Supply Pipe PE100 Plastic Black Color DN20mm 7     Dredging Drainage Hdpe Water Supply Pipe PE100 Plastic Black Color DN20mm 8

Dredging Drainage Hdpe Water Supply Pipe PE100 Plastic Black Color DN20mm 9     Dredging Drainage Hdpe Water Supply Pipe PE100 Plastic Black Color DN20mm 10

FAQ



Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.



Q: Is the price on this page correct?
A: The listed prices are for reference only, please contact us directly for the latest prices.
