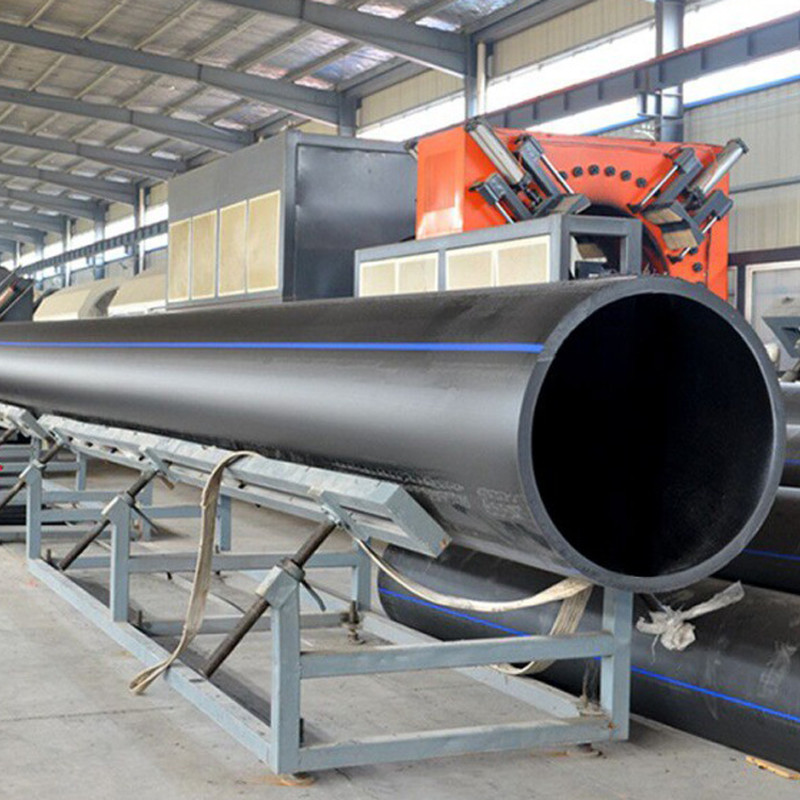

90mm 750mm 200mm Pn16 12 Inch Prices PE Plastic Irrigation HDPE Water Supply Pipe
----------------------------------------
Basic Info.
PE pipes for water supply are the replacement products of traditional steel pipes and PVC drinking water pipes.The water supply pipe must bear a certain pressure, usually a PE resin with a large molecular weight and good mechanical properties, such as HDPE resin, should be used. LDPE resin has low tensile strength, differential pressure resistance, poor rigidity, poor dimensional stability during molding and difficult connection, and is not suitable as a material for water supply pressure pipes. However, due to its high hygienic index, LDPE, especially LLDPE resin, has become a common material for the production of drinking water pipes. LDPE and LLDPE resins have low melt viscosity, good fluidity, and easy processing, so their melt index can be selected in a wide range, usually MI is between 0.3-3g/10min.
| Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
Packing Loaded into 40GP/Piece 6m or 12m per Piece |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Thermal conductivity: pipes used for floor heating need to have good thermal conductivity. PE-RT has better thermal conductivity, and its thermal conductivity is twice that of PP-R and PP-B pipes. It is very suitable for floor heating.
2. High temperature resistance: The high temperature resistance of PE-RT can reach 90°C, while that of PEX can only reach 65°C.
3. Low temperature thermal shock resistance: PE-RT has better low temperature shock resistance. During winter construction, the pipes are not susceptible to impact and rupture, which increases the flexibility of construction arrangements.
4. Environmental protection: PE-RT and PP-R can be recycled and will not pollute the environment. The PEX cannot be recycled will cause secondary pollution.
5. Stability of processing performance: PEX has the problems of controlling the degree of cross-linking and cross-linking uniformity. The processing is complicated and the processing directly affects the performance of the pipe. However, PE-RT and PP-R are easy to process, and the performance of the pipe is basically determined by the raw material, and the performance is relatively stable.
Details
Application
1. Sewage discharge pipe: PE water supply pipe has unique corrosion resistance and is suitable for the discharge of industrial wastewater and sewage. It not only has a long life, but also has low cost and maintenance costs;
2. Natural gas and coal gas pipelines: PE water supply pipes have good creep resistance and economy, and have become the only choice for natural gas pipelines;
3. Renovation of old pipes: it can be used to replace cement pipes, cast iron pipes and steel pipes, without large-scale excavation, and PE water supply pipes can be directly inserted, which is convenient for construction and low in engineering cost, especially suitable for pipeline transformation in old urban areas;
4. Landscaping pipe network: Landscaping requires a large number of water pipes. PE water supply pipes are flexible and low-cost, which is the best choice;
Certificate
Company Profile
High Mountain Pipe Industry is a specialized enterprise that produces anticorrosive plastics (pp, frpp, pe, hdpe, pvdf, pph, upvc, cpvc, abs) pipes, fittings, plates, and valves. The company has various assets of more than 61.8 million yuan, 10 pipe production lines, 2 pipe fittings production lines, and 1 sheet production line. It has a production capacity of more than 8,000 tons of various anti-corrosion plastic products. The pipe production caliber can reach 1200mm, the plate production width can reach 2000mm, and the length is unlimited. In 2006, the company passed ISO9001-2000 quality management system certification, ISO14001 environmental system certification, OHSA18001 occupational health and safety system certification, CMMI certification, and IEC27001 information security system certification.
The company adheres to the people-oriented scientific development concept, correctly grasps product development trends, implements strategic target management, is committed to developing core manufacturing advantages, optimizing resource allocation and technological breakthroughs, introducing market-oriented and refined operating systems, achieving leapfrog development, and striving to build " "Rongchengxing" brand, implement a win-win strategy, and work hard for the development of the industry!
