HDPE Water Supply Pipe Irrigation System Agriculture Farm PE Water Pipe
----------------------------------------
Basic Info.

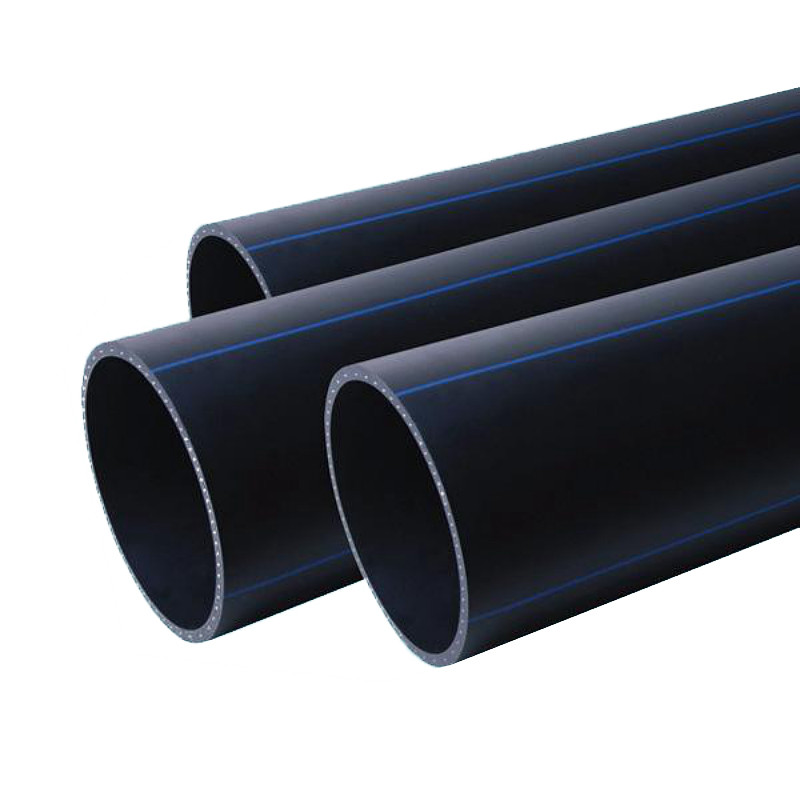

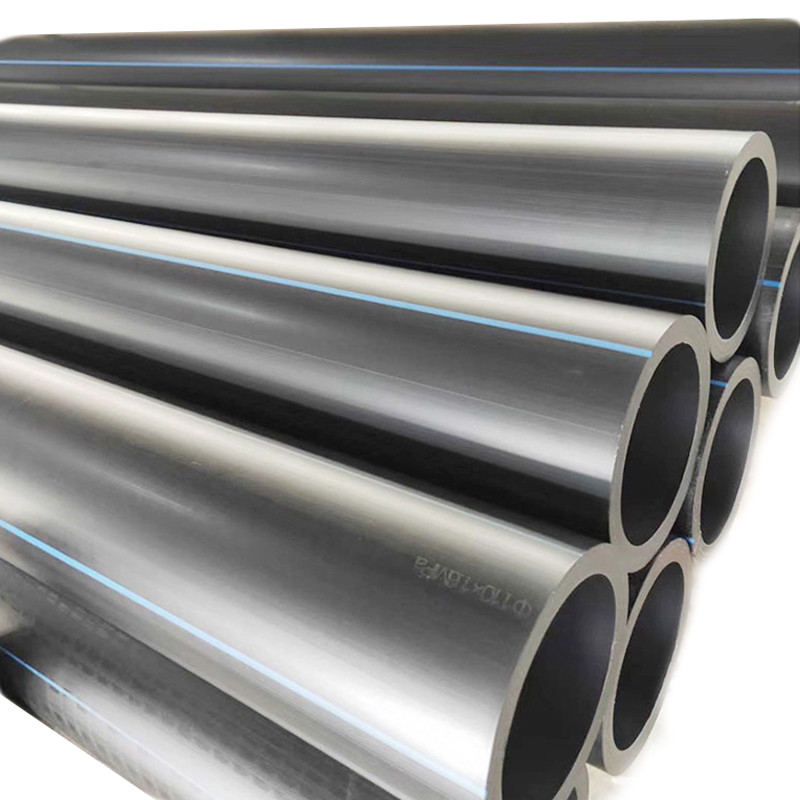

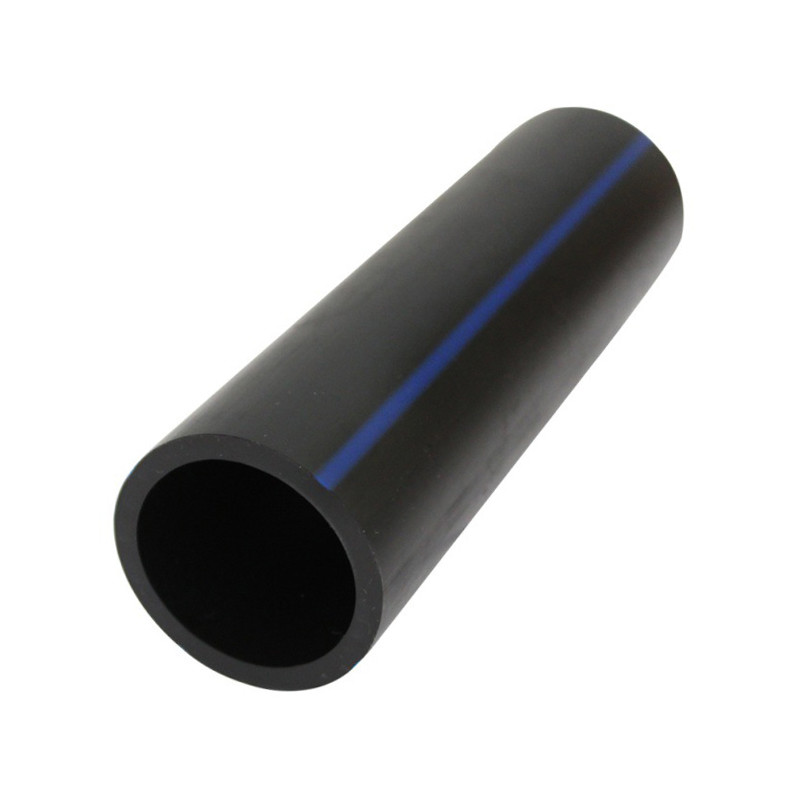

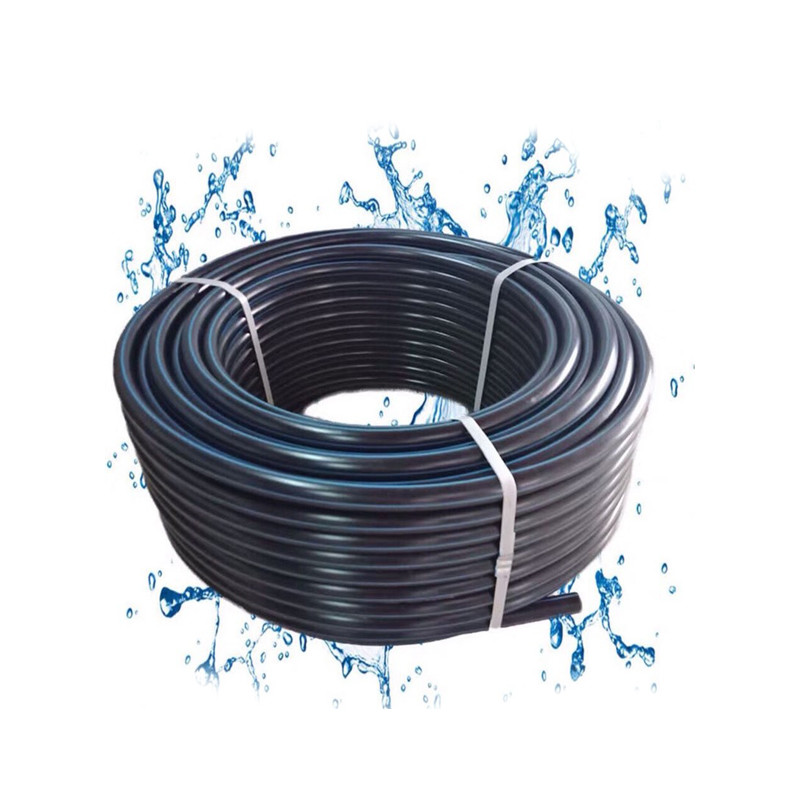

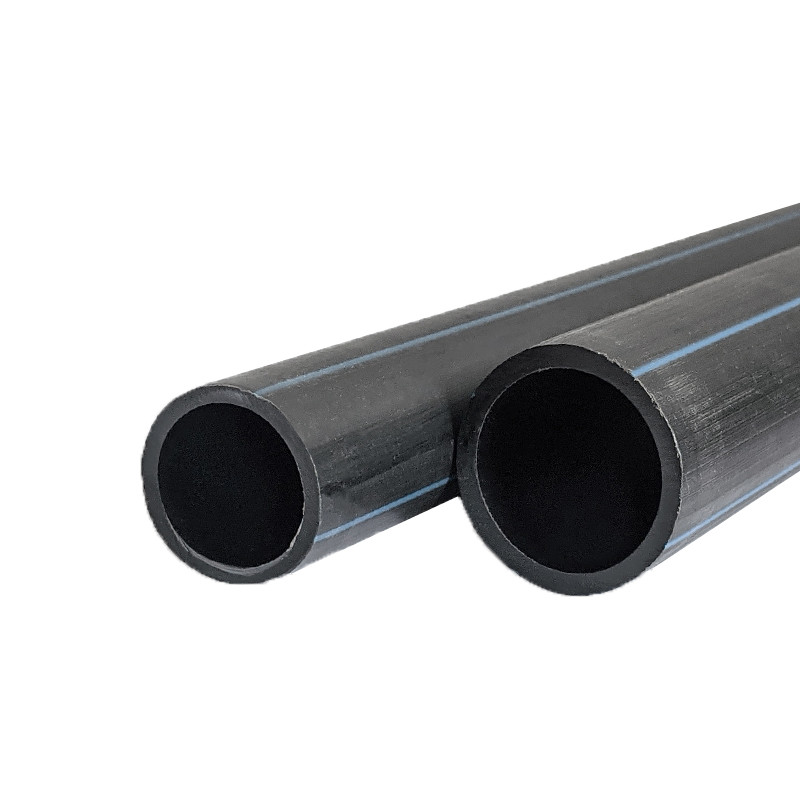

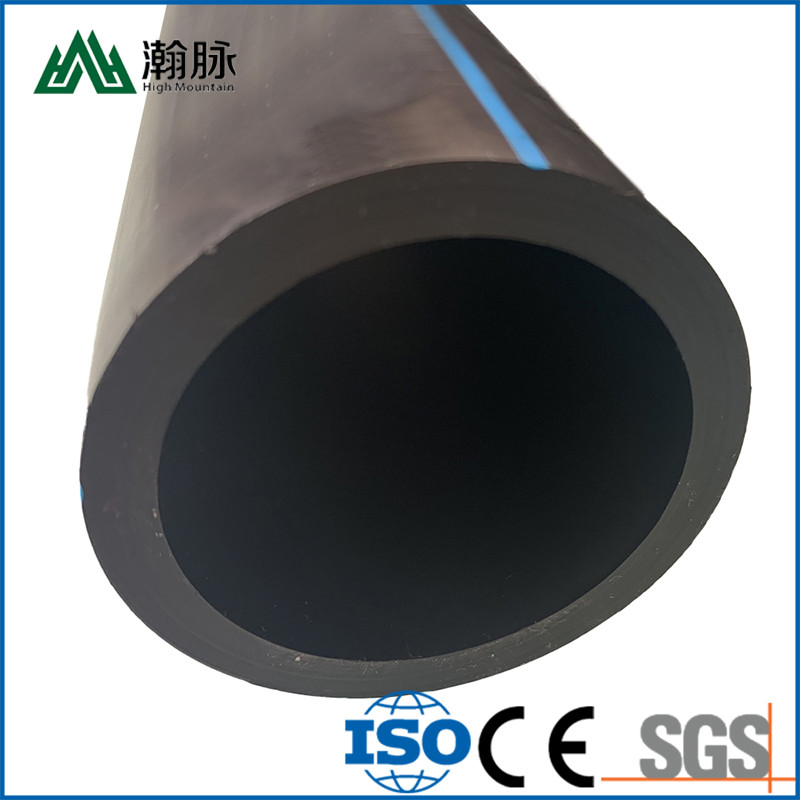

HDPE water supply pipe uses PE100 high-density polyethylene as the raw material for extrusion molding, replacing the traditional galvanized pipe, creating a new world in the water supply field.
| Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
Packing Loaded into 40GP/Piece 6m or 12m per Piece |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. High strength, excellent resistance to environmental stress cracking, and good creep resistance;
2. Good toughness, flexibility, strong adaptability to uneven foundation and dislocation, and can withstand harsh environments such as earthquakes and typhoons;
3. Has good weather resistance and long-term thermal stability;
4. Corrosion resistance, no need for anti-corrosion treatment, long service life;
5. The inner wall is smooth, the water flow resistance is small, the circulation capacity is large, and the construction cost is saved;
6. Good wear resistance and anti-wear;
7. Good low-temperature impact resistance, which can be safely affected in the temperature range of -20~40℃
Details
Application
1. City, township water pipe system: PE water supply pipe is safe, non-toxic, hygienic, and non-scaling, and has become an ideal pipe for water supply in cities and towns;
2. Natural gas and coal gas pipelines: PE water supply pipes have good creep resistance and economy, and have become the only choice for natural gas pipelines;
3. Renovation of old pipes: it can be used to replace cement pipes, cast iron pipes and steel pipes, without large-scale excavation, and PE water supply pipes can be directly inserted, which is convenient for construction and low in engineering cost, especially suitable for pipeline transformation in old urban areas;
4. Landscaping pipe network: Landscaping requires a large number of water pipes. PE water supply pipes are flexible and low-cost, which is the best choice;
5. Sewage discharge pipe: PE water supply pipe has unique corrosion resistance and is suitable for the discharge of industrial wastewater and sewage. It not only has a long life, but also has low cost and maintenance costs;
Certificate
Company Profile
High Mountain Pipe Industry is a high-tech enterprise integrating production and sales of sewage treatment equipment and municipal water supply and drainage pipelines. With a long-term vision and taking advantage of the background of Internet big data, we rely on our own production technology strength to continuously explore the transformation and upgrading strategies of traditional production enterprises, and become a new domestic "Internet + pipeline building material" production enterprise! The company integrates product development, production and sales.
FAQ
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
Q: What is your warranty policy?
A: The product is guaranteed for two years from the date of shipment (or leaving the seller's factory depending on the terms).
It is also guaranteed that the product can be used for 50 years.
