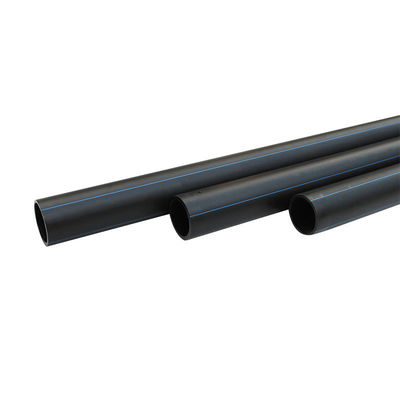

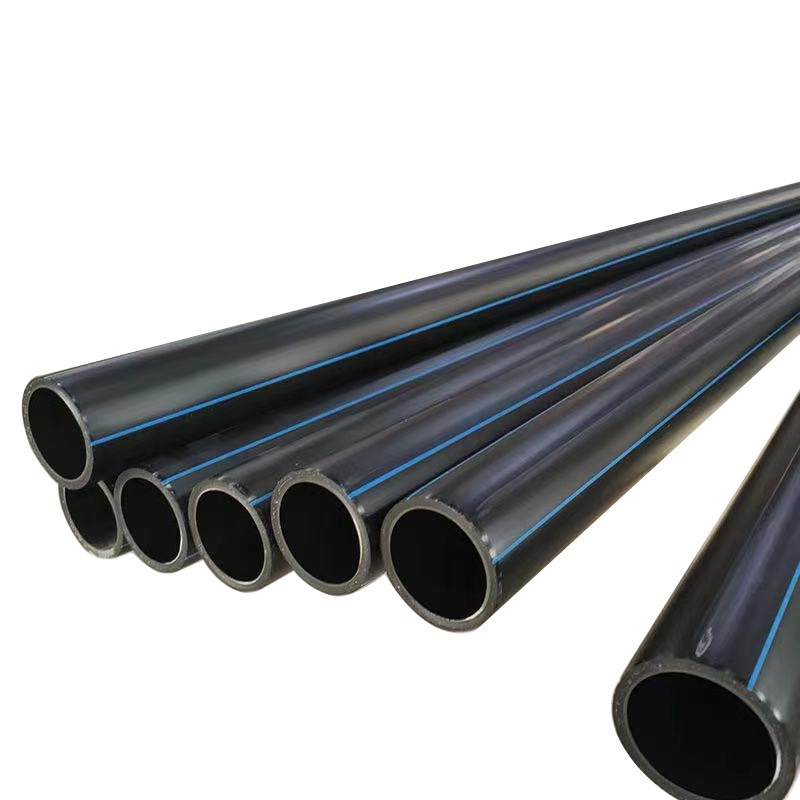

85mm 160mm 220mm 280mm 600mm 800mm HDPE Water Supply Pipes PE100 Pipe
----------------------------------------
Basic Info.
HDPE pipe is a highly crystalline, non-polar thermoplastic resin. Generally, the application range of PE pipes for water supply pipelines is below 40°C, and cannot be used for hot water delivery pipelines. The appearance of the original HDPE is milky white, and it is translucent to a certain extent in the thin section. PE pipe material has excellent resistance to most household and industrial chemicals. Certain types of chemicals are chemically aggressive, such as corrosive oxidants (concentrated nitric acid), aromatic hydrocarbons (xylene), and halogenated hydrocarbons (carbon tetrachloride).
| Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
Packing Loaded into 40GP/Piece 6m or 12m per Piece |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Good wear resistance and wear resistance;
2. It has good low temperature impact resistance and can be safely affected in the temperature range of -20~40℃;
3. Has good weather resistance (including UV resistance) and long-term thermal stability;
4. Corrosion resistance, no need for anti-corrosion treatment, long service life;
5. The inner wall is smooth, the water flow resistance is small, the flow capacity is large, and the construction cost is saved;
Details
Application
1. Industrial water pipes in gardens, irrigation and other fields
2. Building indoor water supply system
3. Outdoor buried water supply system and residential area
4. Buried water supply system in the plant
5. Old pipeline repair
6. Water treatment engineering piping system
Certificate
