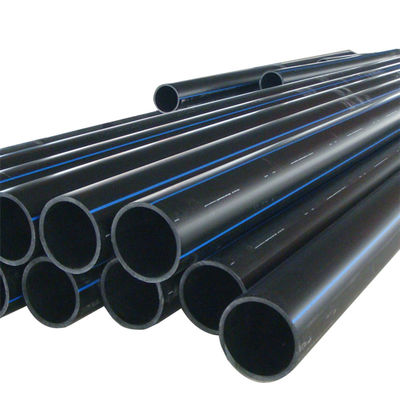

Black HDPE Pe100 Water Supply Pipe High Density Polyethylene Water Pipes
----------------------------------------
Basic Info.
PE water supply pipe is a pipe made of polyethylene (PE) material for conveying water supply. PE water supply pipe has the advantages of light weight, high strength, corrosion resistance, wear resistance, low temperature resistance, and not easy to scale, so it is widely used in water treatment, water supply, drainage and other fields.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
PE water pipes are made of high-density polyethylene (HDPE) material, which is a thermoplastic polymer that is strong, durable, and resistant to corrosion. These pipes are widely used in water supply systems due to their flexibility, toughness, and ability to withstand high pressure. They come in various sizes ranging from 20mm to 75mm, making them suitable for a wide range of applications. PE water pipes are also easy to install and maintain, making them a cost-effective option for water supply systems.
Details
Application
Greening engineering field: PE water pipes can be used in greening engineering fields, such as irrigation pipes in parks, flower beds, etc.
Cooling system: PE water pipes can be used in cooling systems, such as water pipes in air conditioning systems, cooling towers, etc.
Chemical delivery system: PE water pipes can be used in chemical delivery systems, such as acid, alkali and other chemical delivery pipelines.
Mining engineering field: PE water pipes can be used in mining engineering fields, such as water pipelines in coal mines, gold mines, etc.
Certificate
Company Profile
Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.
The company analyzes the lifestyle and aesthetic trends of modern people, integrates the concept of excellent pipeline home culture, and relies on the industry-leading integrated system of R&D, design, production, installation, and service to develop a one-stop personalized customized pipeline system solution. Provide optimized, cost-effective health products for thousands of families.
