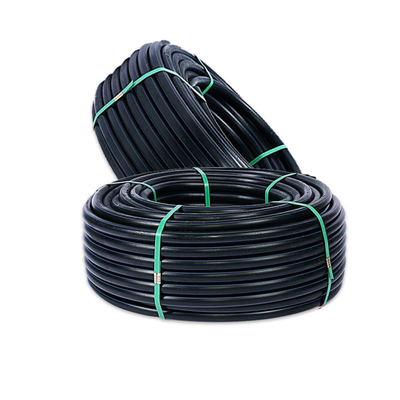

Hdpe Pipe Roll ISO9001 14001 45001 Large Size Pe Pipe Sdr11 Hdpe Water Supply Pipe
----------------------------------------
Basic Info.

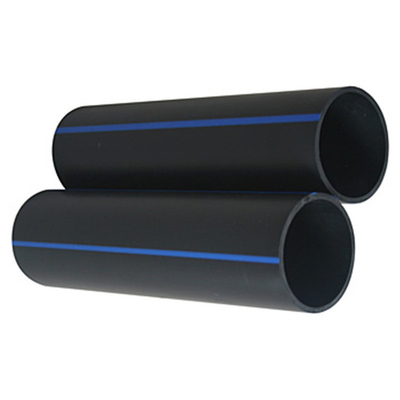

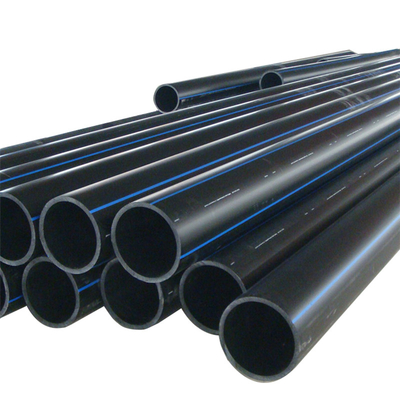

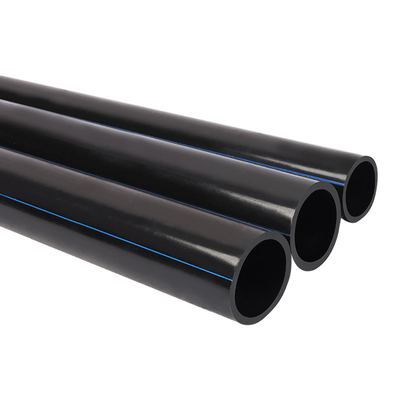

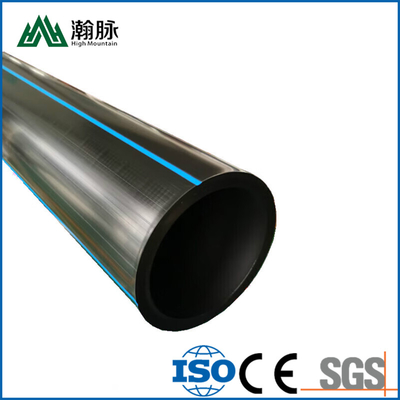

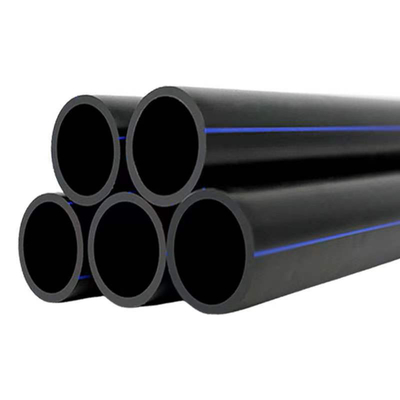

PE water pipes are made of high-density polyethylene (HDPE) material, which is a thermoplastic polymer that is strong, durable, and resistant to corrosion. These pipes are widely used in water supply systems due to their flexibility, toughness, and ability to withstand high pressure. They come in various sizes ranging from 20mm to 75mm, making them suitable for a wide range of applications. PE water pipes are also easy to install and maintain, making them a cost-effective option for water supply systems.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Pressure resistance: PE water pipes have excellent pressure resistance and can withstand water flow under high pressure, ensuring the safety of water supply and transportation.
Lightweight and high strength: PE water pipes are light in weight, high in strength, easy to transport and install, not easy to be damaged, and have a long service life.
Environmental protection and health: PE water pipes meet environmental protection standards, do not contain any harmful substances, and are harmless to human health.
Details
Application
Underground drainage system: PE water pipes can be used in underground drainage systems, such as underground drainage pipes, rainwater collection pipes, etc.
Power communication field: PE water pipes can be used in the power communication field, such as cable protection pipes, optical cable protection pipes, etc.
Construction engineering field: PE water pipes can be used in construction engineering fields, such as water pipes inside buildings, water pipes in fire protection systems, etc.
Fishery farming field: PE water pipes can be used in fishery farming fields, such as aquaculture, seaweed farming, etc.
Certificate
Company Profile
Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.
The company analyzes the lifestyle and aesthetic trends of modern people, integrates the concept of excellent pipeline home culture, and relies on the industry-leading integrated system of R&D, design, production, installation, and service to develop a one-stop personalized customized pipeline system solution. Provide optimized, cost-effective health products for thousands of families.
FAQ
Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.
Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.
