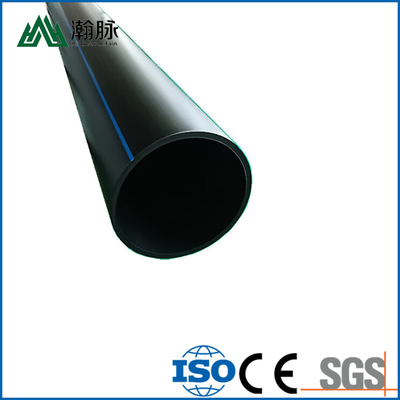

Black Hdpe Water Supply Pipe Rolls 2 Inch 4 Inch Plastic Irrigation Pipe Price For Cold Water
----------------------------------------
Basic Info.
In recent years, with the application of HDPE pipe more and more widely. Density alone cannot accurately reflect the essential performance of PE as a pipe. At present, the unified classification method is to classify the pipe and its raw materials according to the long-term hydrostatic strength of the PE pipe, which is divided into PE 32, PE 40, and PE 63. PE80, PE100. Among them, the PE 80 and PE 100 grade pipes can be used to transport gas, while the pipes below the PE 63 grade are mainly used for hot water pipes and sewage and irrigation pipes.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Price advantage: Compared with water pipelines made of other materials, the price of PE water pipes is more favorable, so it has a certain price advantage.
Low temperature resistance: PE water pipes have excellent low temperature resistance and will not crack or deform even in extremely cold environments.
Good wear resistance: PE water pipes have good wear resistance and are not easy to wear even under high-speed flow conditions.
Good heat resistance: PE water pipes can withstand high temperatures within a certain range without melting or deforming, so they are suitable for water delivery applications in some high-temperature environments.
Details
Application
Underground drainage system: PE water pipes can be used in underground drainage systems, such as underground drainage pipes, rainwater collection pipes, etc.
Power communication field: PE water pipes can be used in the power communication field, such as cable protection pipes, optical cable protection pipes, etc.
Construction engineering field: PE water pipes can be used in construction engineering fields, such as water pipes inside buildings, water pipes in fire protection systems, etc.
Fishery farming field: PE water pipes can be used in fishery farming fields, such as aquaculture, seaweed farming, etc.
Certificate
Company Profile
Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.
The company analyzes the lifestyle and aesthetic trends of modern people, integrates the concept of excellent pipeline home culture, and relies on the industry-leading integrated system of R&D, design, production, installation, and service to develop a one-stop personalized customized pipeline system solution. Provide optimized, cost-effective health products for thousands of families.
FAQ
Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.
Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.
