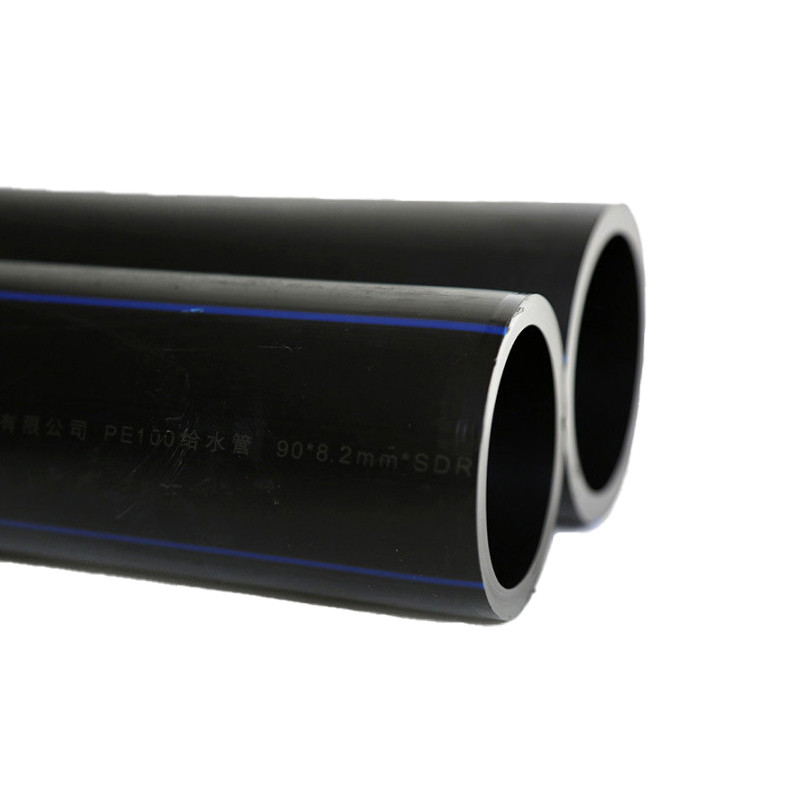

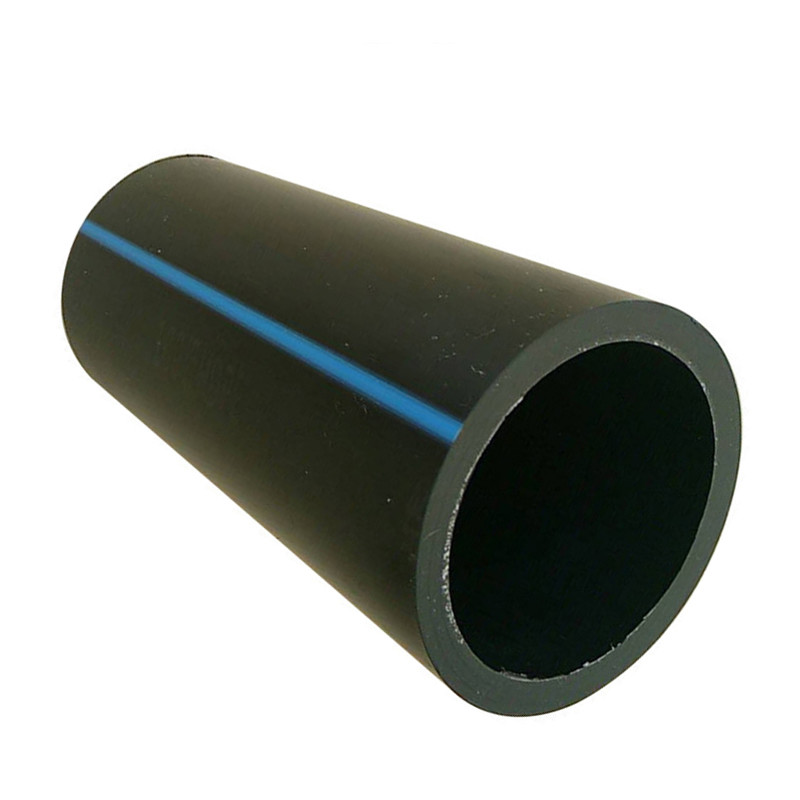

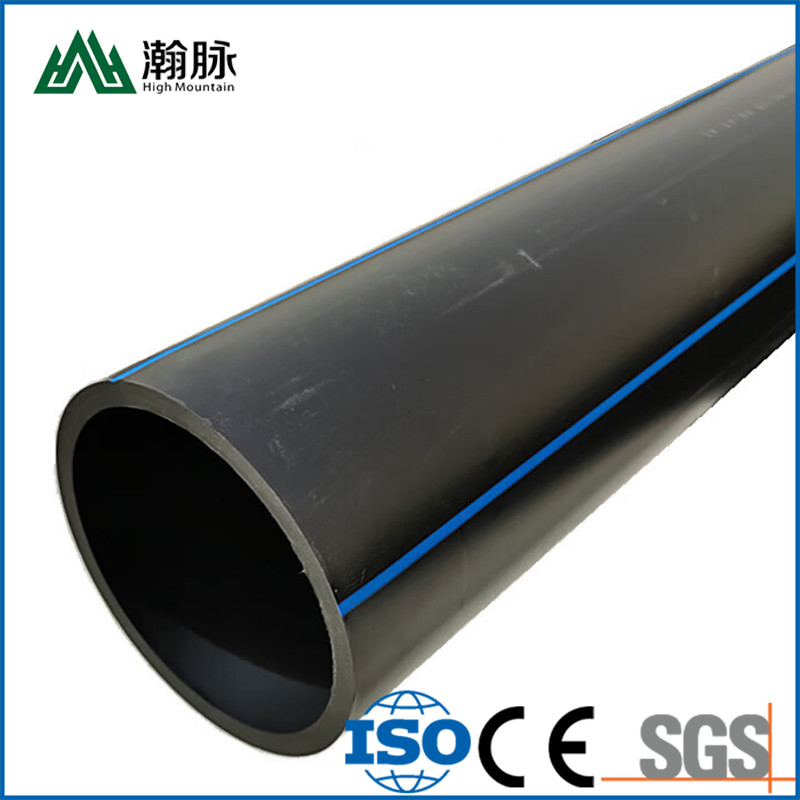

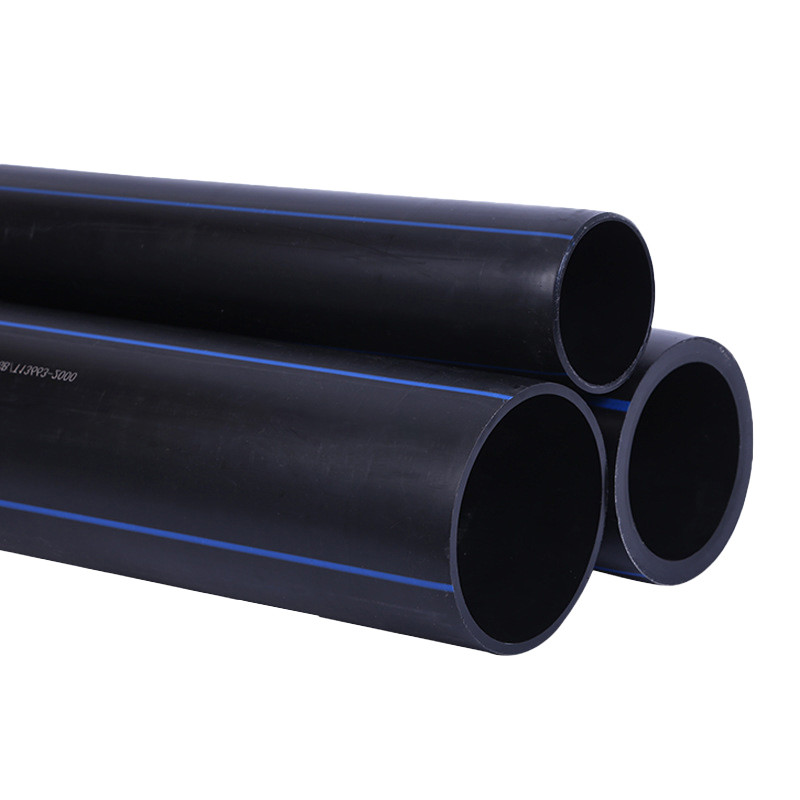

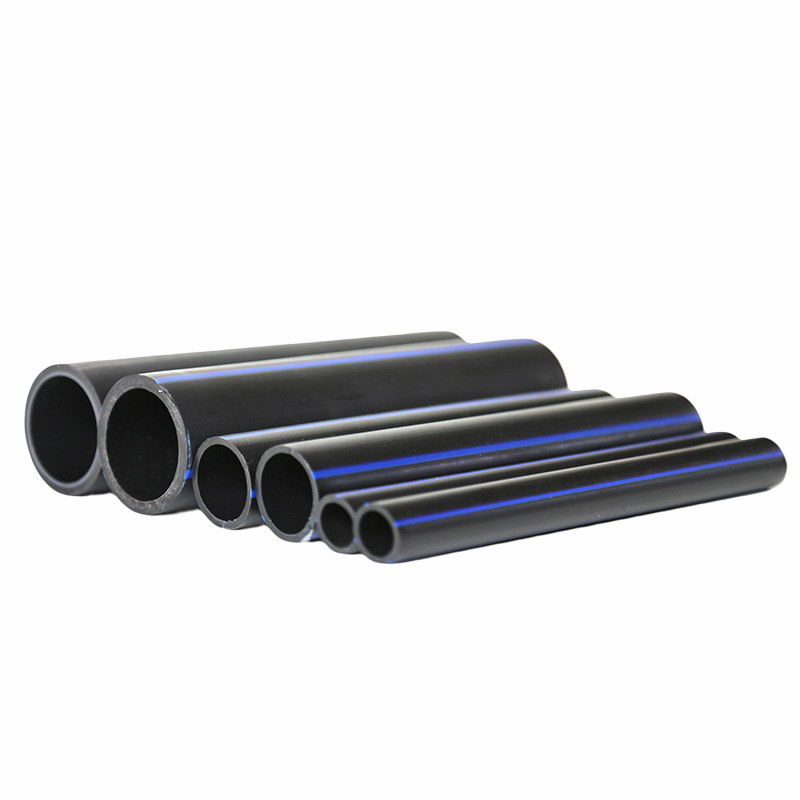

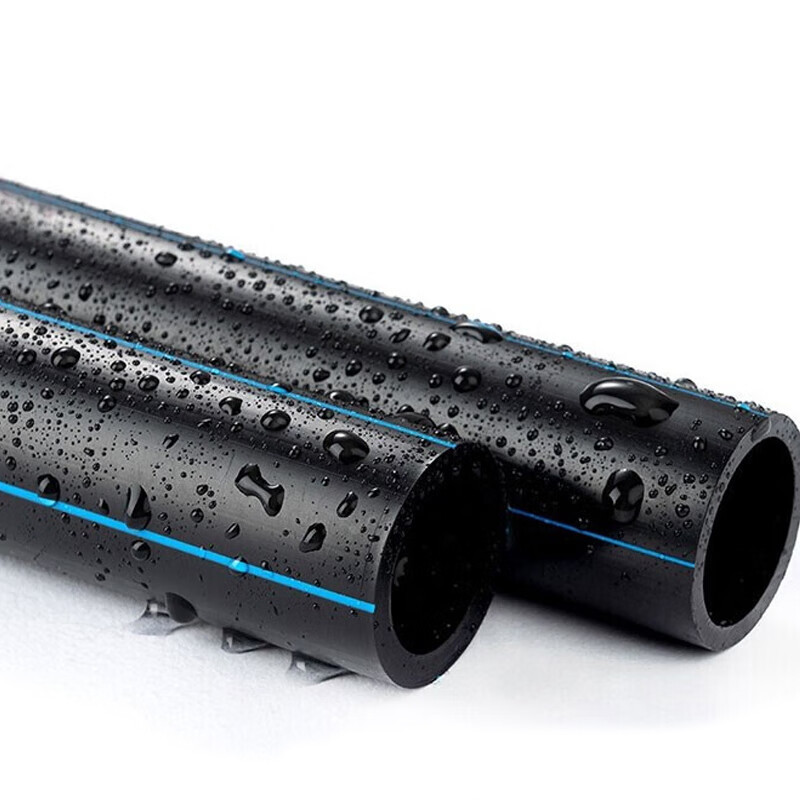

Pe100 Water Supply Pipe Pn8 Water Irrigation Pipe With Blue Stripe Hdpe Pipe
----------------------------------------
Basic Info.
HDPE is a very common material, that is, high-density polyethylene. HD means high-density, so the name implies. It is harder than ordinary PE plastic, milky white, has good chemical stability, and has a certain high and low temperature resistance. If the process is hygienic, it is a relatively "clean" material. HDPE water supply pipes and PE water supply pipes are both PE pipe fittings. HDPE is high-density polyethylene, and PE is polyethylene. That's the difference. But the physical properties are different.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Price advantage: Compared with water pipelines made of other materials, the price of PE water pipes is more favorable, so it has a certain price advantage.
Low temperature resistance: PE water pipes have excellent low temperature resistance and will not crack or deform even in extremely cold environments.
Good wear resistance: PE water pipes have good wear resistance and are not easy to wear even under high-speed flow conditions.
Good heat resistance: PE water pipes can withstand high temperatures within a certain range without melting or deforming, so they are suitable for water delivery applications in some high-temperature environments.
Details
Application
Agricultural irrigation field: PE water pipes can be used in agricultural irrigation fields, such as water pipelines for field irrigation, fruit tree irrigation, etc.
Industrial wastewater treatment field: PE water pipes can be used in the field of industrial wastewater treatment, such as water pipelines in industrial wastewater treatment systems.
Military field: PE water pipes can be used in the military field, such as water pipelines for military ships, military aircraft, etc.
Certificate
Company Profile
Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.
The company analyzes the lifestyle and aesthetic trends of modern people, integrates the concept of excellent pipeline home culture, and relies on the industry-leading integrated system of R&D, design, production, installation, and service to develop a one-stop personalized customized pipeline system solution. Provide optimized, cost-effective health products for thousands of families.
FAQ
Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.
Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.
