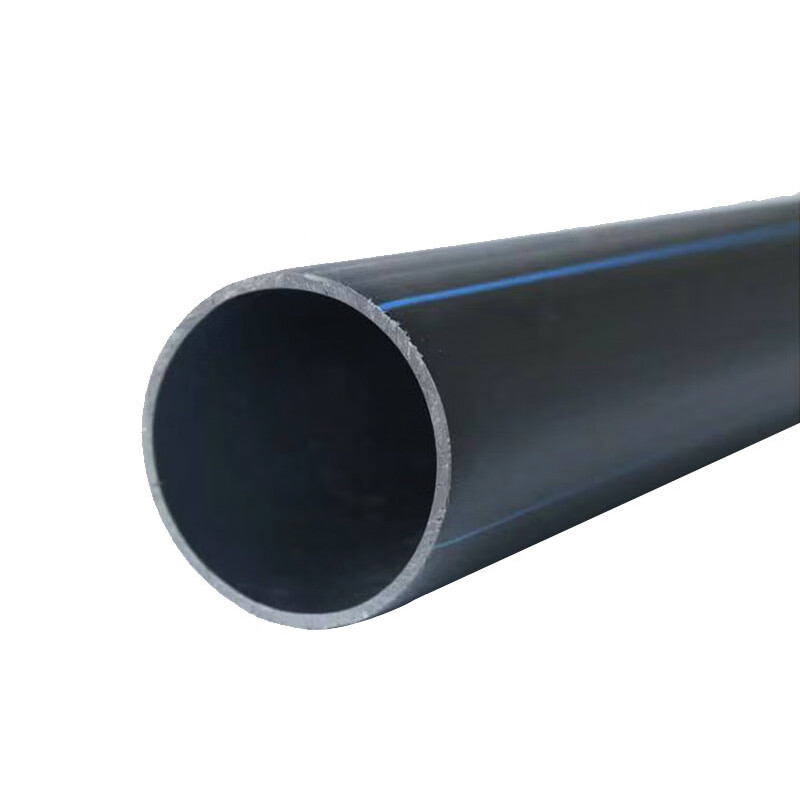

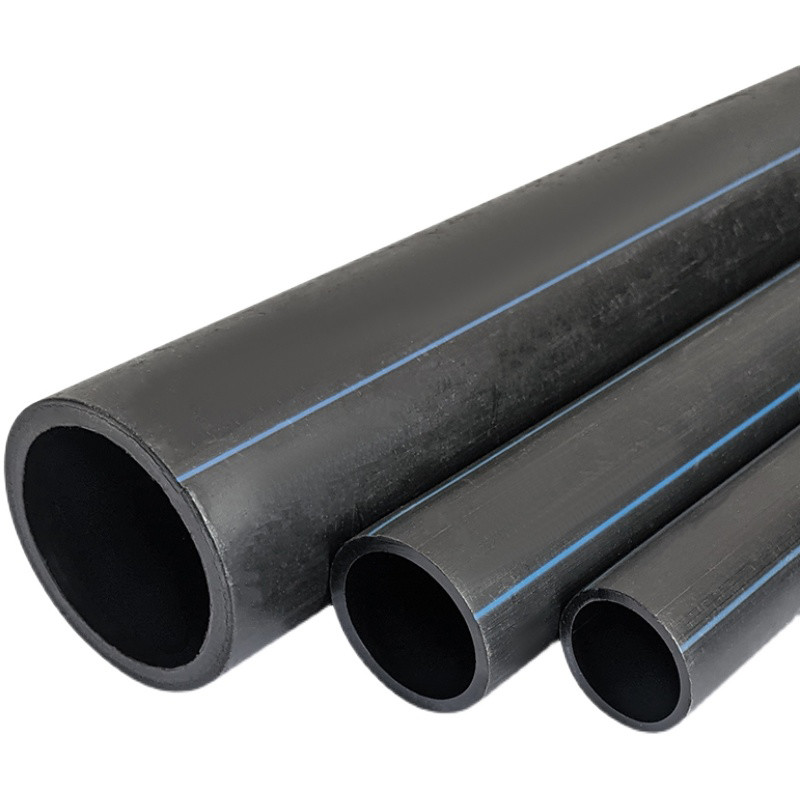

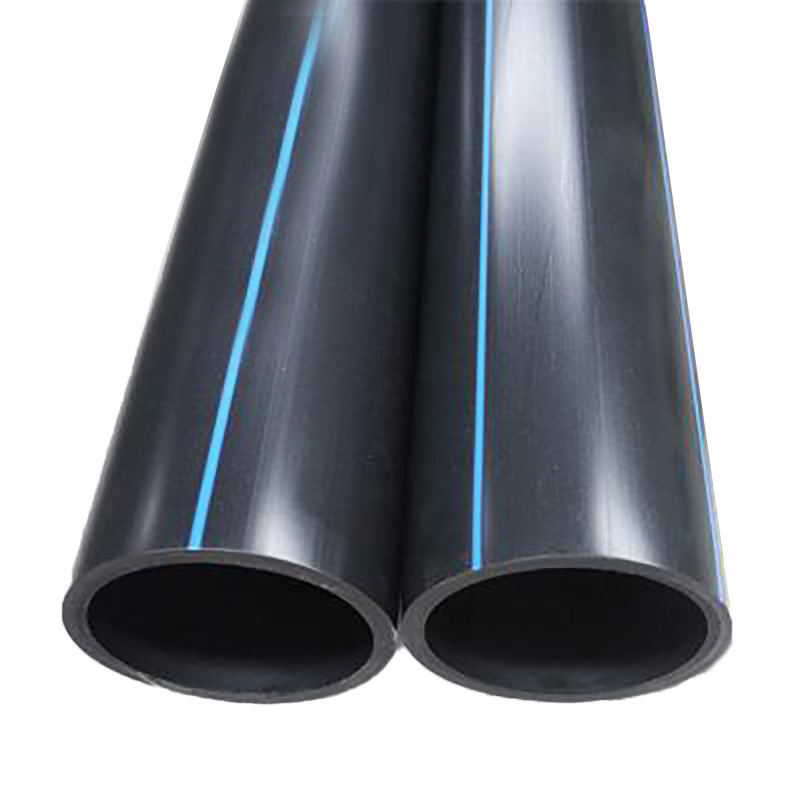

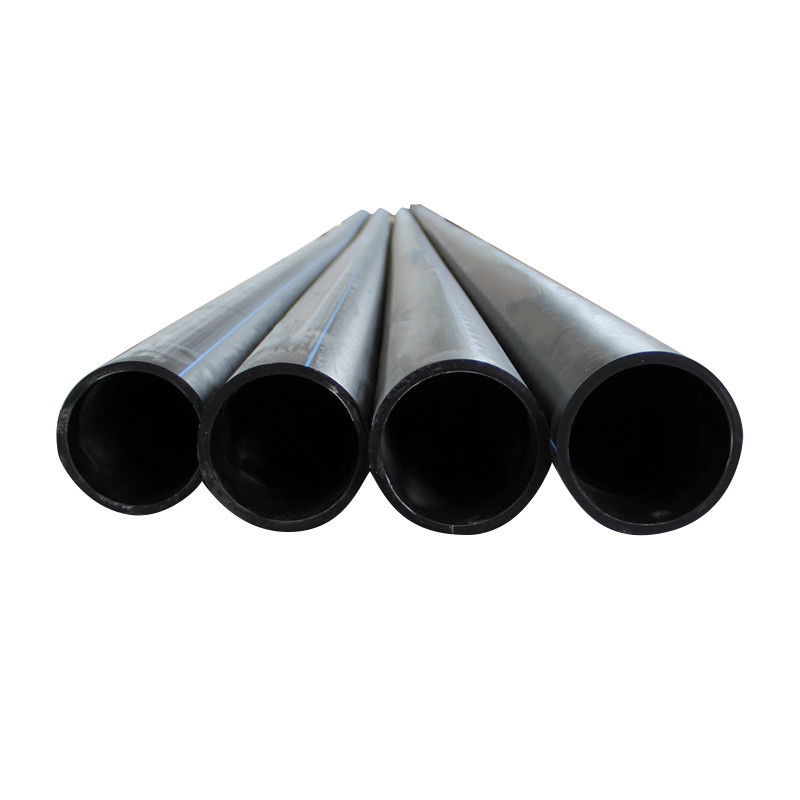

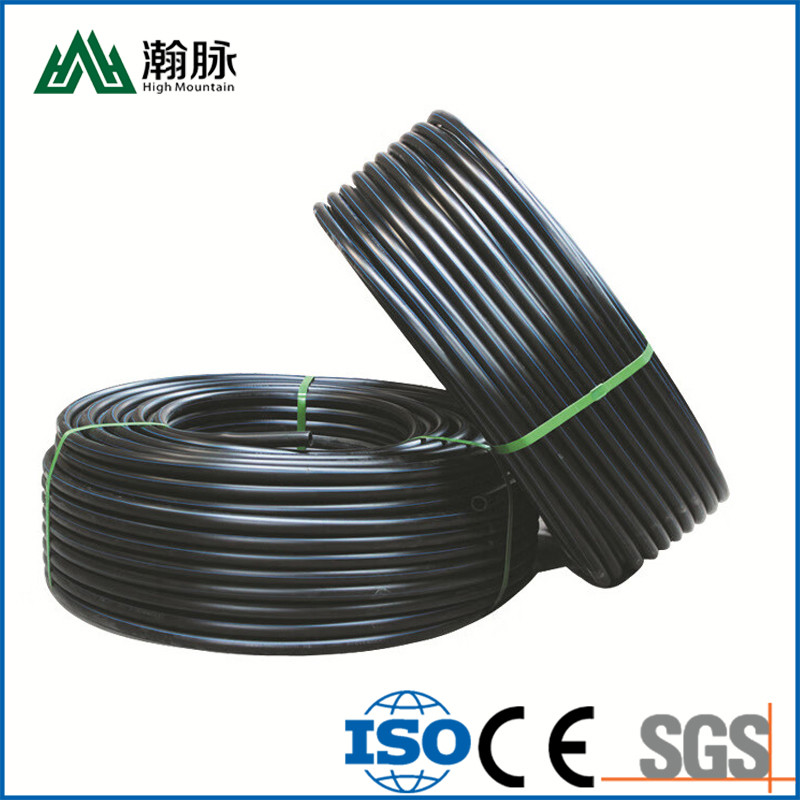

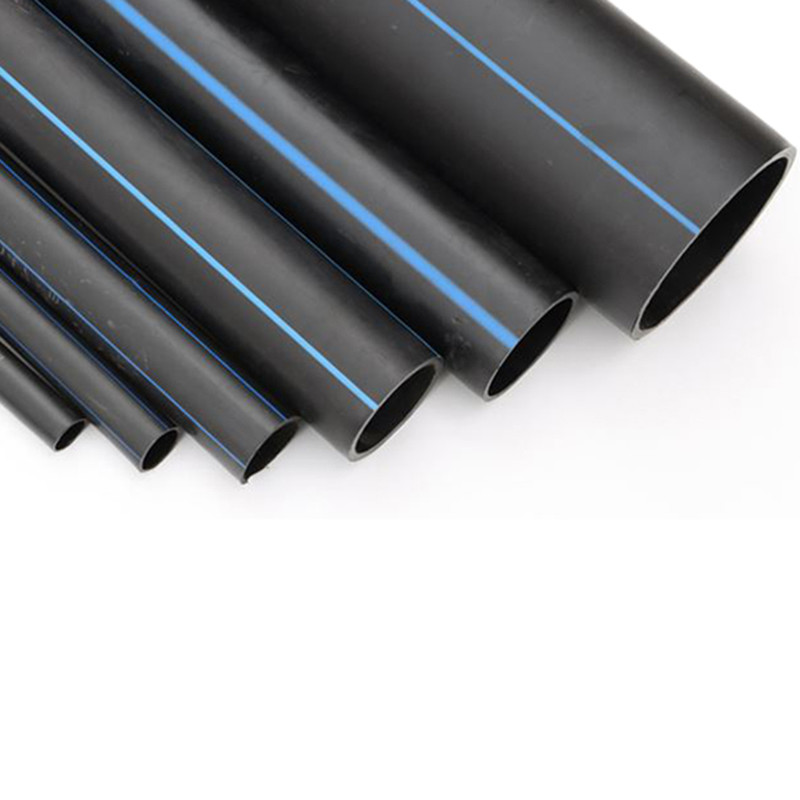

ISO Standard Hdpe Potable Water Pipe Pn10 Supply Pipe 75mm

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
ISO Standard Hdpe Potable Water Pipe Pn10 Supply Pipe 75mm
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: BAILUN
Model Number: Pe Water Pipe
Specification: DN20-DN1100mm
Color: White Or At Request
Usage: Water Supply
Raw Material: PE
Size: Customized Size
Working Pressure: 1.25mpa-2.5mpa
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
High Light:

ISO Standard Hdpe Potable Water Pipe

,

Pn10 Water Supply Pipe

,

75mm Water Supply Pipe

Basic Infomation
Place of Origin: China
Certification: ISO9001,14001,45001
Payment & Shipping Terms
Packaging Details: 100m or 40m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

ISO Standard Hdpe Potable Water Pipe Manufacture Pn10 Supply Pipe 75mm

----------------------------------------

Basic Info.

HDPE pipes are widely used in building water supply, building drainage, buried drainage pipes, building heating, gas transmission pipes, welding and telecommunications maintenance casings, industrial pipes, and agricultural pipes because of their unique advantages. Wait. Its key applications are urban water supply, urban gas supply, farmland irrigation and other industries. PE (polyethylene) raw materials are widely used in the water supply pipe manufacturing industry because of their high strength, corrosion resistance, and non-toxic properties; because it is not easy Rust, therefore, is an ideal pipe to replace ordinary iron water supply pipes.

Size   PN2.0MPa PN1.6MPa PN1.25MPa PN1.0MPa PN0.8MPa PN0.6MPa
    SDR 9 SDR 11 SDR 13.6 SDR 17 SDR 21 SDR 26
OD(inch) OD(mm) thickness thickness thickness thickness thickness thickness
1/2 20 2.3 2.3
3/4 25 3 2.3 2.3
1 32 3.6 3 2.4
1 1/4 40 4.5 3.7 3 2.4
1 1/2 50 5.6 4.6 3.7 3
2 63 7.1 5.8 4.7 3.8
2.5 75 8.4 6.8 5.6 4.5
3 90 10.1 8.2 6.7 5.4 4.3
4 110 12.3 10 8.1 6.6 5.3 4.2
5 125 14 11.4 9.2 7.4 6 4.8
5 140 15.7 12.7 10.3 8.3 6.7 5.4
6 160 17.9 14.6 11.8 9.5 7.7 6.2
7 180 20.1 16.4 13.3 10.7 8.6 6.9
8 200 22.4 18.2 14.7 11.9 9.6 7.7
8 225 25.2 20.5 16.6 13.4 10.8 8.6
10 250 27.9 22.7 18.4 14.8 11.9 9.6
11 280 31.3 25.4 20.6 16.6 13.4 10.7
12 315 35.2 28.6 23.2 18.7 15 12.1
14 355 39.7 32.2 26.1 21.1 16.9 13.6
16 400 44.7 36.3 29.4 23.7 19.1 15.3
18 450 50.3 40.9 33.1 26.7 21.5 17.2
20 500 55.8 45.4 36.8 29.7 23.9 19.1
22 560 62.5 50.8 41.2 33.2 26.7 21.4
24 630 70.3 57.2 46.3 37.4 30 24.1
28 710 79.3 64.5 52.2 42.1 33.9 27.2
32 800 89.3 72.6 58.8 47.4 38.1 30.6
36 900   81.8 66.2 53.3 42.9 34.4
40 1000   90.2 72.5 59.3 47.7 38.2
48 1200     88.2 67.9 57.2 45.9
55 1400     102.9 82.4 66.7 53.5
60 1500     110.2 88.2 71.4 57.6
65 1600     117.6 94.1 76.2 61.2



Advantage

1. Good wear resistance and wear resistance;
2. It has good low temperature impact resistance and can be safely affected in the temperature range of -20~40℃;

3. Good toughness and flexibility, strong adaptability to uneven foundation and dislocation, and can withstand harsh environments such as earthquakes and typhoons;
4. Has good weather resistance (including UV resistance) and long-term thermal stability;
5. Corrosion resistance, no need for anti-corrosion treatment, long service life;
6. The inner wall is smooth, the water flow resistance is small, the flow capacity is large, and the construction cost is saved;



Details

ISO Standard Hdpe Potable Water Pipe Pn10 Supply Pipe 75mm 0ISO Standard Hdpe Potable Water Pipe Pn10 Supply Pipe 75mm 1ISO Standard Hdpe Potable Water Pipe Pn10 Supply Pipe 75mm 2ISO Standard Hdpe Potable Water Pipe Pn10 Supply Pipe 75mm 3



Application

1. Renovation of old pipes: it can be used to replace cement pipes, cast iron pipes and steel pipes, without large-scale excavation, and PE water supply pipes can be directly inserted, which is convenient for construction and low in engineering cost, especially suitable for pipeline transformation in old urban areas;

2. City, township water pipe system: PE water supply pipe is safe, non-toxic, hygienic, and non-scaling, and has become an ideal pipe for water supply in cities and towns;
3. Natural gas and coal gas pipelines: PE water supply pipes have good creep resistance and economy, and have become the only choice for natural gas pipelines;



Certificate

ISO Standard Hdpe Potable Water Pipe Pn10 Supply Pipe 75mm 4

ISO Standard Hdpe Potable Water Pipe Pn10 Supply Pipe 75mm 5

ISO Standard Hdpe Potable Water Pipe Pn10 Supply Pipe 75mm 6

Company Profile

Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.



The company analyzes the lifestyle and aesthetic trends of modern people, integrates the concept of excellent pipeline home culture, and relies on the industry-leading integrated system of R&D, design, production, installation, and service to develop a one-stop personalized customized pipeline system solution. Provide optimized, cost-effective health products for thousands of families.



ISO Standard Hdpe Potable Water Pipe Pn10 Supply Pipe 75mm 7     ISO Standard Hdpe Potable Water Pipe Pn10 Supply Pipe 75mm 8

ISO Standard Hdpe Potable Water Pipe Pn10 Supply Pipe 75mm 9     ISO Standard Hdpe Potable Water Pipe Pn10 Supply Pipe 75mm 10



FAQ

Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.



Q: How to buy products?
A: Send an email to us and we will get back to you within one day.



Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.
