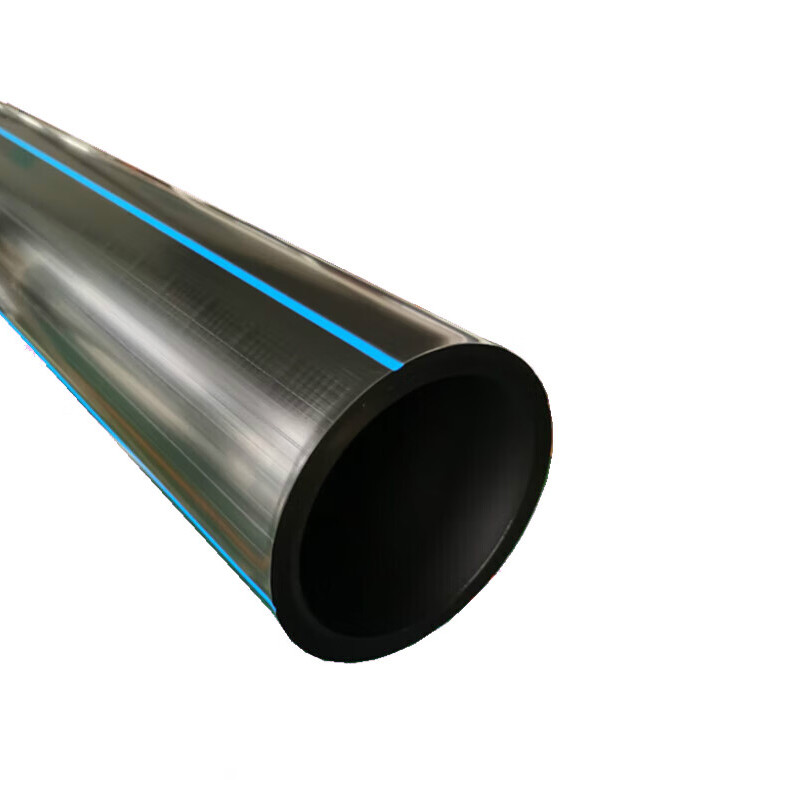

HDPE Water Supply Pipes For Potable Water Systems Hdpe 32mm Pipe
----------------------------------------
Basic Info.
In recent years, with the application of HDPE pipe more and more widely. Density alone cannot accurately reflect the essential performance of PE as a pipe. At present, the unified classification method is to classify the pipe and its raw materials according to the long-term hydrostatic strength of the PE pipe, which is divided into PE 32, PE 40, and PE 63. PE80, PE100. Among them, the PE 80 and PE 100 grade pipes can be used to transport gas, while the pipes below the PE 63 grade are mainly used for hot water pipes and sewage and irrigation pipes.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | |
| OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 20 | 2.3 | 2.3 | ||||
| 25 | 3.0 | 2.3 | 2.3 | |||
| 32 | 3.6 | 3.0 | 2.4 | |||
| 40 | 4.5 | 3.7 | 3.0 | 2.4 | ||
| 50 | 5.6 | 4.6 | 3.7 | 3.0 | ||
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 110 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 |
| 125 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 |
| 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Excellent corrosion resistance, better hygiene performance and longer service life
2. Unique flexibility and excellent scratch resistance
3. Very outstanding low temperature resistance
4. Good fracture toughness with rapid crack growth
5. Corrosion resistance: PE is an inert material and can withstand various chemical media.
6. No leakage: PE pipe adopts electrofusion connection, and its interface strength is higher than the pipe itself.
7. High toughness: The elongation at break of PE pipe is generally above 500%.For the uneven settlement of the base layer, its adaptability is very strong and the seismic performance is good.
Details
Application
1. Urban and rural water supply pipeline system
The urban and rural water supply system is an integral part of the entire urban and rural planning, and generally consists of water sources, water supply pipelines, water plants, and water supply networks. After the water is drawn from the water source, the treated water is sent to the water plant for water quality treatment, and the pressurized water is delivered to the user through the water distribution network. HDPE water supply pipes have good wear resistance and mechanical strength, and have strong temperature adaptability, which can work normally in the environment of -40°+95°.
2. Urban gas pipelines
Because HDPE gas special pipeline has strong impact resistance and toughness. Gradually replace cast iron pipes for urban and rural gas transmission projects. The urban gas pipeline network must not only ensure uninterrupted and reliable supply of gas to users, ensure the safe operation and management of the system, and facilitate maintenance and maintenance, but also consider closing some pipe sections without affecting the work of other systems during maintenance or failure. Therefore, it is necessary to select different pressure levels in the urban gas network system.
Certificate
Company Profile
Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.
