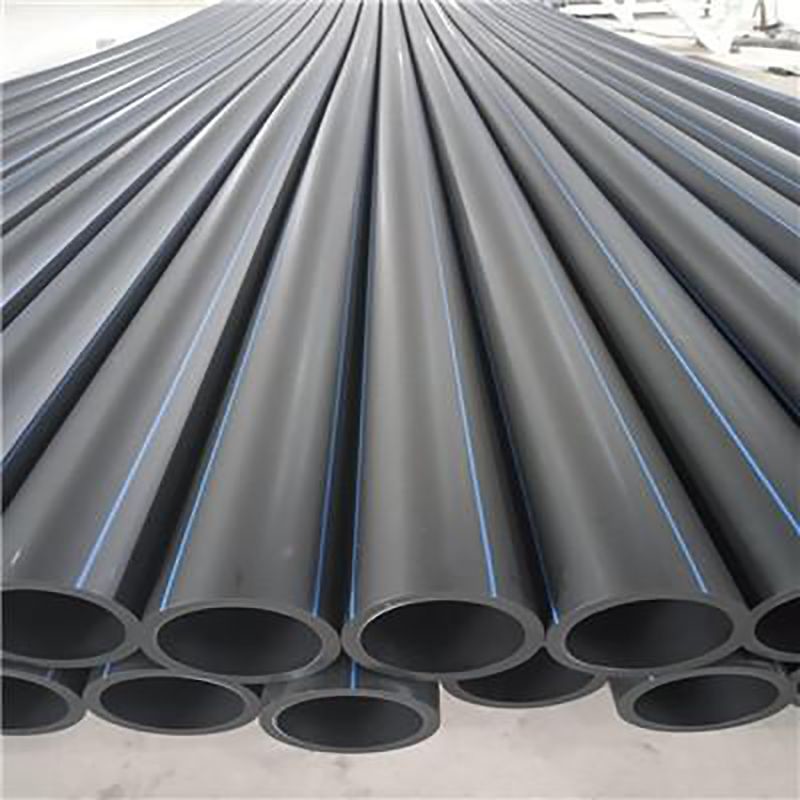

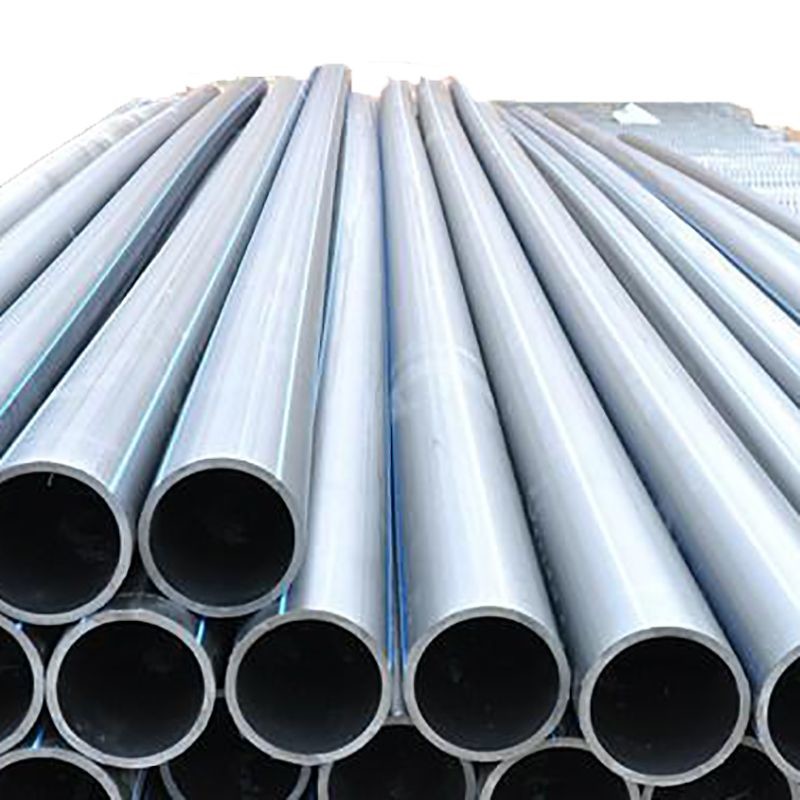

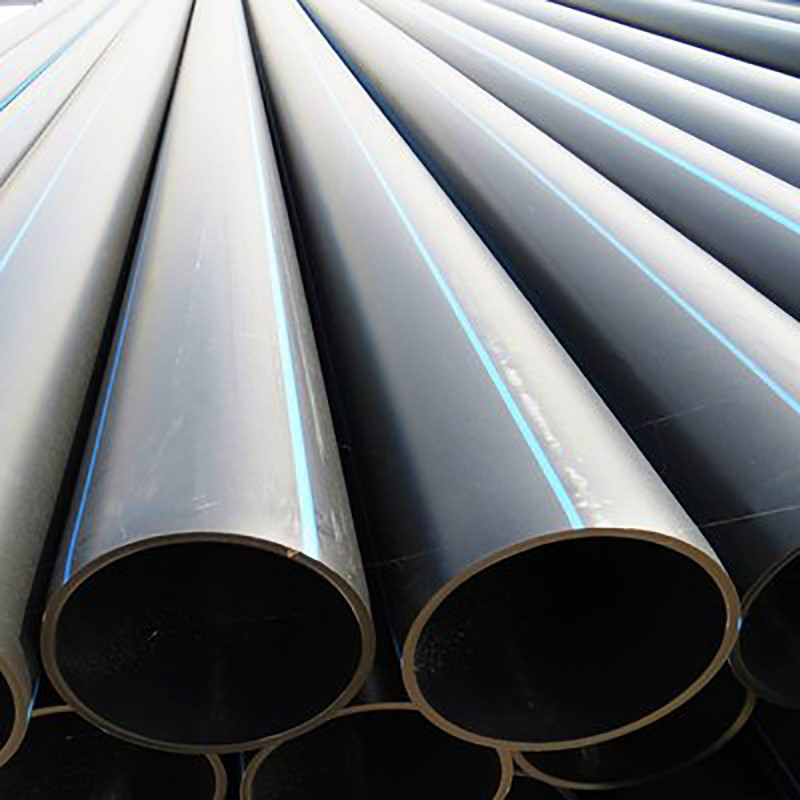

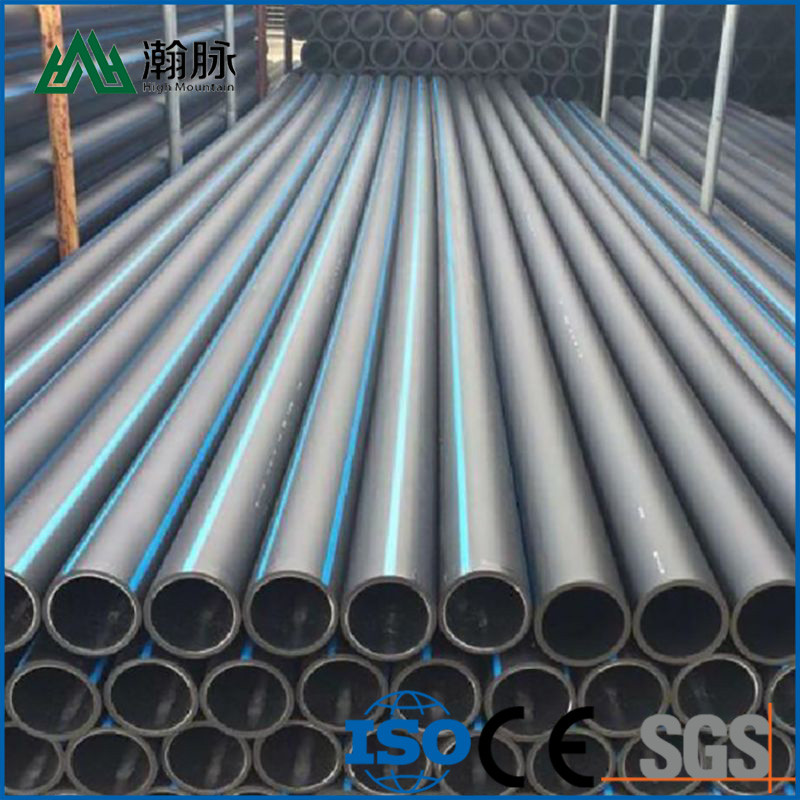

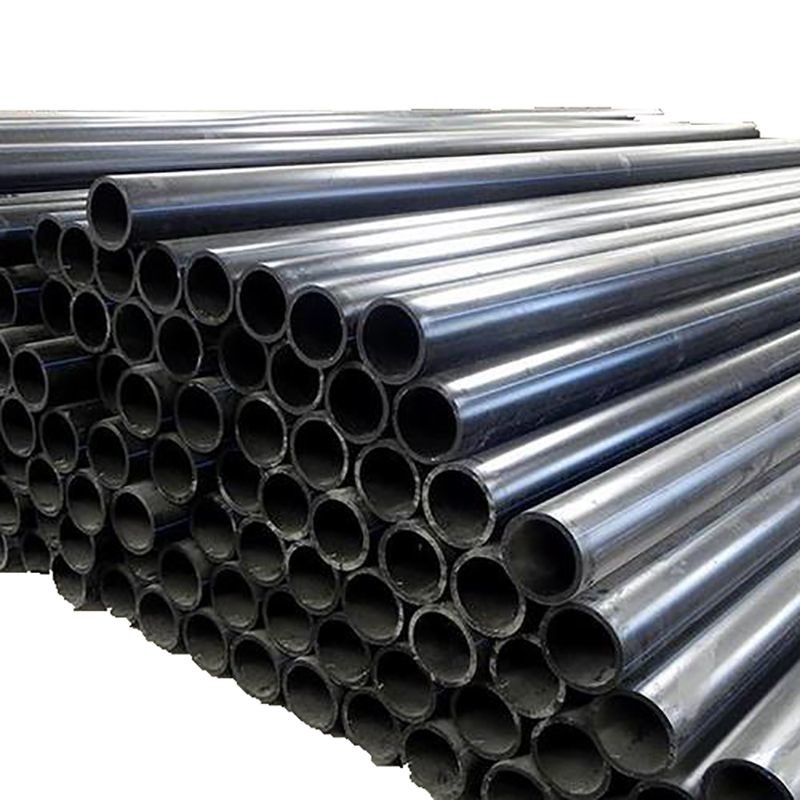

12-Inch High-Density Polyethylene Water Supply Pipe Suitable For Large-Scale Water Supply
----------------------------------------
Basic Info.
The main features of HDPE pipes are: good toughness and flexibility; small friction coefficient and strong passing ability; convenient construction, good chemical stability, long service life, suitable deflection, good resistance to rapid crack transmission, resistance to Low temperature, conform to the requirements of the times, "green" environmental protection.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Good chemical stability: HDPE molecules have no polarity, good chemical stability, no growth of algae and bacteria, no fouling, and are environmentally friendly products.
2. Good connection strength: Socket electric fusion or butt joint thermal fusion is adopted, with few joints and no leakage.
3. Low water flow resistance: The inner surface of HDPE pipe is smooth, with low friction coefficient and large flow.
4. Good resistance to low-temperature brittleness: the brittleness temperature is (-40℃), and special protective measures are not required for construction under general low-temperature conditions (0℃).
5. Good abrasion resistance: The comparison test of the abrasion resistance of HDPE pipes and steel pipes shows that the abrasion resistance of HDPE pipes is 4 times that of steel pipes.
6. Strong pressure resistance: It has good impact resistance, even if there is a water hammer 2.5 times the nominal pressure, it will not cause any damage to the pipeline.
7. Anti-aging and long service life: HDPE pipes can be stored or used outdoors for 50 years without being damaged by ultraviolet radiation.
Details
Application
Irrigation: HDPE pipes are commonly employed in agricultural irrigation systems due to their flexibility, durability, and resistance to chemicals. They provide a reliable and cost-effective solution for transporting water to crops.
Mining: In the mining industry, HDPE pipes are used for transporting slurry, tailings, and other mining fluids. Their durability and resistance to abrasion make them suitable for harsh mining environments.
Industrial Applications: HDPE pipes serve various industrial purposes, including the transport of chemicals, acids, and other corrosive substances. Their chemical resistance and high strength make them suitable for a range of industrial processes.
Certificate
Company Profile
High Mountain Pipe is a production enterprise focusing on core technology of pipelines.
The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.
The company adheres to the corporate culture concept of "Quality is as good, integrity is prosperous", relying on an effective quality management system, to provide customers with reliable product quality and high-quality technical services. In the new era of economic development, we are committed to the goal of "founding a first-class enterprise, producing first-class products, creating a first-class environment, and cultivating first-class talents", and develop together with domestic and foreign counterparts and related industries to create brilliant!
