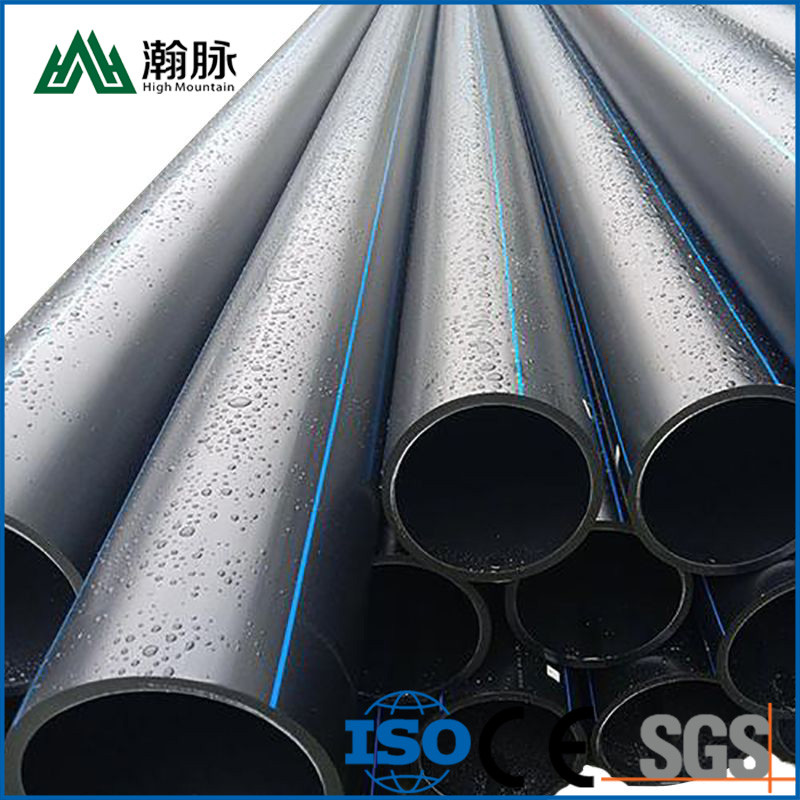

HDPE Water Supply Pipes Application Of Corrosion-Resistant HDPE Pipes In Engineering
----------------------------------------
Basic Info.
HDPE pipes are widely used in building water supply, building drainage, buried drainage pipes, building heating, gas transmission pipes, welding and telecommunications maintenance casings, industrial pipes, and agricultural pipes because of their unique advantages. Wait. Its key applications are urban water supply, urban gas supply, farmland irrigation and other industries. PE (polyethylene) raw materials are widely used in the water supply pipe manufacturing industry because of their high strength, corrosion resistance, and non-toxic properties; because it is not easy Rust, therefore, is an ideal pipe to replace ordinary iron water supply pipes.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Environmentally friendly materials
The raw material of HDPE pipe mainly comes from polyethylene in Sinopec, which is non-toxic, odorless and non-corrosive. It does not decompose harmful substances in the production process. It is recyclable and easy to process, which is in line with the national policy of developing circular economy.
2. High dielectric strength
HDPE pipe has strong dielectric properties, especially high insulation dielectric strength, especially suitable for wires and cables.
3. Crack resistance
HDPE pipe is stable in structure, not easy to be damaged and cracked, and has a low price. It can effectively reduce noise. It has been gradually applied in building wiring, household appliances, communication equipment, etc.
Details
Application
1. Landscaping pipe network: Landscaping requires a large number of water pipes. PE water supply pipes are flexible and low-cost, which is the best choice;
2. Sewage discharge pipe: PE water supply pipe has unique corrosion resistance and is suitable for the discharge of industrial wastewater and sewage. It not only has a long life, but also has low cost and maintenance costs;
3. Mine mortar transportation: PE water supply pipes have high-strength compression resistance, wear resistance and corrosion resistance, and can be used for ore transportation and mud transportation for river dredging.
4. Agricultural irrigation pipes: PE water supply pipes have smooth inner walls, large flow capacity, and good impact resistance. They are ideal pipes for agricultural irrigation;
Certificate
Company Profile
High Mountain Pipe is a production enterprise focusing on core technology of pipelines.
The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.
The company adheres to the corporate culture concept of "Quality is as good, integrity is prosperous", relying on an effective quality management system, to provide customers with reliable product quality and high-quality technical services. In the new era of economic development, we are committed to the goal of "founding a first-class enterprise, producing first-class products, creating a first-class environment, and cultivating first-class talents", and develop together with domestic and foreign counterparts and related industries to create brilliant!
