HDPE Water Supply Pipe Connection Technology Pipe Installation Method PE Pipe
----------------------------------------
Basic Info.

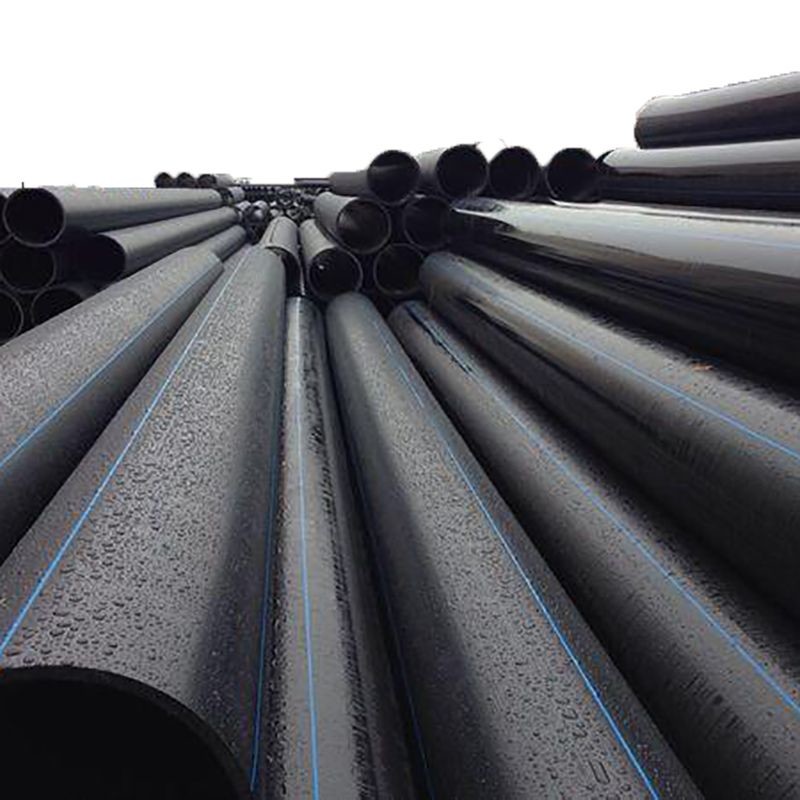

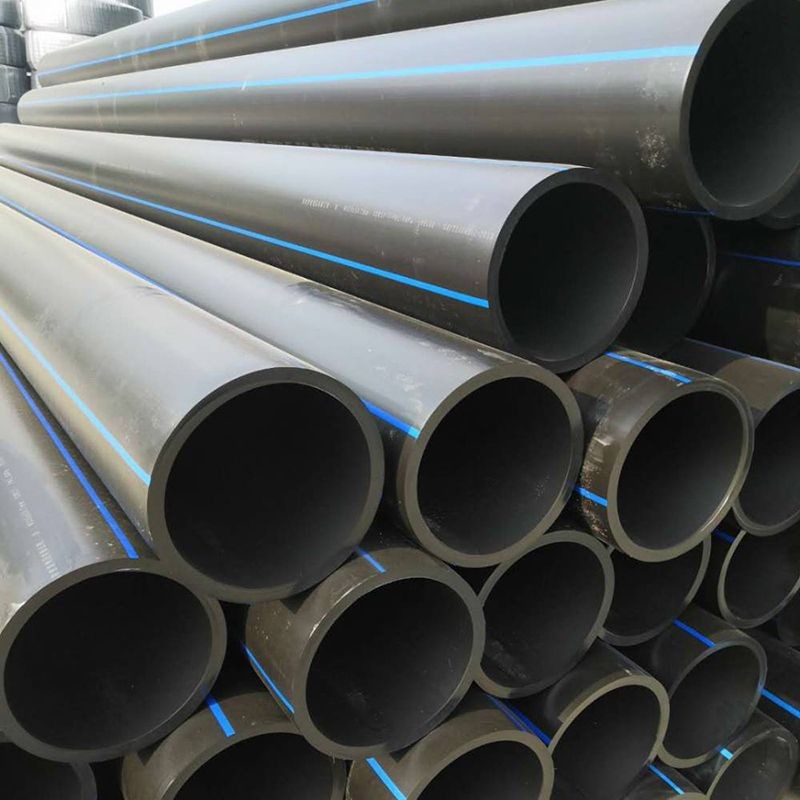

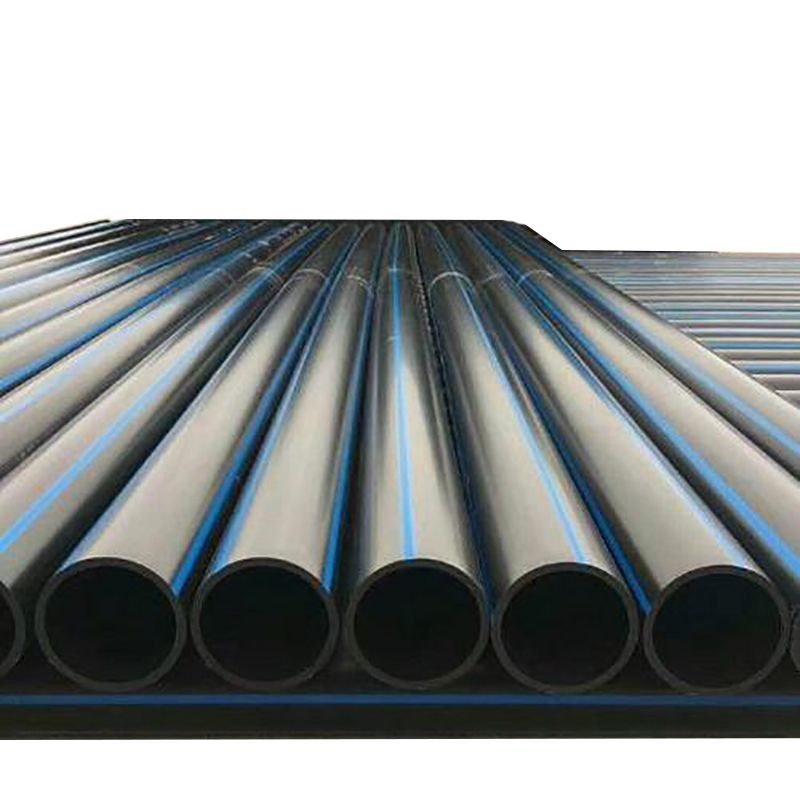

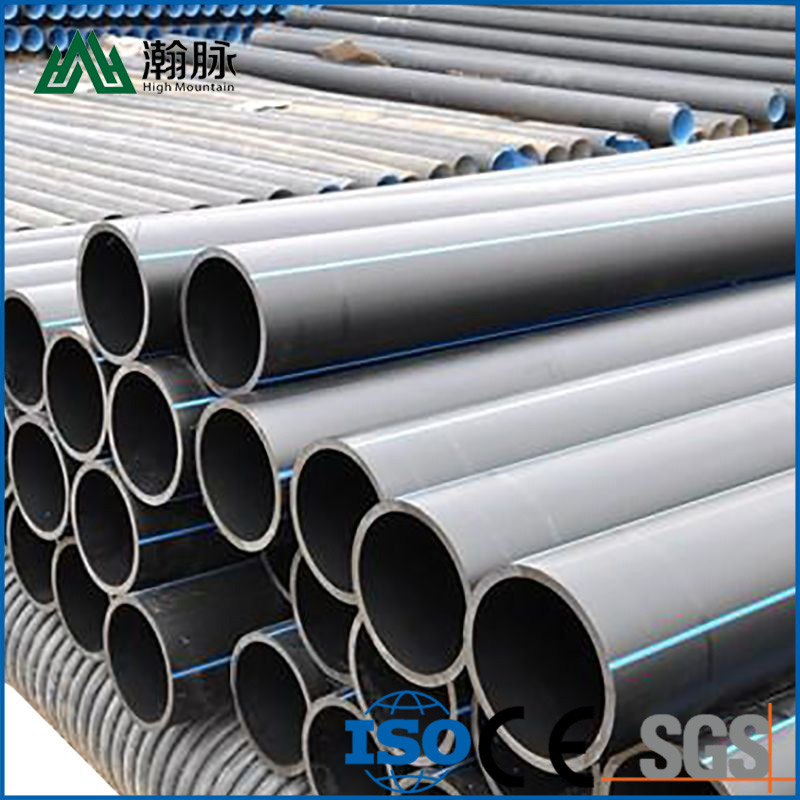

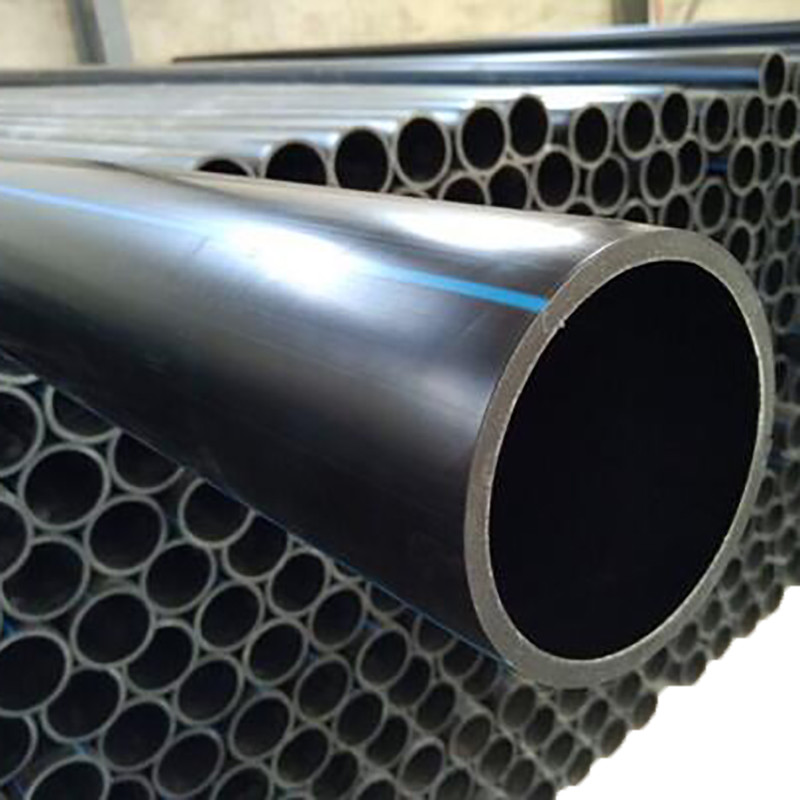

HDPE water pipes are made of high-density polyethylene (HDPE) material, which is a thermoplastic polymer that is strong, durable, and resistant to corrosion. These pipes are widely used in water supply systems due to their flexibility, toughness, and ability to withstand high pressure. They come in various sizes ranging from 20mm to 75mm, making them suitable for a wide range of applications. HDPE pipes are also easy to install and maintain, making them a cost-effective option for water supply systems.
| Diameter(mm) | Outer diameter(mm) | Wall thickness (mm) |
Weight/m (kg) |
Weight/root(kg) | Root/km | Weight/km(ton) |
| 80 | 98 | 6 | 12.2 | 76.5 | 167 | 12.77 |
| 100 | 118 | 6.1 | 15.1 | 95 | 167 | 15.87 |
| 150 | 170 | 6.3 | 22.8 | 144 | 167 | 20.05 |
| 200 | 220 | 6.4 | 30.6 | 194 | 167 | 32.4 |
| 250 | 274 | 6.8 | 40.2 | 255 | 167 | 42.59 |
| 300 | 326 | 7.2 | 50.8 | 323 | 167 | 53.94 |
| 350 | 378 | 7.7 | 63.2 | 403 | 167 | 67.3 |
| 400 | 429 | 8.1 | 75.5 | 482 | 167 | 80.48 |
| 450 | 480 | 8.6 | 89.3 | 575 | 167 | 95.86 |
| 500 | 532 | 9 | 104.3 | 669 | 167 | 111.72 |
| 600 | 635 | 9.9 | 137.3 | 882 | 167 | 147.29 |
| 700 | 738 | 10.8 | 173.9 | 1123 | 167 | 187.54 |
| 800 | 842 | 11.7 | 215.2 | 1394 | 167 | 232.8 |
| 900 | 945 | 12.6 | 260.2 | 1691 | 167 | 282.4 |
| 1000 | 1048 | 13.5 | 309.3 | 2017 | 167 | 336.84 |
| 1200 | 1255 | 15.3 | 420.1 | 2758 | 167 | 460.69 |
Advantage
Ease of Installation:
Electrofusion fittings are relatively easy to install compared to traditional methods. The process is typically faster, and it doesn't require additional adhesives or solvents.
Versatility:
HDPE electrofusion fittings are available in various sizes and configurations, providing flexibility in designing and implementing piping systems for different applications.
Long Service Life:
HDPE has a long service life, and the joints created through electrofusion are durable. This results in a reliable and long-lasting piping system.
Reduced Maintenance:
The strong, leak-free joints created by electrofusion reduce the need for maintenance and repairs, contributing to a lower overall cost of ownership.
Details
Application
Medical and health field: PE water pipes can be used in medical and health fields, such as infusion pipes, hemodialysis pipes, etc.
Gas transportation system: PE water pipes can be used in gas transportation systems, such as urban gas pipelines, industrial gas pipelines, etc.
Underground drainage system: PE water pipes can be used in underground drainage systems, such as underground drainage pipes, rainwater collection pipes, etc.
Power communication field: PE water pipes can be used in the power communication field, such as cable protection pipes, optical cable protection pipes, etc.
Construction engineering field: PE water pipes can be used in construction engineering fields, such as water pipes inside buildings, water pipes in fire protection systems, etc.
Fishery farming field: PE water pipes can be used in fishery farming fields, such as aquaculture, seaweed farming, etc.
Certificate
Company Profile
Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.
FAQ
Q: Where is your company?
A: We are located in Jiangsu, China.
Q: What is your warranty policy?
A: The product is guaranteed for two years from the date of shipment (or leaving the seller's factory depending on the terms).
It is also guaranteed that the product can be used for 50 years.
Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
