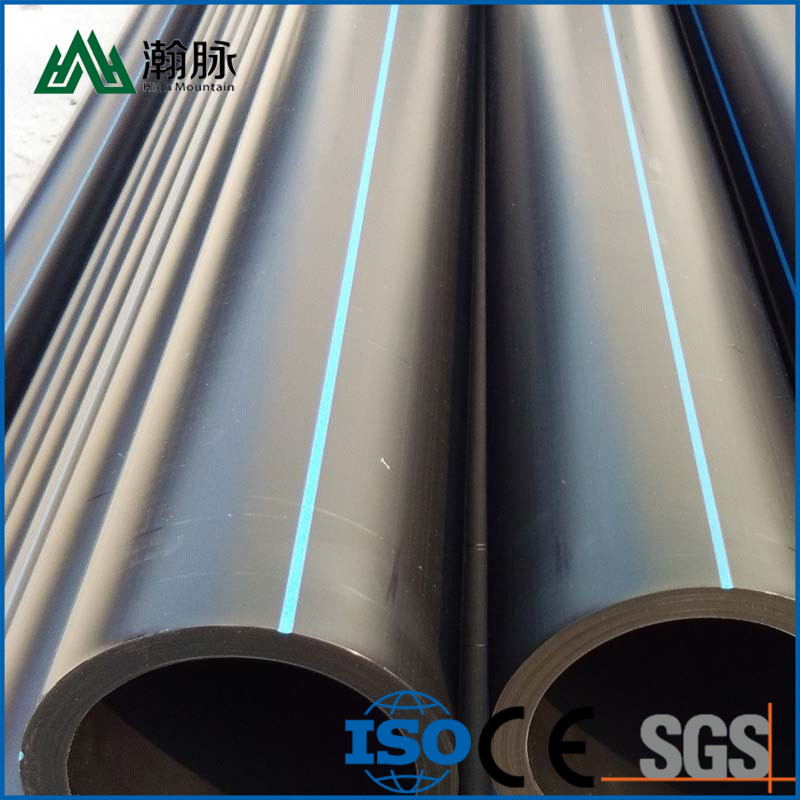

32mm Hdpe Water Supply Pipe Black Pe100 Pipe Irrigation Pipe
----------------------------------------
Basic Info.
High-Density Polyethylene (HDPE) pipe is a versatile and durable piping solution widely used in various industries for fluid and gas transportation. Manufactured from thermoplastic polymer, HDPE pipes offer remarkable strength, chemical resistance, and flexibility. The material's toughness makes it well-suited for both underground and above-ground installations, capable of withstanding environmental stresses and varying temperatures.
Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
1/2 | 20 | 2.3 | 2.3 | ||||
3/4 | 25 | 3 | 2.3 | 2.3 | |||
1 | 32 | 3.6 | 3 | 2.4 | |||
1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Pressure resistance: PE water pipes have excellent pressure resistance and can withstand water flow under high pressure, ensuring the safety of water supply and transportation.
Lightweight and high strength: PE water pipes are light in weight, high in strength, easy to transport and install, not easy to be damaged, and have a long service life.
Environmental protection and health: PE water pipes meet environmental protection standards, do not contain any harmful substances, and are harmless to human health.
Simple maintenance: PE water pipes are not easily affected by external factors, have long service life, and are simple to maintain, reducing maintenance costs.
Details
Application
Telecommunications and Cable Protection: HDPE pipes are used to protect telecommunication cables and fiber optics. They provide a durable and protective conduit for underground or aerial installations.
Geothermal Applications: HDPE pipes are suitable for geothermal energy systems, where they are used for the transport of hot water or steam due to their resistance to high temperatures and corrosion.
Landfill Leachate Collection: In landfill applications, HDPE pipes are utilized for the collection and transport of leachate, the liquid that drains from landfills. Their resistance to chemicals ensures the integrity of the collection system.
Certificate
Company Profile
High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.
The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.
The company adheres to the belief of "integrity first, mutual benefit, and efficient development", based on the present and focusing on the future. Warmly welcome new and old customers, guests and friends from all walks of life to patronize, consult and guide, work together to create brilliant.
FAQ
Q: Where is your company?
A: We are located in Jiangsu, China.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
Q: What are your payment terms?
A: Accept the T/T and L/C terms.
