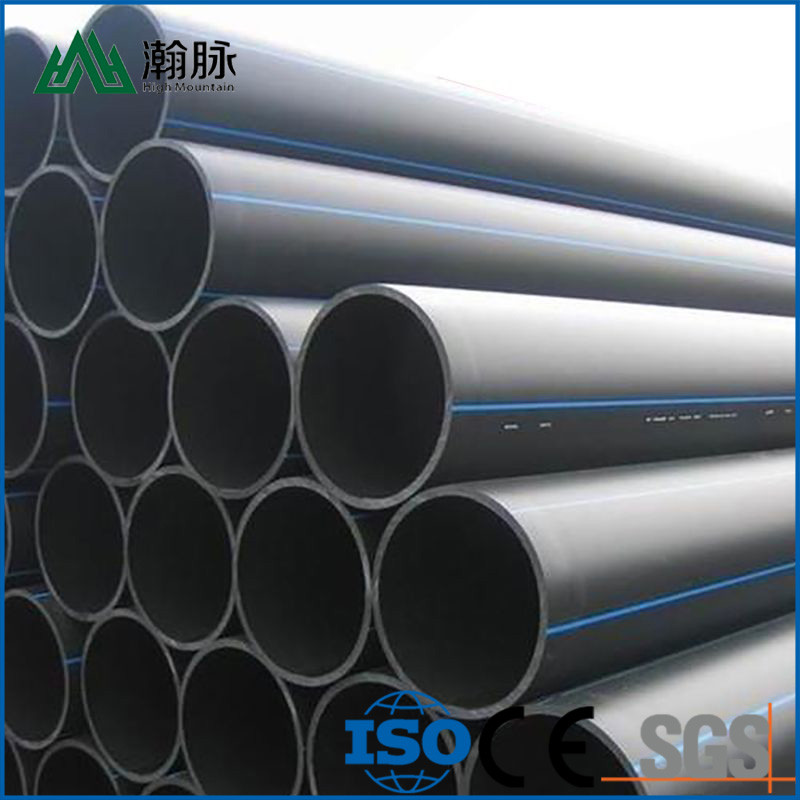

Hdpe Water Supply Pipe Threading Pipe Municipal Water Supply And Drainage Pipe
----------------------------------------
Basic Info.
High-Density Polyethylene (HDPE) pipe is a versatile and durable piping solution widely used in various industries for fluid and gas transportation. Manufactured from thermoplastic polymer, HDPE pipes offer remarkable strength, chemical resistance, and flexibility. The material's toughness makes it well-suited for both underground and above-ground installations, capable of withstanding environmental stresses and varying temperatures.
Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
1/2 | 20 | 2.3 | 2.3 | ||||
3/4 | 25 | 3 | 2.3 | 2.3 | |||
1 | 32 | 3.6 | 3 | 2.4 | |||
1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Environmental protection and health: PE water pipes meet environmental protection standards, do not contain any harmful substances, and are harmless to human health.
Simple maintenance: PE water pipes are not easily affected by external factors, have long service life, and are simple to maintain, reducing maintenance costs.
Good flexibility and toughness: PE water pipes have good flexibility and toughness, can adapt to changes in terrain and geological conditions, and are not easy to break.
Details
Application
Underwater Pipelines: HDPE pipes are utilized in the construction of underwater pipelines for transporting fluids such as seawater, chemicals, or oil. Their buoyancy and corrosion resistance are advantageous in marine environments.
Crossing Water Bodies: HDPE pipes are often used for horizontal directional drilling (HDD) projects, allowing for the installation of pipelines beneath rivers, lakes, or other water bodies without disturbing the surface.
Chemical Processing: In chemical plants, HDPE pipes are employed for the safe and efficient transport of various chemicals. Their resistance to corrosive substances and durability make them suitable for this application.
Certificate
Company Profile
High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.
The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.
The company adheres to the belief of "integrity first, mutual benefit, and efficient development", based on the present and focusing on the future. Warmly welcome new and old customers, guests and friends from all walks of life to patronize, consult and guide, work together to create brilliant.
FAQ
Q: Where is your company?
A: We are located in Jiangsu, China.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
Q: What are your payment terms?
A: Accept the T/T and L/C terms.
