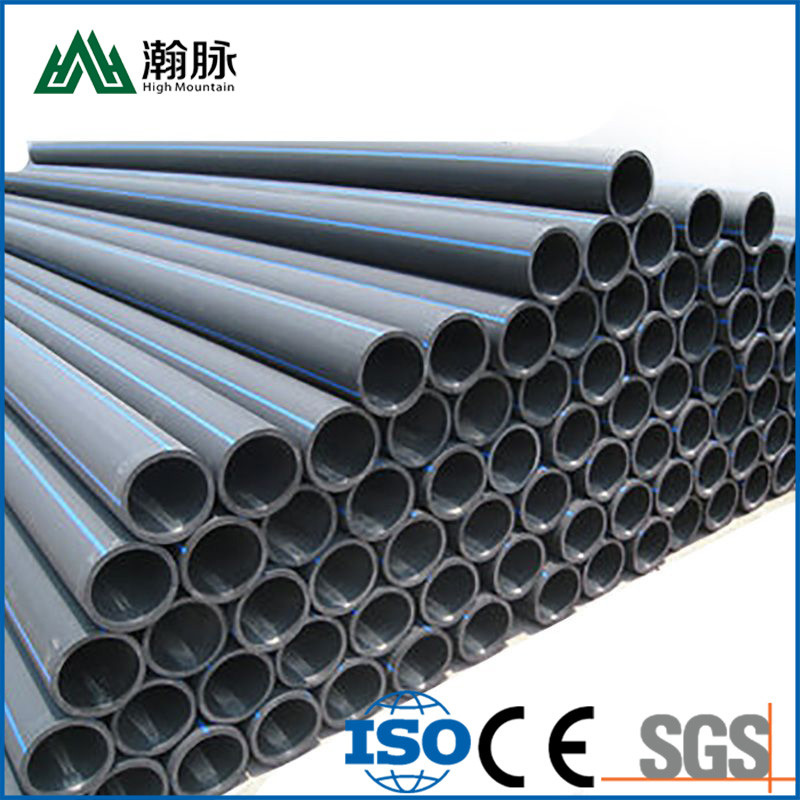

Hdpe Water Supply Pipe Large Diameter Traction Pipe Butt Hot Melt
----------------------------------------
Basic Info.
Can PE water supply pipes be used as tap water supply pipes? What aspects need attention?
PE water supply pipe is a pipe made of polyethylene (PE) material for conveying water supply. PE water supply pipe has the advantages of light weight, high strength, corrosion resistance, wear resistance, low temperature resistance, and not easy to scale, so it is widely used in water treatment, water supply, drainage and other fields.
PE water supply pipes can be used as tap water supply pipes. However, when using PE water supply pipes as tap water supply pipes, the following aspects need to be paid attention to:
1. Select the appropriate pipe diameter and thickness. Select the appropriate pipe diameter and thickness according to actual needs to ensure the pressure resistance and durability of the pipe.
2. Ensure the quality of materials. The production and use of PE water supply pipes should comply with national standards to ensure the quality and safety of pipe materials.
3. Precautions for installation. When installing PE water supply pipes, it is necessary to pay attention to the support, fixing and sealing of the pipes to ensure the stability and sealing of the pipes.
4. Prevent breakage and damage. PE water supply pipes need to avoid damage and breakage during use to avoid sewage leakage and water pollution.
5. Regular maintenance. PE water supply pipes require regular inspection and maintenance during use to ensure the safety and durability of the pipes.
6. Ensure the quality of drinking water. When using PE water supply pipes as tap water supply pipes, it is necessary to ensure that the quality of drinking water meets relevant standards. Therefore, when installing PE water supply pipes, suitable connectors should be used, and maintenance work such as cleaning and disinfection of the pipes should be carried out regularly to ensure the safety of the water quality inside the pipes.
7. Avoid exposure to sunlight. PE pipes will cause aging and deformation when exposed to sunlight for a long time, which will affect their service life and safety. Therefore, when using PE water supply pipes, it is necessary to avoid direct exposure of the pipes to sunlight.
In short, PE water supply pipes can be used as tap water supply pipes, but in the process of use and maintenance, you need to pay attention to the relevant installation and maintenance requirements to ensure its safety and reliability.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | |
| OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 20 | 2.3 | 2.3 | ||||
| 25 | 3.0 | 2.3 | 2.3 | |||
| 32 | 3.6 | 3.0 | 2.4 | |||
| 40 | 4.5 | 3.7 | 3.0 | 2.4 | ||
| 50 | 5.6 | 4.6 | 3.7 | 3.0 | ||
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 110 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 |
| 125 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 |
| 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Good flexibility and toughness: PE water pipes have good flexibility and toughness, can adapt to changes in terrain and geological conditions, and are not easy to break.
Impact resistance: PE water pipes have excellent impact resistance and can withstand a certain degree of external impact and extrusion.
Long life: PE water pipes have excellent durability and have a service life of more than 50 years.
Low friction coefficient: The inner wall of the PE water pipe is smooth and the friction coefficient is small, which can reduce water flow resistance and improve transportation efficiency.
Details
Application
Culverts and Drainage: HDPE pipes are commonly used for culverts and drainage systems. Their smooth interior surface minimizes the risk of blockages, and their lightweight design simplifies installation.
Telecommunications and Cable Protection: HDPE pipes are used to protect telecommunication cables and fiber optics. They provide a durable and protective conduit for underground or aerial installations.
Geothermal Applications: HDPE pipes are suitable for geothermal energy systems, where they are used for the transport of hot water or steam due to their resistance to high temperatures and corrosion.
Certificate
Company Profile
High Mountain Pipe is a production enterprise focusing on core technology of pipelines.
The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.
FAQ
Q: What are raw materials?
A: PE
Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
