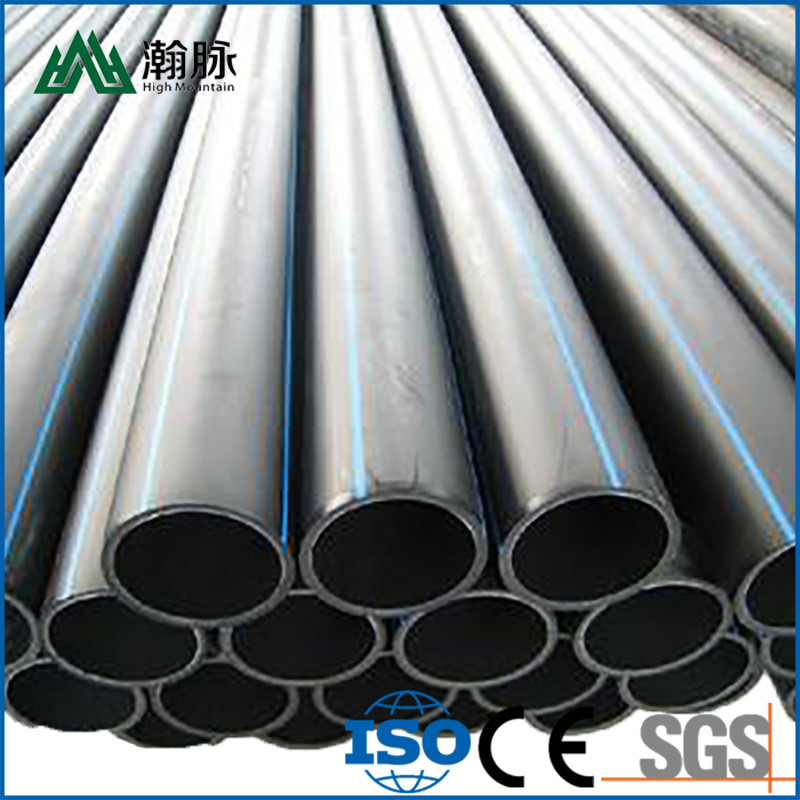

Municipal Pipe Hdpe Water Supply Pipe Pe Water Supply Pipe Fittings Municipal Water Supply Pipe
----------------------------------------
Basic Info.
What are the structural components of HDPE pipes?
The excellent performance of HDPE pipes is inseparable from its unique structural components. HDPE is a high-density variant of polyethylene with higher molecular density and stronger intermolecular forces. This gives HDPE excellent mechanical properties, chemical resistance and high temperature resistance. The manufacture of HDPE pipes typically involves the extrusion of polyethylene resin, ensuring the pipes have uniform thickness and good durability. The construction components of HDPE pipe provide a solid foundation for its superior performance in a variety of environmental and engineering conditions.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | |
| OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 20 | 2.3 | 2.3 | ||||
| 25 | 3.0 | 2.3 | 2.3 | |||
| 32 | 3.6 | 3.0 | 2.4 | |||
| 40 | 4.5 | 3.7 | 3.0 | 2.4 | ||
| 50 | 5.6 | 4.6 | 3.7 | 3.0 | ||
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 110 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 |
| 125 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 |
| 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Convenient welding: PE water pipes can be connected using hot melt welding technology, which is simple to operate, firm in connection, and not easy to leak.
Safety and environmental protection: PE water pipes do not contain heavy metals and other harmful substances, comply with environmental protection standards, and are safe and reliable to use.
Price advantage: Compared with water pipelines made of other materials, the price of PE water pipes is more favorable, so it has a certain price advantage.
Details
Application
Water Supply and Distribution: HDPE pipes are widely used for transporting potable water in municipal and industrial water supply systems. Their resistance to corrosion and smooth interior surface contribute to efficient water flow.
Irrigation: HDPE pipes are commonly employed in agricultural irrigation systems due to their flexibility, durability, and resistance to chemicals. They provide a reliable and cost-effective solution for transporting water to crops.
Mining: In the mining industry, HDPE pipes are used for transporting slurry, tailings, and other mining fluids. Their durability and resistance to abrasion make them suitable for harsh mining environments.
Certificate
Company Profile
High Mountain Pipe is a production enterprise focusing on core technology of pipelines.
The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.
FAQ
Q: What are raw materials?
A: PE
Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
