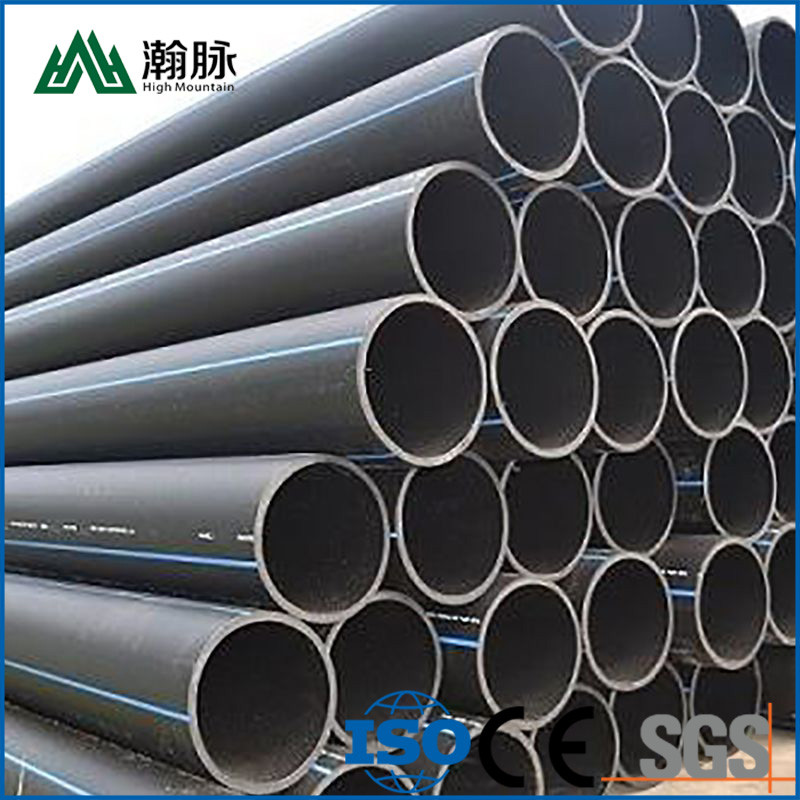

Polyethylene Water Supply Pipe Has Good Weldability Hdpe Water Supply Pipe
----------------------------------------
Basic Info.
HDPE pipes are widely used in building water supply, building drainage, buried drainage pipes, building heating, gas transmission pipes, welding and telecommunications maintenance casings, industrial pipes, and agricultural pipes because of their unique advantages. Wait. Its key applications are urban water supply, urban gas supply, farmland irrigation and other industries. PE (polyethylene) raw materials are widely used in the water supply pipe manufacturing industry because of their high strength, corrosion resistance, and non-toxic properties; because it is not easy Rust, therefore, is an ideal pipe to replace ordinary iron water supply pipes.
Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa |
SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | |
OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
20 | 2.3 | 2.3 | ||||
25 | 3.0 | 2.3 | 2.3 | |||
32 | 3.6 | 3.0 | 2.4 | |||
40 | 4.5 | 3.7 | 3.0 | 2.4 | ||
50 | 5.6 | 4.6 | 3.7 | 3.0 | ||
63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
110 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 |
125 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 |
140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
315 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 |
355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
630 | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 |
710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Safety and environmental protection: PE water pipes do not contain heavy metals and other harmful substances, comply with environmental protection standards, and are safe and reliable to use.
Price advantage: Compared with water pipelines made of other materials, the price of PE water pipes is more favorable, so it has a certain price advantage.
Low temperature resistance: PE water pipes have excellent low temperature resistance and will not crack or deform even in extremely cold environments.
Details
Application
Medical device field: PE water pipes can be used in the field of medical devices, such as infusion sets, hemodialysis machines, etc.
Motorboats and yachts: PE water pipes can be used in motorboats and yachts, such as water pipelines in ship cooling systems, toilet sewage systems, etc.
Sludge treatment field: PE water pipes can be used in sludge treatment fields, such as sludge transportation pipelines, sludge drying pipelines, etc.
Garbage disposal field: PE water pipes can be used in garbage disposal fields, such as garbage transportation pipelines, landfill leachate pipelines, etc.
Building sound insulation field: PE water pipes can be used in the field of building sound insulation, such as sound insulation pipes and sound insulation materials inside buildings.
Certificate
Company Profile
High Mountain Pipe is a production enterprise focusing on core technology of pipelines.
The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.
The company adheres to the corporate culture concept of "Quality is as good, integrity is prosperous", relying on an effective quality management system, to provide customers with reliable product quality and high-quality technical services. In the new era of economic development, we are committed to the goal of "founding a first-class enterprise, producing first-class products, creating a first-class environment, and cultivating first-class talents", and develop together with domestic and foreign counterparts and related industries to create brilliant!
