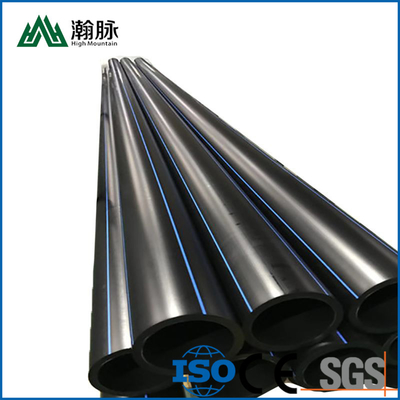

Hdpe Water Supply And Drainage Pipe Polyethylene Water Supply Pipe Pn1.0mpa Water Pipe
----------------------------------------
Basic Info.
How to install HDPE pipe?
Installing HDPE pipe is a relatively simple process that can be completed by anyone with basic plumbing knowledge. There are only a few steps involved in the installation process, and no special tools or equipment is required. Here is a step-by-step guide to installing HDPE pipe:
1.Measure the area where the pipe will be installed and mark out the route for the pipe.
2.Dig a trench along the marked route, making sure that it is wide enough to accommodate the HDPE pipe.
3.Lay the HDPE pipe in the trench and secure it in place with clamps or straps.
4.Cover the pipe with soil or gravel and compact it around the pipe to form a tight seal.
5.Test the HDPE pipe by performing a pressure test or watertightness test.
Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa |
SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | |
OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
20 | 2.3 | 2.3 | ||||
25 | 3.0 | 2.3 | 2.3 | |||
32 | 3.6 | 3.0 | 2.4 | |||
40 | 4.5 | 3.7 | 3.0 | 2.4 | ||
50 | 5.6 | 4.6 | 3.7 | 3.0 | ||
63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
110 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 |
125 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 |
140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
315 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 |
355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
630 | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 |
710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Lightweight and high strength: PE water pipes are light in weight, high in strength, easy to transport and install, not easy to be damaged, and have a long service life.
Environmental protection and health: PE water pipes meet environmental protection standards, do not contain any harmful substances, and are harmless to human health.
Simple maintenance: PE water pipes are not easily affected by external factors, have long service life, and are simple to maintain, reducing maintenance costs.
Details
Application
Road and Highway Drainage: HDPE pipes are used for drainage systems along roads and highways, ensuring effective water management to prevent flooding and erosion, contributing to the longevity of transportation infrastructure.
Cooling Tower Piping: HDPE pipes are used in cooling tower systems to transport cooling water. Their resistance to corrosion and scaling contributes to the efficiency and reliability of these systems.
Chemical Dosing Systems: HDPE pipes find applications in chemical dosing systems for the controlled addition of chemicals in water treatment processes. Their chemical resistance ensures the integrity of the dosing system.
Certificate
Company Profile
High Mountain Pipe is a production enterprise focusing on core technology of pipelines.
The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.
FAQ
Q: What are raw materials?
A: PE
Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
