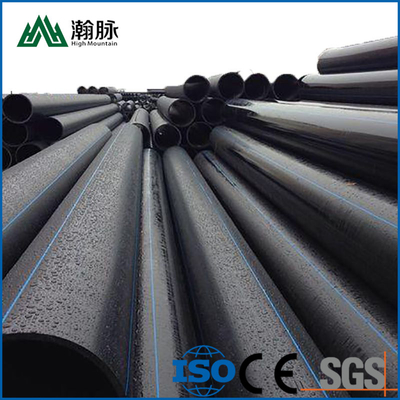

Hdpe Water Supply Pipe Black Pe Pipe 110 160 200mm Irrigation Pipe Large Diameter Water Supply Pipe
----------------------------------------
Basic Info.
HDPE water pipe is an ideal choice for water supply applications because it offers a long service life of at least 100 years with minimal maintenance. It also has a low life cycle cost compared to other piping materials because it requires less energy to produce and transport, and it can be recycled at the end of its use. HDPE water pipe is a proven and reliable piping system that can meet the current and future needs of the water infrastructure market.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | |
| OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 20 | 2.3 | 2.3 | ||||
| 25 | 3.0 | 2.3 | 2.3 | |||
| 32 | 3.6 | 3.0 | 2.4 | |||
| 40 | 4.5 | 3.7 | 3.0 | 2.4 | ||
| 50 | 5.6 | 4.6 | 3.7 | 3.0 | ||
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 110 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 |
| 125 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 |
| 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Good hygienic performance: no heavy metal salt stabilizer is added during the processing of PE pipe, the material is non-toxic, no scaling layer, no bacteria breeding,
A good solution to the secondary pollution of urban drinking water.
Excellent corrosion resistance: Except for a few strong oxidants, it can resist the erosion of various chemical media; no electrochemical corrosion.
Long service life: PE pipes can be safely used for more than 50 years under rated temperature and pressure conditions.
Good impact resistance: PE pipe has good toughness and high impact resistance, and heavy objects directly press through the pipeline, which will not cause the pipeline to break violently.
Details
Application
Landfill and Leachate Collection:
Electrofusion fittings are used in landfill applications to create secure joints in HDPE pipes for leachate collection and management.
Infrastructure Projects:
HDPE electrofusion fittings are often used in large infrastructure projects, such as bridges, tunnels, and highways, where a reliable and durable piping system is essential.
Wastewater Treatment:
HDPE electrofusion fittings are employed in wastewater treatment plants for connecting pipes and fittings in a manner that ensures the integrity of the system over time.
Certificate
Company Profile
High Mountain Pipe is a production enterprise focusing on core technology of pipelines.
The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.
FAQ
Q: What are raw materials?
A: PE
Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
