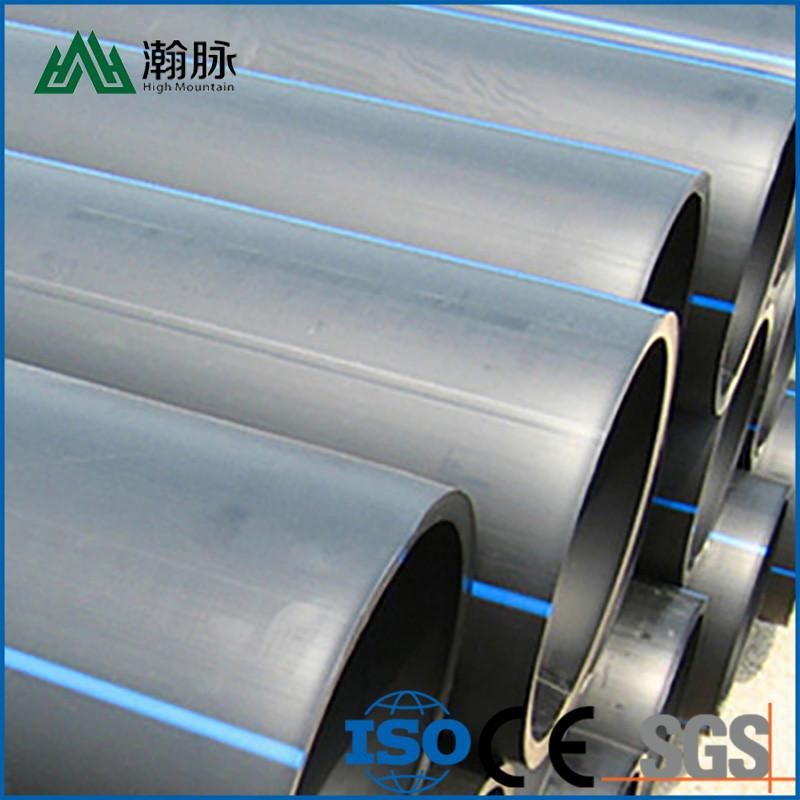

Large Diameter Hdpe Water Supply Pipe Municipal Engineering Pipe Pe100 Black Water Pipe
----------------------------------------
Basic Info.
What are the structural components of HDPE pipes?
The excellent performance of HDPE pipes is inseparable from its unique structural components. HDPE is a high-density variant of polyethylene with higher molecular density and stronger intermolecular forces. This gives HDPE excellent mechanical properties, chemical resistance and high temperature resistance. The manufacture of HDPE pipes typically involves the extrusion of polyethylene resin, ensuring the pipes have uniform thickness and good durability. The construction components of HDPE pipe provide a solid foundation for its superior performance in a variety of environmental and engineering conditions.
Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa |
SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | |
OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
20 | 2.3 | 2.3 | ||||
25 | 3.0 | 2.3 | 2.3 | |||
32 | 3.6 | 3.0 | 2.4 | |||
40 | 4.5 | 3.7 | 3.0 | 2.4 | ||
50 | 5.6 | 4.6 | 3.7 | 3.0 | ||
63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
110 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 |
125 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 |
140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
315 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 |
355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
630 | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 |
710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Good hygienic performance: no heavy metal salt stabilizer is added during the processing of PE pipe, the material is non-toxic, no scaling layer, no bacteria breeding,
A good solution to the secondary pollution of urban drinking water.
Excellent corrosion resistance: Except for a few strong oxidants, it can resist the erosion of various chemical media; no electrochemical corrosion.
Long service life: PE pipes can be safely used for more than 50 years under rated temperature and pressure conditions.
Good impact resistance: PE pipe has good toughness and high impact resistance, and heavy objects directly press through the pipeline, which will not cause the pipeline to break violently.
Details
Application
1. City, township water pipe system: PE water supply pipe is safe, non-toxic, hygienic, and non-scaling, and has become an ideal pipe for water supply in cities and towns;
2. Renovation of old pipes: it can be used to replace cement pipes, cast iron pipes and steel pipes, without large-scale excavation, and PE water supply pipes can be directly inserted, which is convenient for construction and low in engineering cost, especially suitable for pipeline transformation in old urban areas;
3. Landscaping pipe network: Landscaping requires a large number of water pipes. PE water supply pipes are flexible and low-cost, which is the best choice;
Certificate
Company Profile
High Mountain Pipe is a production enterprise focusing on core technology of pipelines.
The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.
FAQ
Q: What are raw materials?
A: PE
Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
