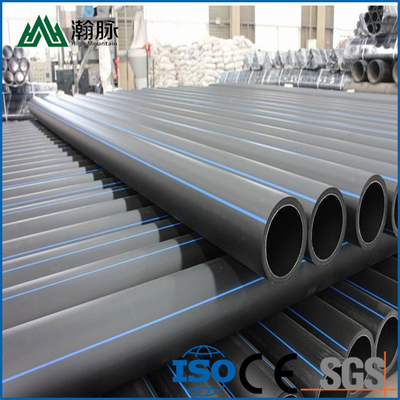

Large Diameter Hdpe Water Supply Pipe Can Be Customized Tap Water Pipe Directly Buried Black Water Supply Plastic Pipe
----------------------------------------
Basic Info.
What is HDPE pipe?
HDPE water supply pipe and HDPE drainage pipe are both made of high-density polyethylene (HDPE), but they serve different purposes. HDPE water supply pipe is typically used to transport potable water to homes and businesses, while HDPE drainage pipe is usually used to carry wastewater away from a structure.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | |
| OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 20 | 2.3 | 2.3 | ||||
| 25 | 3.0 | 2.3 | 2.3 | |||
| 32 | 3.6 | 3.0 | 2.4 | |||
| 40 | 4.5 | 3.7 | 3.0 | 2.4 | ||
| 50 | 5.6 | 4.6 | 3.7 | 3.0 | ||
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 110 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 |
| 125 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 |
| 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Good hygienic performance: no heavy metal salt stabilizer is added during the processing of PE pipe, the material is non-toxic, no scaling layer, no bacteria breeding,
A good solution to the secondary pollution of urban drinking water.
Excellent corrosion resistance: Except for a few strong oxidants, it can resist the erosion of various chemical media; no electrochemical corrosion.
Long service life: PE pipes can be safely used for more than 50 years under rated temperature and pressure conditions.
Good impact resistance: PE pipe has good toughness and high impact resistance, and heavy objects directly press through the pipeline, which will not cause the pipeline to break violently.
Details
Application
1. Urban and rural water supply pipeline system
The urban and rural water supply system is an integral part of the entire urban and rural planning, and generally consists of water sources, water supply pipelines, water plants, and water supply networks. After the water is drawn from the water source, the treated water is sent to the water plant for water quality treatment, and the pressurized water is delivered to the user through the water distribution network. HDPE water supply pipes have good wear resistance and mechanical strength, and have strong temperature adaptability, which can work normally in the environment of -40°+95°.
2. Sewage discharge pipes
HDPE sewage treatment pipe refers to a system of pipes, canals and their ancillary facilities that collect and discharge sewage, waste water and rainwater. Including mains, branches and pipes leading to the treatment plant, whether built on the street or anywhere else, should be counted as drains as long as they are drains. HDPE chemical pipes have high chemical resistance to rings dissolved in civil and industrial wastewater.
Certificate
Company Profile
High Mountain Pipe is a production enterprise focusing on core technology of pipelines.
The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.
FAQ
Q: What are raw materials?
A: PE
Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
