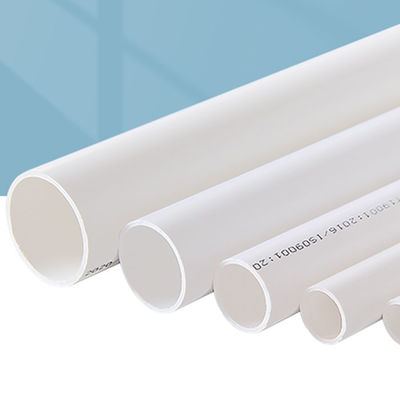

Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM05006
High Light:

UPVC Fish Tank Water Pipe

,

Blue Fish Tank Water Pipe

,

DN20 PVC Water Supply Pipe

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM05006
Specification: DN20mm-630mm
Color: Grey,white,black Or Request
Usage: Water Supply
Raw Material: PVC
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
Product Description

PVC Pipe UPVC Plastic Thickened Water Supply Pipes Fish Tank Water Pipe Fittings Blue Gray White

----------------------------------------



Basic Info.



PVC pipe drainage pipe is made of sanitary polyvinyl chloride (PVC) resin as the main raw material, adding appropriate amount of stabilizers, lubricants, fillers, colorants, etc. through plastic extruder extrusion molding and injection molding machine injection molding, through cooling , Curing, shaping, inspection, packaging and other processes to complete the production of pipes and fittings.



DN.mm Wall thickness(mm)
0.63 M pa 0.8Mpa 1.0Mpa 1.25Mpa 1.6Mpa 2.0Mpa
20 - - - - 2.0 2.0
25 - - - - 2.0 2.0
32 - - - - 2.0 2.0
40 - - - - 2.0 2.0
50 - - - - 2.0 2.4
50 - - - 2.0 2.4 3.0
63 - - 2.0 2.5 3.0 3.8
75 - 2.0 2.3 2.9 3.6 4.5
90 2.0 2.2 2.8 3.5 4.3 6.5
110 2.2 2.7 3.4 4.2 5.3 6.6
125 2.5 3.1 3.9 4.8 6.0 7.4
140 2.8 3.5 4.3 5.4 6.7 8.3
160 3.2 4.0 4.9 6.2 7.7 9.5
180 3.6 4.4 5.5 6.9 8.6 10.7
200 3.9 4.9 6.2 7.7 9.6 11.9
225 4.4 5.5 6.9 8.6 10.8 13.4
250 4.9 6.2 7.7 9.6 11.9 14.8
280 5.5 6.9 8.6 10.7 13.4 16.6
315 6.2 7.7 9.7 12.1 15.0 18.7
355 7.0 8.7 10.9 13.6 16.9 21.1
400 7.9 9.8 12.3 15.3 19.1 23.7
450 8.8 11.0 13.8 17.2 21.5 26.7
500 8.9 12.3 15.3 19.1 23.9 29.7
560 11.0 13.7 17.2 21.4 26.7 33.2
630 12.3 15.4 19.3 24.1 30.0 37.4

Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe 0

Advantage



1. The density is small, and the handling, loading and unloading, and construction are convenient.
2. It has excellent acid resistance, alkali resistance, and corrosion resistance, which is very suitable for the chemical industry.
3. The inner wall of the pipe is smooth, its roughness coefficient is only 0.009, and the fluid resistance is small, which effectively improves the hydraulic conditions of the pipe network and reduces the operating cost of the system.
4. The pipe has good pressure resistance, impact resistance and tensile strength performance.
5. The pipeline connection construction is quick and easy, and the construction engineering cost is low.
6. The price is low, and the transportation and construction are convenient, and the service life is long, so the overall cost is low.
7. It is confirmed by the dissolution test that it does not affect the water quality and is suitable for large-scale promotion and application.



Details



 Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe 1    Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe 2



Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe 3     Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe 4


Application



PVC drainage pipe is an alternative to traditional drainage pipes and has better physical and chemical properties. Its inner wall is smooth and has lower frictional resistance than conventional drainage materials. Therefore, the installation slope of the horizontal pipe is small, which can improve the indoor clear height of the building. At the same time, PVC drainage pipes are lighter in weight, which is one-fifth of cast iron pipes, and are easy to transport and operate. Adhesive connection is used for easy installation and maintenance. The price is lower than conventional drainage pipes, which greatly reduces the project cost. It has strong corrosion resistance and is suitable for construction. Sewage wastewater and rainwater piping systems are commonly used. In addition, the widespread use of PVC drainage pipes is conducive to saving steel, which is of great significance to alleviating the shortage of steel in my country. Compared with cast iron pipes and steel pipes, PVC-U drainage pipes have a bearing The disadvantages of low pressure and weak impact resistance. In addition, although PVC-U drainage pipe is a flame-retardant material, for indoor open pipes, there is a possibility of fire spreading upwards along the drainage riser.



Certificate



Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe 5

Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe 6

Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe 7

Company Profile



High Mountain Pipe is mainly engaged in PE water supply pipes, hdpe steel wire mesh skeleton composite pipes, PE threading pipes, HDPE double-wall corrugated pipes, PVC drainage pipes, PVC water supply pipes, CPVC power pipes, MPP power pipes, etc. The product model is complete, the quality is reliable, and the company has complete qualifications. , Integrity management, welcome customers to inquire and cooperate.



The company adheres to the people-oriented scientific development concept, correctly grasps product development trends, implements strategic target management, is committed to developing core manufacturing advantages, optimizing resource allocation and technological breakthroughs, introducing market-oriented and refined operating systems, achieving leapfrog development, and striving to build " "Rongchengxing" brand, implement a win-win strategy, and work hard for the development of the industry!





Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe 8     Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe 9



Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe 10       Thickened UPVC Fish Tank Water Pipe Blue Gray White DN20 PVC Water Supply Pipe 11





FAQ



Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.



Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.



Q: Is it possible to use the label or packaging I specified?
A: Yes. If necessary, we would like to use labels or packaging according to your requirements.
