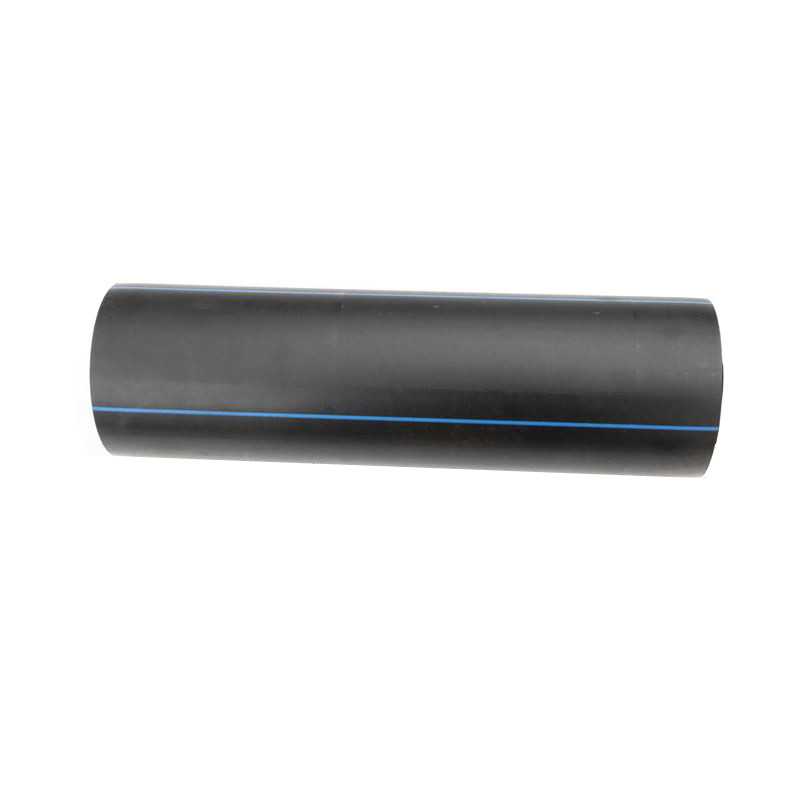

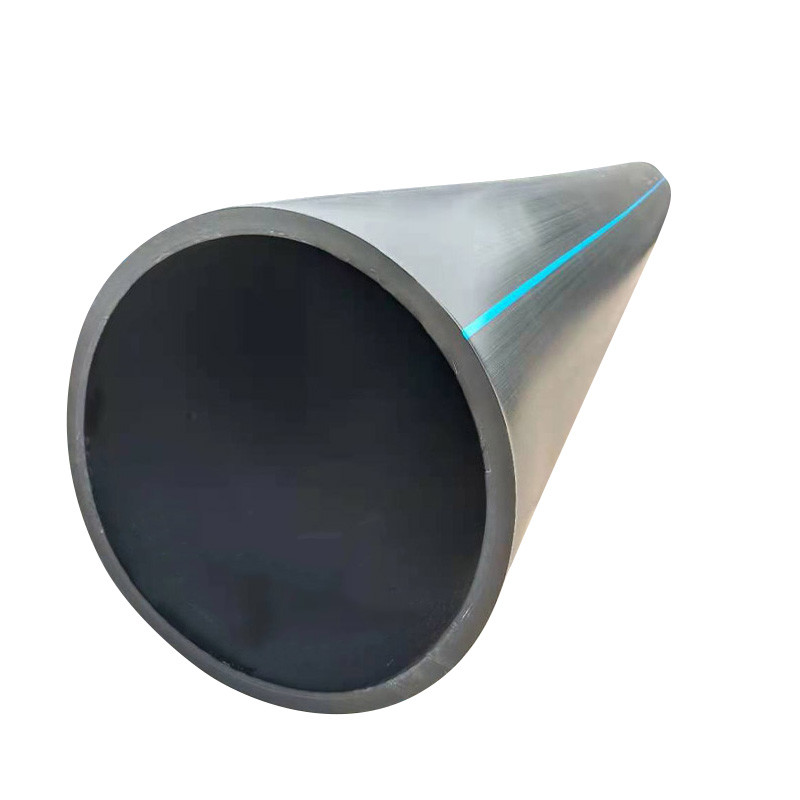

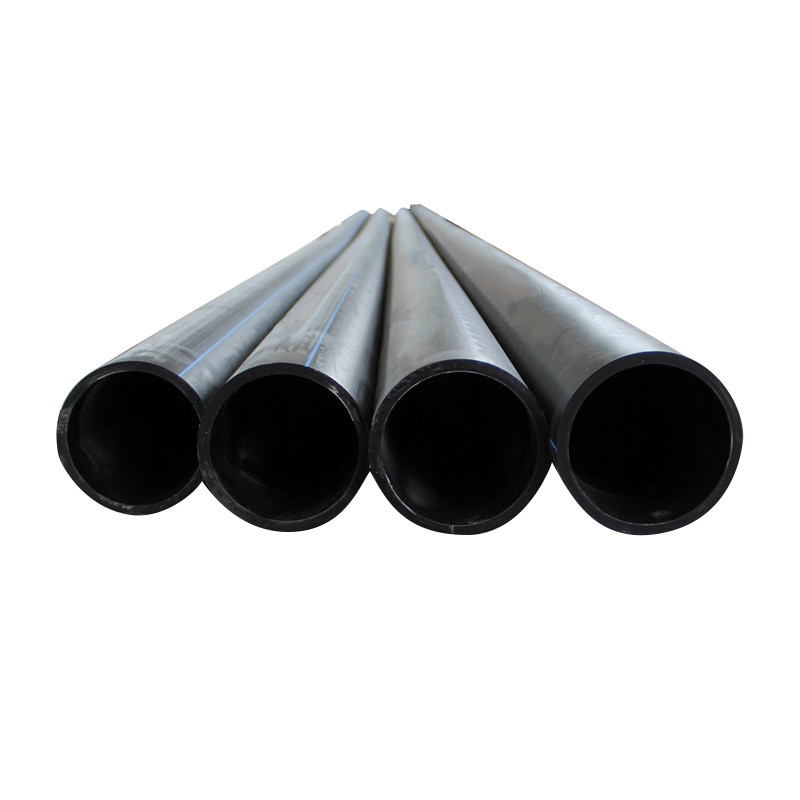

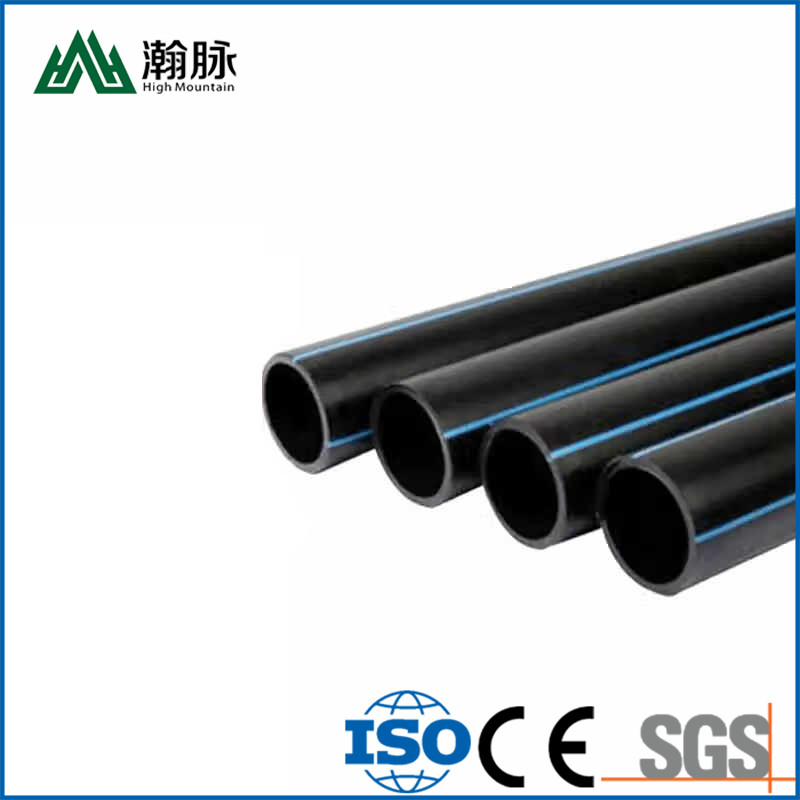

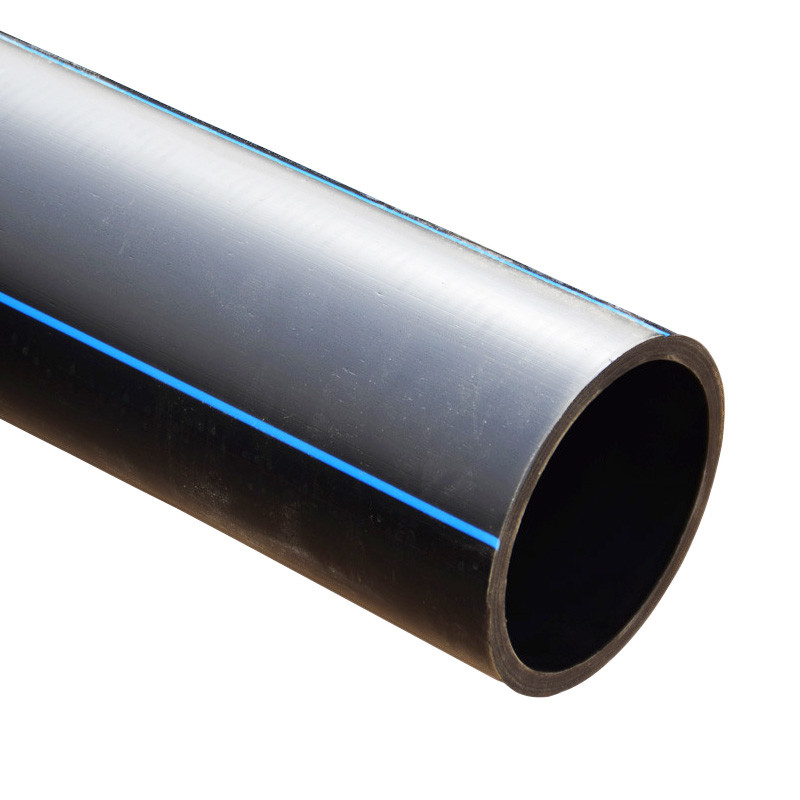

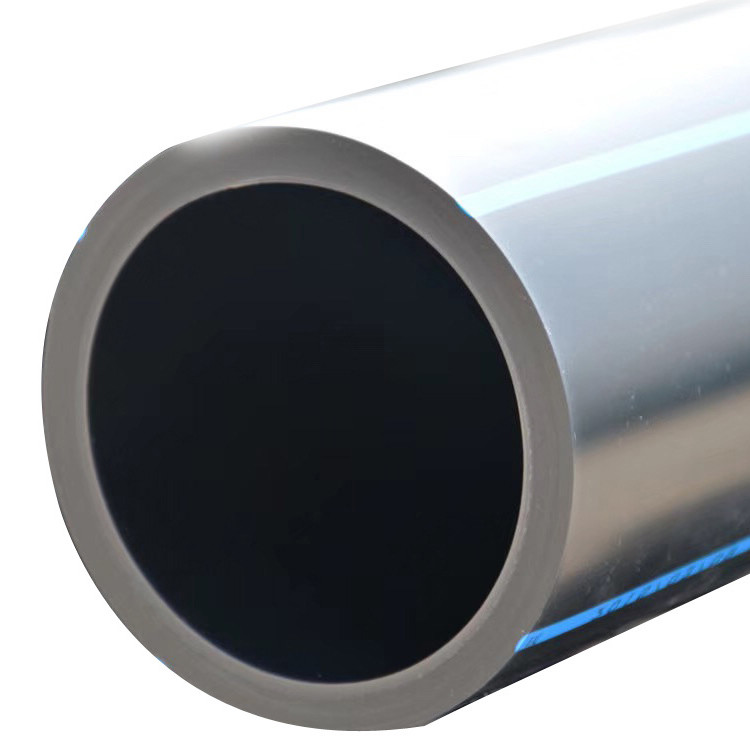

2 Inch Polyethylene Water Pipe Black HDPE Water Pipes For Agricultural Irrigation
----------------------------------------
Basic Info.
There are many classification methods of HDPE pipes, which can be divided into water supply pipes, gas pipes, aluminum-plastic composite pipes, buried drainage pipes, agricultural irrigation pipes and electrical casings according to the application field; according to the pressure conditions, they can be divided into pressure pipes and non-pressure pipes. , water supply pipes and gas pipes belong to the category of pressure pipes.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa | |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | ||
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | ||||
| 3/4 | 25 | 3 | 2.3 | 2.3 | |||
| 1 | 32 | 3.6 | 3 | 2.4 | |||
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 40 | 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 48 | 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 55 | 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 60 | 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 65 | 1600 | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. It has good low temperature impact resistance and can be safely affected in the temperature range of -20~40℃;
2. Good toughness and flexibility, strong adaptability to uneven foundation and dislocation, and can withstand harsh environments such as earthquakes and typhoons;
3. Has good weather resistance (including UV resistance) and long-term thermal stability;
4. Corrosion resistance, no need for anti-corrosion treatment, long service life;
5. The inner wall is smooth, the water flow resistance is small, the flow capacity is large, and the construction cost is saved;
6. Good wear resistance and wear resistance;
Details
Application
The materials used in HDPE pipes are mainly polyvinyl chloride (PVC), polyethylene (PE) and polypropylene (PP). Compared with other plastic pipes (such as PVC), high-density polyethylene (HDPE) pipes have the characteristics of low density, good toughness, corrosion resistance, good insulation performance, easy construction and installation, and are widely used in municipal and building water supply and drainage, gas , heating and heating, wire and cable threading, agricultural water-saving irrigation and other fields.
