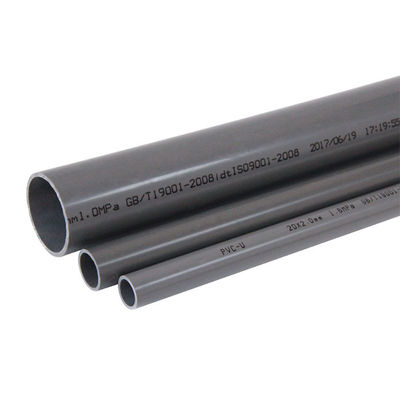

PVC Rigid Pipes For Water Supply And Drainage With Plastic Pipes For Garden Decoration And Irrigation 20 32 40 50 63 75
----------------------------------------
Basic Info.
PVC pipe drainage pipe is made of sanitary polyvinyl chloride (PVC) resin as the main raw material, adding appropriate amount of stabilizers, lubricants, fillers, colorants, etc. through plastic extruder extrusion molding and injection molding machine injection molding, through cooling , Curing, shaping, inspection, packaging and other processes to complete the production of pipes and fittings.
| DN.mm | Wall thickness(mm) | |||||
| 0.63 M pa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa | |
| 20 | - | - | - | - | 2.0 | 2.0 |
| 25 | - | - | - | - | 2.0 | 2.0 |
| 32 | - | - | - | - | 2.0 | 2.0 |
| 40 | - | - | - | - | 2.0 | 2.0 |
| 50 | - | - | - | - | 2.0 | 2.4 |
| 50 | - | - | - | 2.0 | 2.4 | 3.0 |
| 63 | - | - | 2.0 | 2.5 | 3.0 | 3.8 |
| 75 | - | 2.0 | 2.3 | 2.9 | 3.6 | 4.5 |
| 90 | 2.0 | 2.2 | 2.8 | 3.5 | 4.3 | 6.5 |
| 110 | 2.2 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 |
| 125 | 2.5 | 3.1 | 3.9 | 4.8 | 6.0 | 7.4 |
| 140 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 |
| 160 | 3.2 | 4.0 | 4.9 | 6.2 | 7.7 | 9.5 |
| 180 | 3.6 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 |
| 200 | 3.9 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 |
| 225 | 4.4 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 |
| 250 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 |
| 280 | 5.5 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 |
| 315 | 6.2 | 7.7 | 9.7 | 12.1 | 15.0 | 18.7 |
| 355 | 7.0 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 |
| 400 | 7.9 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 |
| 450 | 8.8 | 11.0 | 13.8 | 17.2 | 21.5 | 26.7 |
| 500 | 8.9 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 |
| 560 | 11.0 | 13.7 | 17.2 | 21.4 | 26.7 | 33.2 |
| 630 | 12.3 | 15.4 | 19.3 | 24.1 | 30.0 | 37.4 |
Advantage
1. The surface hardness and tensile strength of the pipe are excellent, and the safety factor of the pipe is high.
2. Good aging resistance, normal service life can reach more than 50 years.
3. The pipeline has excellent corrosion resistance to inorganic acids, alkalis, and salts, and is suitable for industrial sewage discharge and transportation.
4. The pipeline friction coefficient is small, the water flow is smooth, not easy to be blocked, and the maintenance workload is small.
5. The material has high oxygen index and self-extinguishing.
Details
Application
ABS (acrylonitrile-butadiene-styrene copolymer)
ABS is used to transport drinking water, mud and chemicals. DWV (drain waste exhaust) application is the most commonly used.
Unplasticized polyvinyl chloride (UPVC) and CPVC (post-chlorinated polyvinyl chloride)
UPVC has excellent chemical resistance throughout the working temperature range and has a wide working pressure band. Due to long-term high-strength characteristics, rigidity and cost-effectiveness, UPVC systems account for a considerable proportion of plastic pipe installations.
CPVC is resistant to many acids, alkalis, salts, paraffins, halogens and alcohols. It is not resistant to solvents, aromatic hydrocarbons and certain chlorinated hydrocarbons.
Certificate
Company Profile
High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.
The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.
FAQ
Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.
Q: How do you guarantee that the products you provide are qualified?
A: We always believe that integrity and responsibility are the foundation of a company, so any products we provide you are qualified. We will test the goods and provide COA before delivery.
Q: Is the price on this page correct?
A: The listed prices are for reference only, please contact us directly for the latest prices.
