Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe

10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: HAIYANG
Model Number: HM05015
Specification: DN20mm-630mm
Color: Grey,white,black Or Request
Usage: Water Supply
Raw Material: PVC
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
High Light:

40mm PVC Drainage Pipes

,

PVC Drainage Pipes ISO9001

,

63mm Transparent PVC Water Pipe

Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001 45001 14001
Model Number: HM05015
Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Product Description

Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe

----------------------------------------

Basic Info.

The main features of HDPE pipes are: good toughness and flexibility; small friction coefficient and strong passing ability; convenient construction, good chemical stability, long service life, suitable deflection, good resistance to rapid crack transmission, resistance to Low temperature, conform to the requirements of the times, "green" environmental protection.



Outer diameter (mm) Inner diameter (mm) Wall thickness (mm) Pressure
20 16 2 1.0Mpa
25 21 2 1.0Mpa
32 27.2 2.4 1.0Mpa
40 36 2 1.0Mpa
50 45.2 2.4 1.0Mpa
63 57 3 1.0Mpa
75 67.8 3.6 1.0Mpa
90 81.4 4.3 1.0Mpa
110 99.4 5.3 1.0Mpa
140 126.6 6.7 1.0Mpa
160 144.6 7.7 1.0Mpa
225 203.4 10.8 1.0Mpa
280 253.2 13.4 1.0Mpa
315 285 15 1.0Mpa
20 15.4 2.3 1.6Mpa
25 19.4 2.8 1.6Mpa
32 24.8 3.6 1.6Mpa
40 34 3 1.6Mpa
50 42.6 3.7 1.6Mpa
63 53.6 4.7 1.6Mpa
75 63.8 5.6 1.6Mpa
90 76.6 6.7 1.6Mpa
110 93.8 8.1 1.6Mpa
140 119.4 10.3 1.6Mpa
160 136.4 11.8 1.6Mpa
225 191.8 16.6 1.6Mpa
280 238.8 20.6 1.6Mpa
315 268.6 23.2 1.6Mpa



Advantage

Flexibility:
Polyethylene is a flexible material, allowing the pipes to bend and adapt to the terrain. This flexibility is especially useful in areas with shifting or uneven soil.
Chemical Resistance:
PE pipes are resistant to a wide range of chemicals, making them suitable for applications where exposure to chemicals is a concern, such as in industrial settings.
Longevity:
PE pipes have a long service life, providing durable and reliable drainage solutions. They are resistant to degradation from environmental factors, ensuring a stable performance over time.

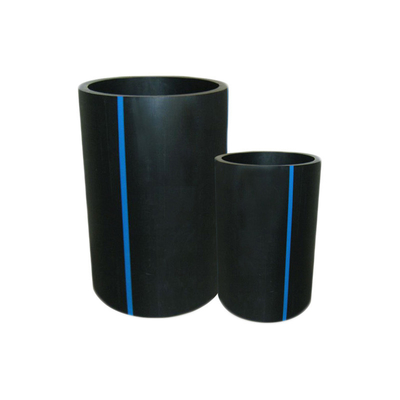

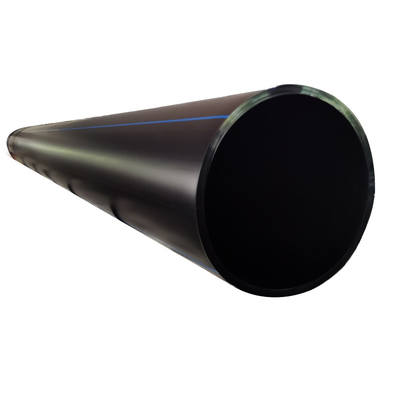

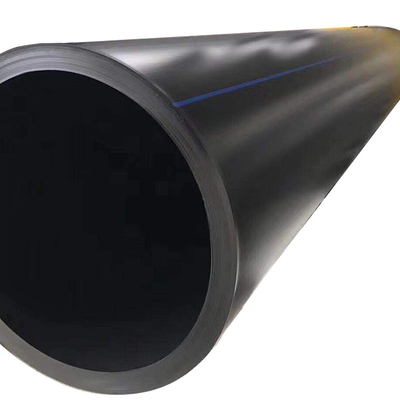

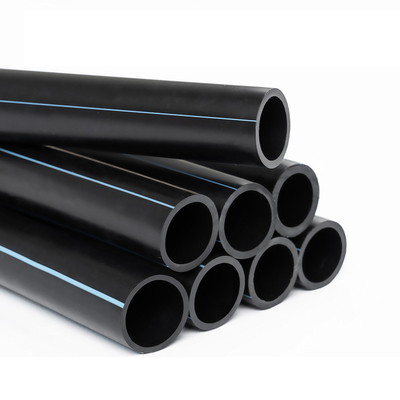

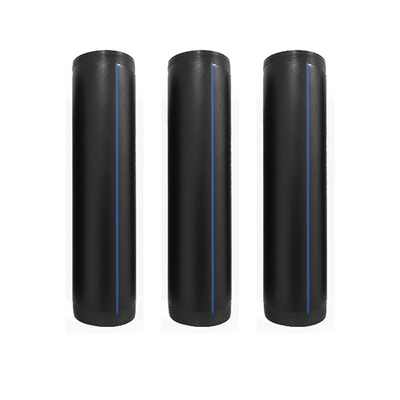

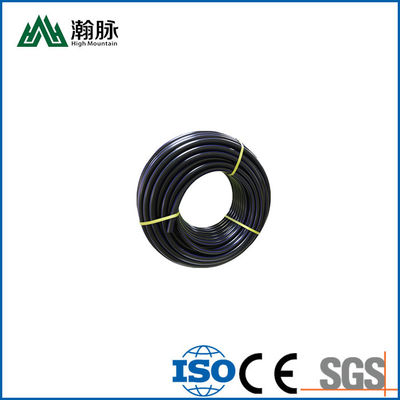

Details

Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe 0Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe 1Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe 2Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe 3

Application

Residential and Commercial Construction:
PE drainage pipes are used in construction projects to manage stormwater runoff, foundation drainage, and other drainage needs around residential and commercial buildings.
Stormwater Management:
In urban areas, PE drainage pipes play a crucial role in stormwater management systems, helping to control and direct rainwater runoff.
Mining and Industrial Applications:
PE drainage pipes are utilized in mining and industrial settings for various drainage needs, such as dewatering and controlling water flow.

Certificate



Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe 4

Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe 5

Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe 6

Company Profile



High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.

The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.

The company adheres to the belief of "integrity first, mutual benefit, and efficient development", based on the present and focusing on the future. Warmly welcome new and old customers, guests and friends from all walks of life to patronize, consult and guide, work together to create brilliant.



Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe 7     Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe 8



Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe 9       Customized HDPE Drainage Pipes 20 25 32 40 50 63 75mm Transparent PE Water Pipe 10





FAQ



Q: Where is your company?
A: We are located in Jiangsu, China.



Q: What is your warranty policy?
A: The product is guaranteed for two years from the date of shipment (or leaving the seller's factory depending on the terms).
It is also guaranteed that the product can be used for 50 years.





Q: What are your payment terms?
A: Accept the T/T and L/C terms.
