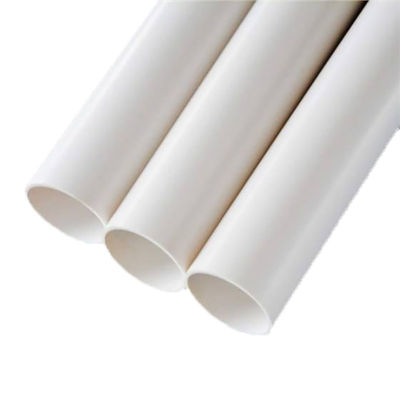

Pvc Drainage Pipe Customized Size And Color Water Supply And Drainage Plastic Pipes
----------------------------------------
Basic Info.
Commonly used PVC pipe drainage pipe specifications are: the nominal outer diameters are: 32mm, 40mm, 50mm, 75mm, 90mm, 110mm, 125mm, 160mm, 200mm, 250mm, 315mm. The length of PVC-U pipe is generally 4m or 6m.
| DN.mm | Wall thickness(mm) | |||||
| 0.63 M pa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa | |
| 20 | - | - | - | - | 2.0 | 2.0 |
| 25 | - | - | - | - | 2.0 | 2.0 |
| 32 | - | - | - | - | 2.0 | 2.0 |
| 40 | - | - | - | - | 2.0 | 2.0 |
| 50 | - | - | - | - | 2.0 | 2.4 |
| 50 | - | - | - | 2.0 | 2.4 | 3.0 |
| 63 | - | - | 2.0 | 2.5 | 3.0 | 3.8 |
| 75 | - | 2.0 | 2.3 | 2.9 | 3.6 | 4.5 |
| 90 | 2.0 | 2.2 | 2.8 | 3.5 | 4.3 | 6.5 |
| 110 | 2.2 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 |
| 125 | 2.5 | 3.1 | 3.9 | 4.8 | 6.0 | 7.4 |
| 140 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 |
| 160 | 3.2 | 4.0 | 4.9 | 6.2 | 7.7 | 9.5 |
| 180 | 3.6 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 |
| 200 | 3.9 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 |
| 225 | 4.4 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 |
| 250 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 |
| 280 | 5.5 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 |
| 315 | 6.2 | 7.7 | 9.7 | 12.1 | 15.0 | 18.7 |
| 355 | 7.0 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 |
| 400 | 7.9 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 |
| 450 | 8.8 | 11.0 | 13.8 | 17.2 | 21.5 | 26.7 |
| 500 | 8.9 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 |
| 560 | 11.0 | 13.7 | 17.2 | 21.4 | 26.7 | 33.2 |
| 630 | 12.3 | 15.4 | 19.3 | 24.1 | 30.0 | 37.4 |
Advantage
1. Small fluid resistance: The inner wall of the pipe is smooth, its roughness coefficient is only 0.009, and the fluid resistance is small, which effectively improves the hydraulic conditions of the pipe network and reduces the operating cost of the system.
2. Excellent corrosion resistance: It has excellent acid resistance, alkali resistance and corrosion resistance, which is very suitable for the use of chemical industry.
3. High mechanical strength: The pipe has good pressure resistance, impact resistance and tensile strength.
4. Simple construction: The pipeline connection construction is quick and easy, and the construction cost is low.
5. Does not affect water quality: It is confirmed by the dissolution test that it does not affect water quality, and is suitable for large-scale promotion and application.
6. Low cost: low price, convenient transportation and construction, and long service life, so the overall cost is low.
Details
Application
Water supply pipes, household pipes, house wall panels, commercial machine casings, electronic product packaging, medical equipment, food packaging, etc.
Certificate
Company Profile
High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.
The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.
FAQ
Q: Which payment is available for your company?
A: T/T, L/C or Ali trade insurance. You can choose the one which is convenient for you.
Q: What is the purpose of this pipeline?
A: It is mainly used to transport liquids, and is used on a large scale in urban water supply projects, farmland irrigation, etc.
Q: What certificates do you have for this product?
A: ISO, CE, SGS, etc.
