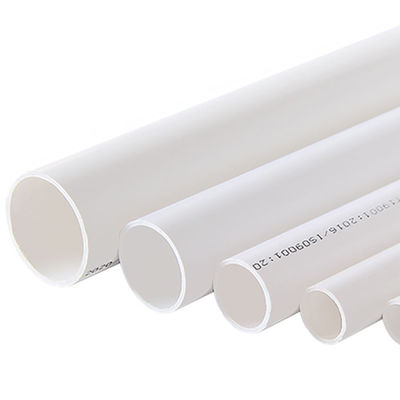

High Quality Water Supply And Drainage Plastic Pvc Pipe Prices PVC Drainage Pipe
----------------------------------------
Basic Info.
The common PVC water supply pipes in the market are mainly gray. The wall of the same specification is thicker than that of PVC drainage pipes, and the impact resistance is much greater than that of PVC drainage pipes. Although the rigidity of PVC water supply pipe itself is relatively large, the low temperature pressure resistance is excellent, and the pressure ring stress at 20°C can be greater than 42 MPa, which is the largest amount of water supply plastic pipes for construction on the market, but its high temperature pressure resistance is very poor. Therefore, it can only be used in cold water or low-temperature hot water pipe systems below 60°C. Users should pay attention when using it.
| Outer diameter (mm) | Inner diameter (mm) | Wall thickness (mm) | Pressure |
| 20 | 16 | 2 | 1.0Mpa |
| 25 | 21 | 2 | 1.0Mpa |
| 32 | 27.2 | 2.4 | 1.0Mpa |
| 40 | 36 | 2 | 1.0Mpa |
| 50 | 45.2 | 2.4 | 1.0Mpa |
| 63 | 57 | 3 | 1.0Mpa |
| 75 | 67.8 | 3.6 | 1.0Mpa |
| 90 | 81.4 | 4.3 | 1.0Mpa |
| 110 | 99.4 | 5.3 | 1.0Mpa |
| 140 | 126.6 | 6.7 | 1.0Mpa |
| 160 | 144.6 | 7.7 | 1.0Mpa |
| 225 | 203.4 | 10.8 | 1.0Mpa |
| 280 | 253.2 | 13.4 | 1.0Mpa |
| 315 | 285 | 15 | 1.0Mpa |
| 20 | 15.4 | 2.3 | 1.6Mpa |
| 25 | 19.4 | 2.8 | 1.6Mpa |
| 32 | 24.8 | 3.6 | 1.6Mpa |
| 40 | 34 | 3 | 1.6Mpa |
| 50 | 42.6 | 3.7 | 1.6Mpa |
| 63 | 53.6 | 4.7 | 1.6Mpa |
| 75 | 63.8 | 5.6 | 1.6Mpa |
| 90 | 76.6 | 6.7 | 1.6Mpa |
| 110 | 93.8 | 8.1 | 1.6Mpa |
| 140 | 119.4 | 10.3 | 1.6Mpa |
| 160 | 136.4 | 11.8 | 1.6Mpa |
| 225 | 191.8 | 16.6 | 1.6Mpa |
| 280 | 238.8 | 20.6 | 1.6Mpa |
| 315 | 268.6 | 23.2 | 1.6Mpa |
Advantage
1. The wall of the pipe is very smooth, so the resistance of the water flow is very small. Its water delivery capacity is 20% higher than that of the cast iron pipe of the same diameter, and the water delivery effect is very high.
2. Corrosion resistance and chemical resistance are also very good, with good acid resistance, alkali resistance, corrosion resistance, not affected by wet moisture and soil pH, and have a long service life.
3. It has good water tightness. Whether this kind of pipe is connected by bonding or rubber ring, it can maintain good water tightness.
4. It has good stretchability and thermal stability, can adapt to different environments and has a wide range of use.
5. With good hardness, it can be used as a drainage pipe, which can prevent the erosion of insects and ants, and has a longer service life.
Details
Application
1. Indoor water supply and reclaimed water systems for civil and industrial buildings;
2. Buried water supply system in residential quarters and factories;
3. Urban water supply pipeline system;
4. Water treatment pipeline system of water treatment plant;
5. Garden irrigation, well sinking and other projects and other industrial pipes.
Certificate
Company Profile
High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.
The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.
FAQ
Q: Is the price on this page correct?
A: The listed price is only for reference, for latest price, pls contact us directly.
Q: What is the purpose of this pipeline?
A: It is mainly used to transport liquids, and is used on a large scale in urban water supply projects, farmland irrigation, etc.
Q: What are your payment terms?
A: Accept the T/T and L/C terms.
