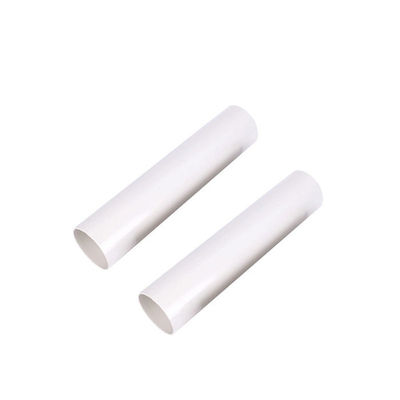

Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM05031
High Light:

smooth inner wall pvc drainage pipes

,

3 pvc drainage pipes

,

customized 3 inch pvc drain pipe

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM05031
Specification: DN20mm-630mm
Color: Grey,white,black Or Request
Usage: Water Supply
Raw Material: PVC
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
Product Description

Non-Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality

----------------------------------------



Basic Info.



PVC drainage pipe is an alternative to traditional drainage pipes and has better physical and chemical properties. Its inner wall is smooth and has less frictional resistance than conventional drainage materials. Therefore, the installation slope of the horizontal pipe is small, which can increase the indoor net height of the building. At the same time, PVC drainage pipes are lighter in weight, one-fifth of cast iron pipes, easy to transport and operate; adhesive connection is used to facilitate installation and maintenance; the price is lower than conventional drainage pipes, which greatly reduces the project cost; strong corrosion resistance, in construction Sewage and rainwater pipe systems are widely used.



Outer diameter (mm) Inner diameter (mm) Wall thickness (mm) Pressure
20 16 2 1.0Mpa
25 21 2 1.0Mpa
32 27.2 2.4 1.0Mpa
40 36 2 1.0Mpa
50 45.2 2.4 1.0Mpa
63 57 3 1.0Mpa
75 67.8 3.6 1.0Mpa
90 81.4 4.3 1.0Mpa
110 99.4 5.3 1.0Mpa
140 126.6 6.7 1.0Mpa
160 144.6 7.7 1.0Mpa
225 203.4 10.8 1.0Mpa
280 253.2 13.4 1.0Mpa
315 285 15 1.0Mpa
20 15.4 2.3 1.6Mpa
25 19.4 2.8 1.6Mpa
32 24.8 3.6 1.6Mpa
40 34 3 1.6Mpa
50 42.6 3.7 1.6Mpa
63 53.6 4.7 1.6Mpa
75 63.8 5.6 1.6Mpa
90 76.6 6.7 1.6Mpa
110 93.8 8.1 1.6Mpa
140 119.4 10.3 1.6Mpa
160 136.4 11.8 1.6Mpa
225 191.8 16.6 1.6Mpa
280 238.8 20.6 1.6Mpa
315 268.6 23.2 1.6Mpa


Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality 0



Advantage



1. It has good tensile and compressive strength.
2. The wall of the pipe is very smooth, so the resistance of the water flow is very small. Its water delivery capacity is 20% higher than that of the cast iron pipe of the same diameter, and the water delivery effect is very high.
3. Corrosion resistance and chemical resistance are also very good, with good acid resistance, alkali resistance, corrosion resistance, not affected by wet moisture and soil pH, and have a long service life.
4. It has good water tightness. Whether this kind of pipe is connected by bonding or rubber ring, it can maintain good water tightness.
5. It has good stretchability and thermal stability, can adapt to different environments and has a wide range of use.
6. With good hardness, it can be used as a drainage pipe, which can prevent the erosion of insects and ants, and has a longer service life.



Details

Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality 1Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality 2Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality 3Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality 4








Application



1. Indoor water supply and reclaimed water systems for civil and industrial buildings;
2. Buried water supply system in residential quarters and factories;
3. Urban water supply pipeline system;
4. Water treatment pipeline system of water treatment plant;
5. Marine aquaculture;
6. Garden irrigation, well sinking and other engineering and other industrial pipes.



Certificate



Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality 5

Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality 6

Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality 7

Company Profile



High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.

The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.

The company adheres to the belief of "integrity first, mutual benefit, and efficient development", based on the present and focusing on the future. Warmly welcome new and old customers, guests and friends from all walks of life to patronize, consult and guide, work together to create brilliant.



Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality 8     Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality 9     Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality 10     Non Potable Water Sewage Drainage PVC Drainage Pipe White Of Good Quality 11









FAQ



Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.



Q: What is your warranty policy?
A: The product is guaranteed for two years from the date of shipment (or leaving the seller's factory depending on the terms).
It is also guaranteed that the product can be used for 50 years.





Q: What are your payment terms?
A: Accept the T/T and L/C terms.
