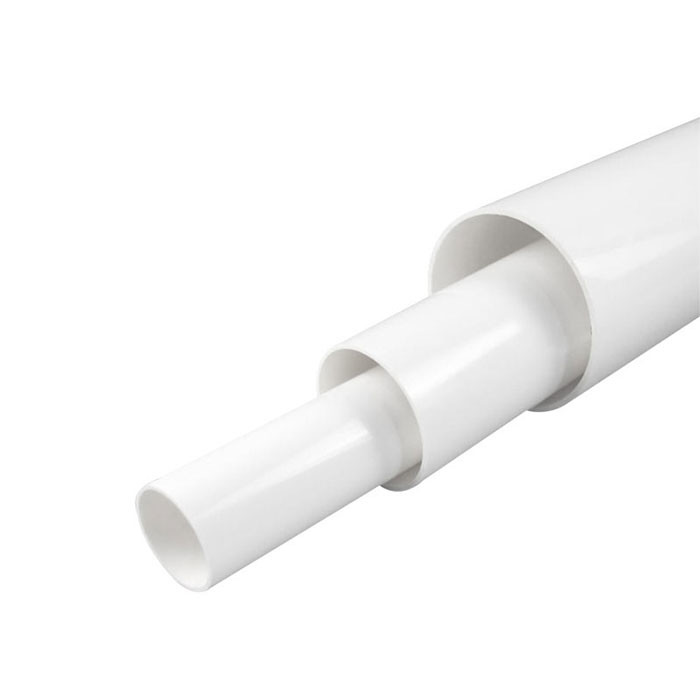

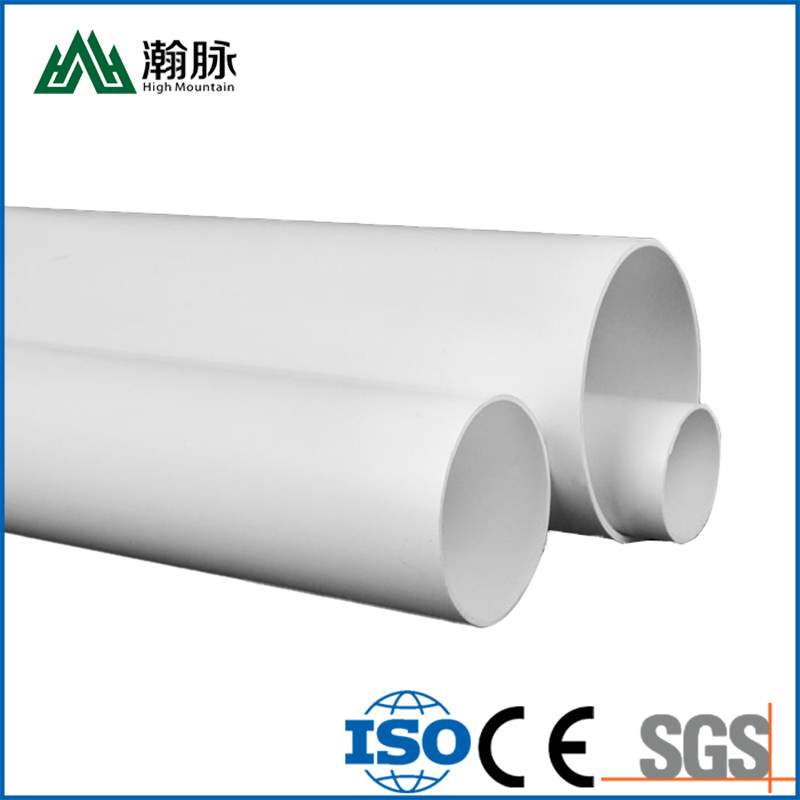

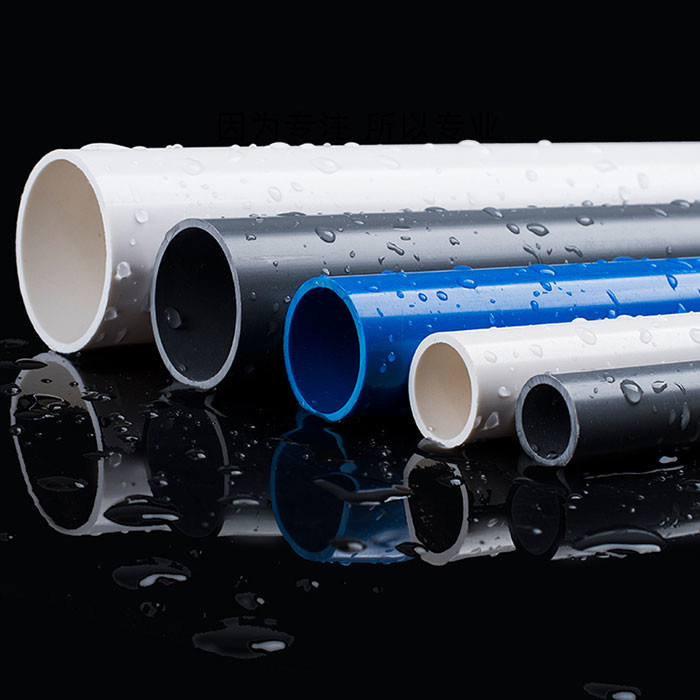

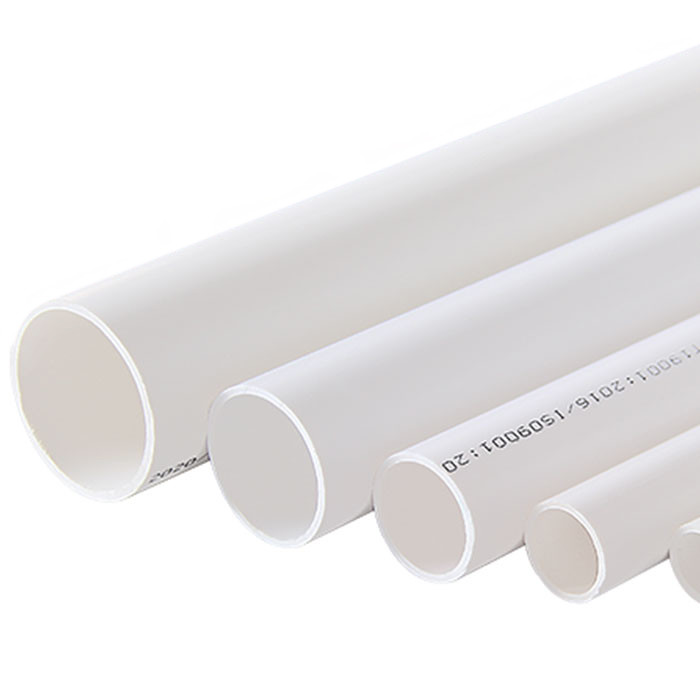

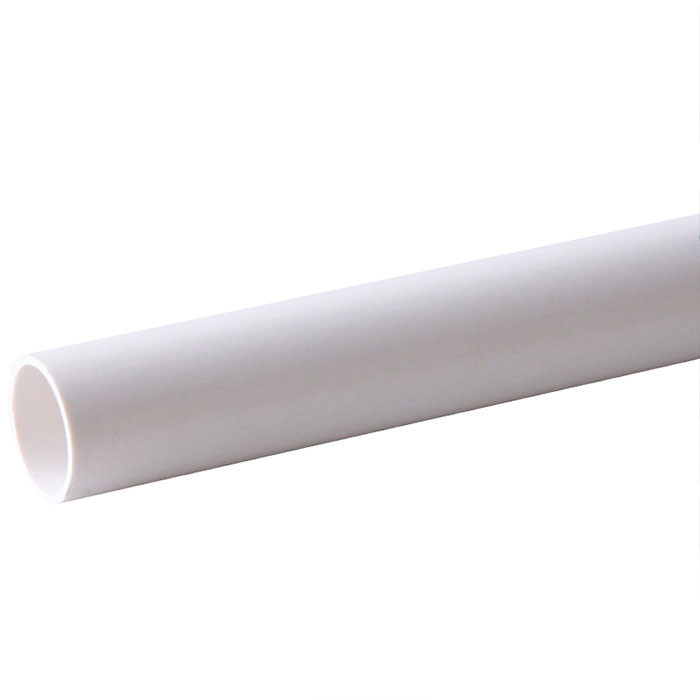

White Plastic Diameter PVC Drainage Pipe For Water Supply And Drainage
----------------------------------------
Basic Info.
PVC pipe has been regarded as the preferred pipe material by the construction industry. It is widely used in various fields and industries. From its own characteristics, it can be fully reflected in the waterway system. Then, what should we pay attention to during the installation process?
1. In order to ensure the safety and cleanliness of the PVC pipe, the pipe should be placed on the top with a bracket, which can ensure that the pipe is not placed anywhere and is not trampled by people, the pipe can also be used cleanly, and it can also prevent sludge residue in the pipe;
2. Before installation, the layout of the construction pipeline should be checked clearly, not only neat, but also strong in structure and smooth;
3. When installing, handle the pipe lightly to avoid damage during handling, and pay attention to the stones or silt staying in the pipe;
4. After the installation is completed, we need to conduct a pressure test for a period of time, and then check that there is no water leakage at each interface during the test, and replace it immediately if found.
| Nominal Outside Diameter | Dimensions(mm) | |||||||||||||
| S20/SDR41 | T | S16/SDR33 | T | S12.5/SDR26 | T | S10/SDR21 | T | S8/SDR17 | T | S6.3/SDR13.6 | T | S5/SDR11 | T | |
| 16 | 2.0 | 0.4 | ||||||||||||
| 20 | 2.0 | 0.4 | ||||||||||||
| 25 | - | 2.0 | 0.4 | 2.3 | 0.5 | |||||||||
| 32 | 2.0 | 0.4 | 2.4 | 0.5 | 2.9 | 0.5 | ||||||||
| 40 | - | - | 2.0 | 0.4 | 2.4 | 0.5 | 3.0 | 0.5 | 3.7 | 0.6 | ||||
| 50 | - | 2.0 | 0.4 | 2.4 | 0.5 | 3.0 | 0.5 | 3.7 | 0.6 | 4.6 | 0.7 | |||
| 63 | 2.0 | 0.4 | 2.5 | 0.5 | 3.0 | 0.5 | 3.8 | 0.6 | 4.7 | 0.7 | 5.8 | 0.8 | ||
| 75 | 2.3 | 0.5 | 2.9 | 0.5 | 3.6 | 0.6 | 4.5 | 0.7 | 5.6 | 0.8 | 6.8 | 0.9 | ||
| 90 | 2.8 | 0.5 | 3.5 | 0.6 | 4.3 | 0.7 | 5.4 | 0.8 | 6.7 | 0.9 | 8.2 | 1.1 | ||
| 110 | 3.4 | 0.6 | 4.2 | 0.7 | 5.3 | 0.8 | 6.6 | 0.9 | 8.1 | 1.1 | 10.0 | 1.2 | ||
| 125 | 3.9 | 0.6 | 4.8 | 0.7 | 6.0 | 0.8 | 7.4 | 1.0 | 9.2 | 1.2 | 11.4 | 1.4 | ||
| 140 | 4.3 | 0.7 | 5.4 | 0.8 | 6.7 | 0.9 | 8.3 | 1.1 | 10.3 | 1.3 | 12.7 | 1.5 | ||
| 160 | 4.0 | 0.6 | 4.9 | 0.7 | 6.2 | 0.9 | 7.7 | 1.0 | 9.5 | 1.2 | 11.8 | 1.4 | 14.6 | 1.7 |
| 180 | 4.4 | 0.7 | 5.5 | 0.8 | 6.9 | 0.9 | 8.6 | 1.1 | 10.7 | 1.3 | 13.3 | 1.6 | 16.4 | 1.9 |
| 200 | 4.9 | 0.7 | 6.2 | 0.9 | 7.7 | 1.0 | 9.6 | 1.2 | 11.9 | 1.4 | 14.7 | 1.7 | 18.2 | 2.1 |
| 225 | 5.5 | 0.8 | 6.9 | 0.9 | 8.6 | 1.1 | 10.8 | 1.3 | 13.4 | 1.6 | 16.6 | 1.9 | - | |
| 250 | 6.2 | 0.9 | 7.7 | 1.0 | 9.6 | 1.2 | 11.9 | 1.4 | 14.8 | 1.7 | 18.4 | 2.1 | - | |
| 280 | 6.9 | 0.9 | 8.6 | 1.1 | 10.7 | 1.3 | 13.4 | 1.6 | 16.6 | 1.9 | 20.6 | 2.3 | - | |
| 315 | 7.7 | 1.0 | 9.7 | 1.2 | 12.1 | 1.5 | 15.0 | 1.7 | 18.7 | 2.1 | 23.2 | 2.6 | - | |
| 355 | 8.7 | 1.1 | 10.9 | 1.3 | 13.6 | 1.6 | 16.9 | 1.9 | 21.1 | 2.4 | 26.1 | 2.9 | - | |
| 400 | 9.8 | 1.2 | 12.3 | 1.5 | 15.3 | 1.8 | 19.1 | 2.2 | 23.7 | 2.6 | 29.4 | 3.2 | - | |
| 450 | 11.0 | 1.3 | 13.8 | 1.6 | 17.2 | 2.0 | 21.5 | 2.4 | 26.7 | 3.0 | 33.1 | 3.6 | - | |
| 500 | 12.3 | 1.5 | 15.3 | 1.8 | 19.1 | 2.2 | 23.9 | 2.6 | 29.7 | 3.2 | 36.8 | 3.9 | - | |
| 560 | 13.7 | 1.6 | 17.2 | 2.0 | 21.4 | 2.4 | 26.7 | 2.9 | - | - | - | - | - | |
| 630 | 15.4 | 1.8 | 19.3 | 2.2 | 24.1 | 2.7 | 30.0 | 3.2 | - | - | - | - | - | |
| 710 | 17.4 | 2.0 | 21.8 | 2.4 | 27.2 | 3.0 | ||||||||
| 800 | 19.6 | 2.2 | 24.5 | 2.7 | 30.6 | 3.3 | ||||||||
Advantage
1. The surface hardness and tensile strength of pvc drainage pipe are excellent, and the safety factor of the pipe is extremely high.
2. PVC drainage pipe has good aging resistance, and its normal service life can reach more than 50 years.
3. PVC drainage pipe has excellent corrosion resistance to inorganic acids, alkalis, salts and other substances, so it is more suitable for industrial sewage discharge and transportation.
4. PVC drainage pipe has small friction coefficient, smooth water flow, not easy to be blocked, less maintenance workload, high oxygen index, and self-extinguishing.
5. The linear expansion coefficient of pvc drainage pipe is small, 0. 07mm/℃, and the amount of deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and the freezing resistance is excellent.
6. Adhesive methods can be used for the connection of pvc drainage pipe, which is simple in construction, convenient in operation and effective in installation.
Details
Application
It is used for municipal water supply and drainage, industrial water supply and drainage, civil water supply and drainage, irrigation, vegetation watering, etc.
Certificate
Company Profile
High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.
The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.
The company adheres to the belief of "integrity first, mutual benefit, and efficient development", based on the present and focusing on the future. Warmly welcome new and old customers, guests and friends from all walks of life to patronize, consult and guide, work together to create brilliant.
FAQ
Q: What is the delivery time?
A: We always have common products in stock and can be shipped within 30 days.
Large orders require 15 days to complete production.
Q: How to get free samples?
A: Send your address, telephone number, zip code and express account number to our mailbox, and tell us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What are your payment terms?
A: Accept the T/T and L/C terms.
