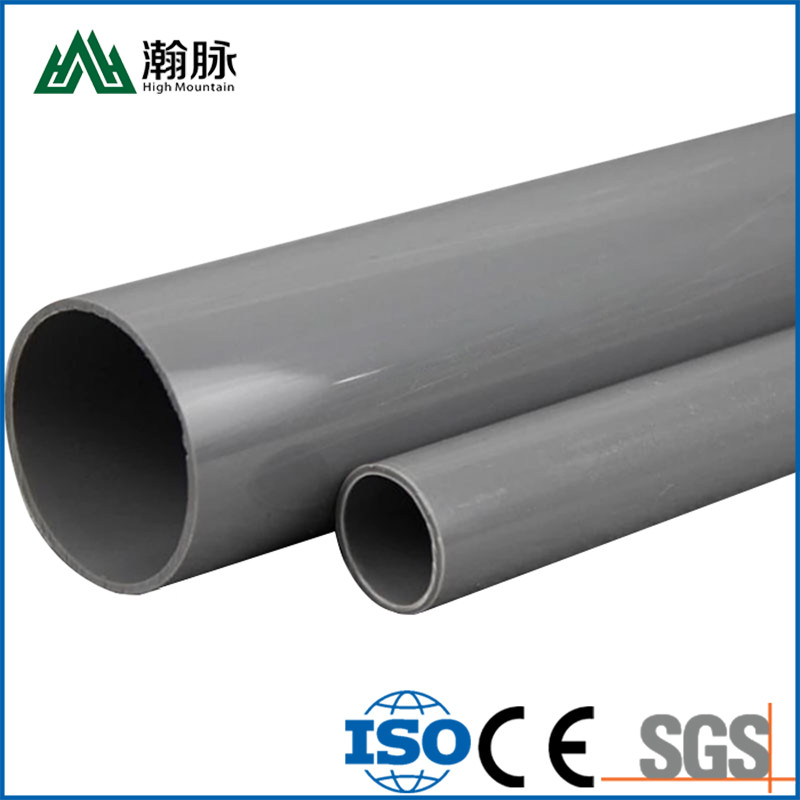

PVC U Drainage Pipe High Quality UPVC Underground Pipe Line Building Water Supply
----------------------------------------
Basic Info.
PVC-U pipe is made of sanitary polyvinyl chloride (PVC) resin as the main raw material, adding appropriate amount of stabilizer, lubricant, filler, color enhancer, etc. by plastic extruder extrusion molding and injection molding machine injection molding, through cooling, curing, shaping, inspection, packaging and other processes to complete the production of pipes and fittings. Excellent physical and chemical properties, chemical corrosion resistance, high impact strength, low fluid resistance, 30% higher than the same diameter cast iron pipe flow, aging resistance, long service life, service life of not less than 50 years, is the ideal material for building water supply and drainage.
| Outer Diameter DN (mm) |
PN25 | PN20 | PN16 | PN12.5 | PN10 | PN8 | PN6.3 |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | |
| 20 | 2.3 | 2.0 | |||||
| 25 | 2.8 | 2.3 | 2.0 | ||||
| 32 | 3.6 | 2.9 | 2.4 | 2.0 | |||
| 40 | 4.5 | 3.7 | 3.0 | 2.4 | 2.0 | ||
| 50 | 5.6 | 4.6 | 3.7 | 3.0 | 2.4 | 2.0 | |
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | 3.0 | 2.5 | 2.0 |
| 75 | 8.4 | 6.9 | 5.6 | 4.5 | 3.6 | 2.9 | 2.3 |
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 3.5 | 2.8 |
| 110 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 | 3.4 | 2.7 |
| 125 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 | 3.9 | 3.1 |
| 140 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 4.3 | 3.5 |
| 160 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 4.9 | 4.0 |
| 180 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 5.5 | 4.4 |
| 200 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 6.2 | 4.9 |
| 225 | 16.6 | 13.4 | 10.8 | 8.6 | 6.9 | 5.5 | |
| 250 | 18.4 | 14.8 | 11.9 | 9.6 | 7.7 | 6.2 | |
| 280 | 20.6 | 16.6 | 13.4 | 10.7 | 8.6 | 6.9 | |
| 315 | 23.2 | 18.7 | 15.0 | 12.1 | 9.7 | 7.7 | |
| 355 | 26.1 | 21.1 | 16.9 | 13.6 | 10.9 | 8.7 | |
| 400 | 29.4 | 23.7 | 19.1 | 15.3 | 12.3 | 9.8 | |
| 450 | 33.1 | 26.7 | 21.5 | 17.2 | 13.8 | 11.0 | |
| 500 | 36.8 | 29.7 | 23.9 | 19.1 | 15.3 | 12.3 | |
| 560 | 26.7 | 21.4 | 17.2 | 13.7 | |||
| 630 | 30.0 | 24.1 | 19.3 |
15.4 |
Advantage
1,The exterior walls of buildings will never be polluted by rusting pipes, ensuring that the value of buildings will not be damaged.
2,Pipe fittings are available in a wide range of styles and can be suitable for various design and installation requirements.
3,Easy to install, no need for regular maintenance and repair.
4,Weight is one-fifth of cast iron pipe, easy to transport and operate.
5,Adopting glue bonding, easy and fast, economic and efficient.
6,Tasteless and non-toxic.
7,Resistant to a wide range of chemicals, including strong acids and bases.
8,not subject to bacteria.
9,Resistant to termites and weathering.
Details
Application
1. Indoor water supply and reclaimed water systems for civil and industrial buildings;
2. Buried water supply system in residential quarters and factories;
3. Urban water supply pipeline system;
4. Water treatment pipeline system of water treatment plant;
5. Garden irrigation, well sinking and other projects and other industrial pipes.
Certificate
Company Profile
High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.
The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.
The company adheres to the belief of "integrity first, mutual benefit, and efficient development", based on the present and focusing on the future. Warmly welcome new and old customers, guests and friends from all walks of life to patronize, consult and guide, work together to create brilliant.
FAQ
Q: How can you guarantee the goods you offer is qualified?
A: We always believe honesty and responsibility are basis of one company, so whatever products we provide for you all are qualified. We will have goods tested and provide COA before delivery for sure.
Q: How do you guarantee that the products you provide are qualified?
A: We always believe that integrity and responsibility are the foundation of a company, so any products we provide you are qualified. We will test the goods and provide COA before delivery.
Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.
