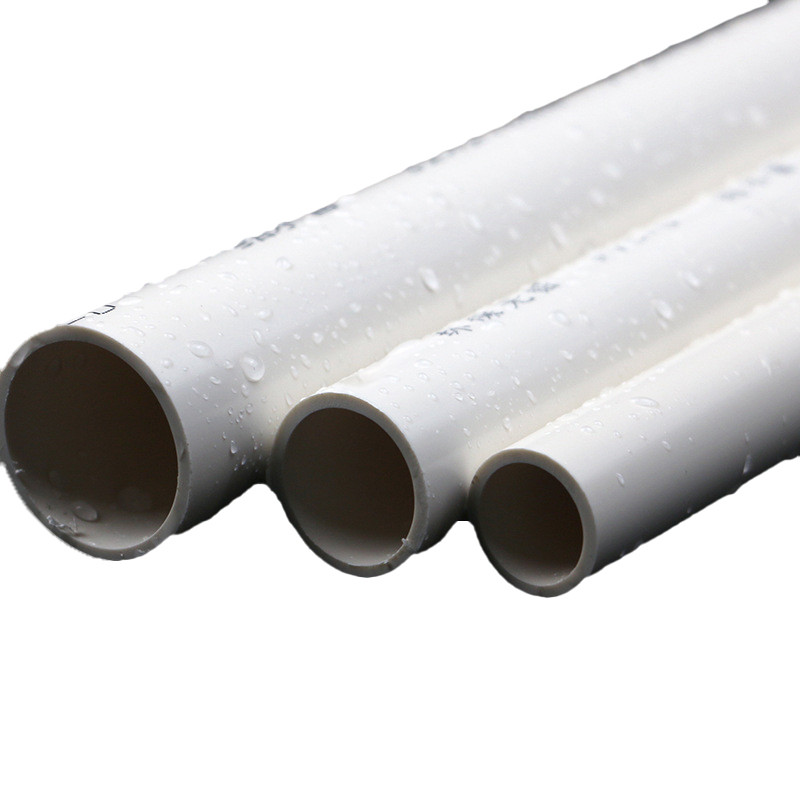

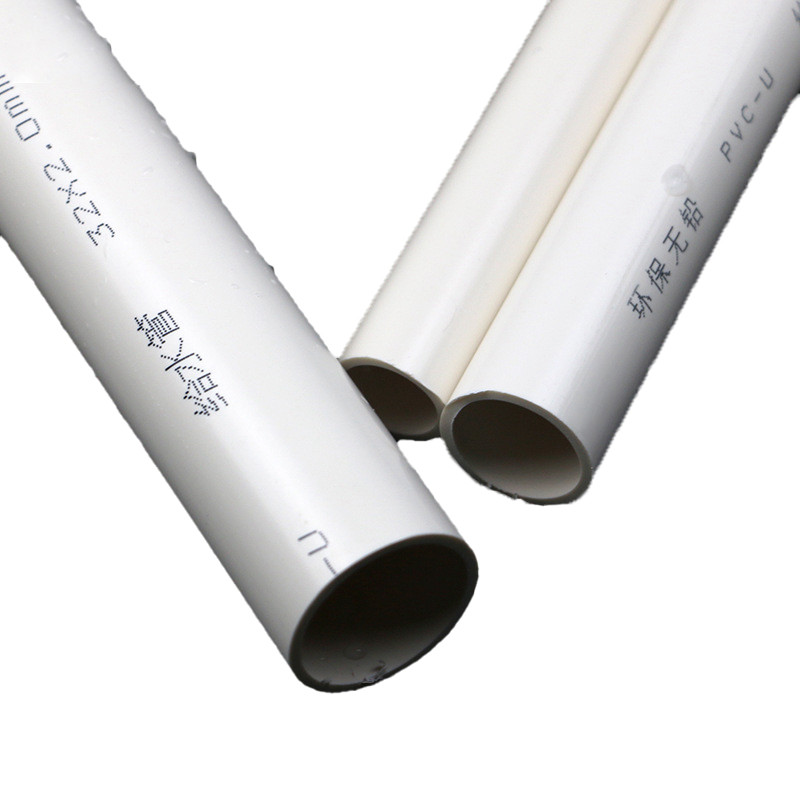

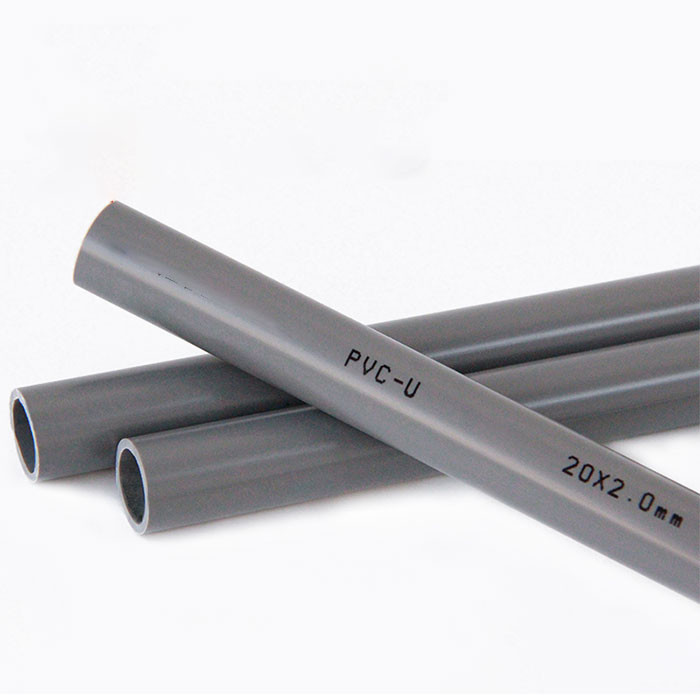

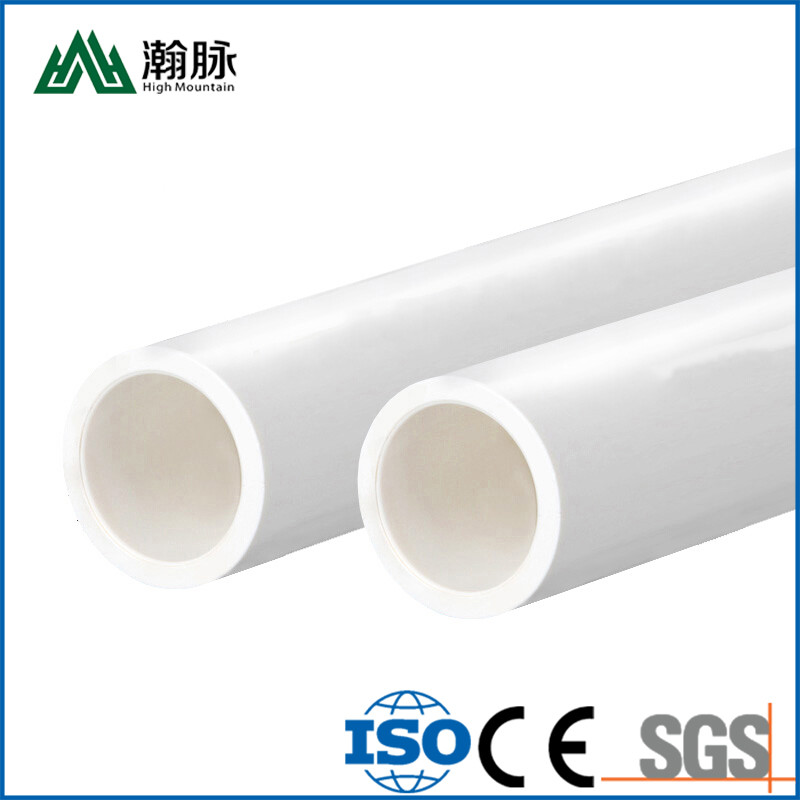

Grey Color PVC U Drainage Pipe Water Supply And Drainage Agricultural Irrigation
----------------------------------------
Basic Info.
PVC-U pipe has been regarded as the preferred pipe material by the construction industry. It is widely used in various fields and industries. From its own characteristics, it can be fully reflected in the waterway system. Then, what should we pay attention to during the installation process?
1. In order to ensure the safety and cleanliness of the PVC pipe, the pipe should be placed on the top with a bracket, which can ensure that the pipe is not placed anywhere and is not trampled by people, the pipe can also be used cleanly, and it can also prevent sludge residue in the pipe;
2. Before installation, the layout of the construction pipeline should be checked clearly, not only neat, but also strong in structure and smooth;
3. When installing, handle the pipe lightly to avoid damage during handling, and pay attention to the stones or silt staying in the pipe;
4. After the installation is completed, we need to conduct a pressure test for a period of time, and then check that there is no water leakage at each interface during the test, and replace it immediately if found.
| Outer Diameter DN (mm) |
PN25 | PN20 | PN16 | PN12.5 | PN10 | PN8 | PN6.3 |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | |
| 20 | 2.3 | 2.0 | |||||
| 25 | 2.8 | 2.3 | 2.0 | ||||
| 32 | 3.6 | 2.9 | 2.4 | 2.0 | |||
| 40 | 4.5 | 3.7 | 3.0 | 2.4 | 2.0 | ||
| 50 | 5.6 | 4.6 | 3.7 | 3.0 | 2.4 | 2.0 | |
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | 3.0 | 2.5 | 2.0 |
| 75 | 8.4 | 6.9 | 5.6 | 4.5 | 3.6 | 2.9 | 2.3 |
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 3.5 | 2.8 |
| 110 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 | 3.4 | 2.7 |
| 125 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 | 3.9 | 3.1 |
| 140 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 4.3 | 3.5 |
| 160 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 4.9 | 4.0 |
| 180 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 5.5 | 4.4 |
| 200 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 6.2 | 4.9 |
| 225 | 16.6 | 13.4 | 10.8 | 8.6 | 6.9 | 5.5 | |
| 250 | 18.4 | 14.8 | 11.9 | 9.6 | 7.7 | 6.2 | |
| 280 | 20.6 | 16.6 | 13.4 | 10.7 | 8.6 | 6.9 | |
| 315 | 23.2 | 18.7 | 15.0 | 12.1 | 9.7 | 7.7 | |
| 355 | 26.1 | 21.1 | 16.9 | 13.6 | 10.9 | 8.7 | |
| 400 | 29.4 | 23.7 | 19.1 | 15.3 | 12.3 | 9.8 | |
| 450 | 33.1 | 26.7 | 21.5 | 17.2 | 13.8 | 11.0 | |
| 500 | 36.8 | 29.7 | 23.9 | 19.1 | 15.3 | 12.3 | |
| 560 | 26.7 | 21.4 | 17.2 | 13.7 | |||
| 630 | 30.0 | 24.1 | 19.3 |
15.4 |
Advantage
1,Strong corrosion resistance, not affected by corrosive soil and various kinds of drinking water.
2,Smooth inner wall, less frictional resistance than conventional materials.
3,Pipes and fittings will never rust, thus no change of erosion and shrinkage will occur inside them.
4,The exterior walls of buildings will never be polluted by rusting pipes, ensuring that the value of buildings will not be damaged.
5,Pipe fittings are available in a wide range of styles and can be suitable for various design and installation requirements.
6,Easy to install, no need for regular maintenance and repair.
Details
Application
Widely used in: urban water supply project, inside and outside the building water supply project, industrial and mining enterprises water supply project, buried firefighting water supply project, agricultural irrigation project, gardening and greening water supply project, aquaculture industry water supply and drainage project, etc.
Certificate
Company Profile
High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.
The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.
The company adheres to the belief of "integrity first, mutual benefit, and efficient development", based on the present and focusing on the future. Warmly welcome new and old customers, guests and friends from all walks of life to patronize, consult and guide, work together to create brilliant.
FAQ
Q: How long is your warranty?
A: Our Warranty is 12 months.
Q: How do you guarantee that the products you provide are qualified?
A: We always believe that integrity and responsibility are the foundation of a company, so any products we provide you are qualified. We will test the goods and provide COA before delivery.
Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.
