Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened
10 Meter/Meters
MOQ
0.5$/m(1~10m);0.43$/m(>1000m)
Price
Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: HWHP
Certification: ISO9001
Model Number: HM05019
High Light:

Drinking Polyethylene Water Supply Pipe

,

PN10 Polyethylene Water Supply Pipe

Payment & Shipping Terms
Packaging Details: 6m or 12m per piece
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Specifications
Brand Name: HAIYANG
Model Number: HM05019
Specification: DN20mm-630mm
Color: Grey,white,black Or Request
Usage: Water Supply
Raw Material: PVC
Size: Customized Size
MOQ: 100 Meters
Sample: Provide Sample
Advantage: High Quality
Length: As Costomer Requirements
Product Description

Upvc Drinking Water Supply Pipe Upper Water Pipe Fittings Pvc Plastic Polyethylene Thickening PN10

----------------------------------------



Basic Info.



The conventional specifications of commonly used PVC pipe drainage pipes are as follows: Nominal outer diameters are: 32mm, 40mm, 50mm, 75mm, 90mm, 110mm, 125mm, 160mm, 180, 200mm, 250mm, 315mm, 400mm, 500mm, 630mm, etc. PVC-U The length of the pipe is generally 4m or 6m, and other lengths are negotiated and determined by the supplier and the demander.



Nominal Outside Diameter  Dimensions(mm)
S20/SDR41 T S16/SDR33 T S12.5/SDR26 T S10/SDR21 T S8/SDR17 T S6.3/SDR13.6 T S5/SDR11 T
16                         2.0 0.4
20                         2.0 0.4
25         -           2.0 0.4 2.3 0.5
32                 2.0 0.4 2.4 0.5 2.9 0.5
40     -   -   2.0 0.4 2.4 0.5 3.0 0.5 3.7 0.6
50     -   2.0 0.4 2.4 0.5 3.0 0.5 3.7 0.6 4.6 0.7
63     2.0 0.4 2.5 0.5 3.0 0.5 3.8 0.6 4.7 0.7 5.8 0.8
75     2.3 0.5 2.9 0.5 3.6 0.6 4.5 0.7 5.6 0.8 6.8 0.9
90     2.8 0.5 3.5 0.6 4.3 0.7 5.4 0.8 6.7 0.9 8.2 1.1
110     3.4 0.6 4.2 0.7 5.3 0.8 6.6 0.9 8.1 1.1 10.0 1.2
125     3.9 0.6 4.8 0.7 6.0 0.8 7.4 1.0 9.2 1.2 11.4 1.4
140     4.3 0.7 5.4 0.8 6.7 0.9 8.3 1.1 10.3 1.3 12.7 1.5
160 4.0 0.6 4.9 0.7 6.2 0.9 7.7 1.0 9.5 1.2 11.8 1.4 14.6 1.7
180 4.4 0.7 5.5 0.8 6.9 0.9 8.6 1.1 10.7 1.3 13.3 1.6 16.4 1.9
200 4.9 0.7 6.2 0.9 7.7 1.0 9.6 1.2 11.9 1.4 14.7 1.7 18.2 2.1
225 5.5 0.8 6.9 0.9 8.6 1.1 10.8 1.3 13.4 1.6 16.6 1.9 -
250 6.2 0.9 7.7 1.0 9.6 1.2 11.9 1.4 14.8 1.7 18.4 2.1 -
280 6.9 0.9 8.6 1.1 10.7 1.3 13.4 1.6 16.6 1.9 20.6 2.3 -
315 7.7 1.0 9.7 1.2 12.1 1.5 15.0 1.7 18.7 2.1 23.2 2.6 -
355 8.7 1.1 10.9 1.3 13.6 1.6 16.9 1.9 21.1 2.4 26.1 2.9 -
400 9.8 1.2 12.3 1.5 15.3 1.8 19.1 2.2 23.7 2.6 29.4 3.2 -
450 11.0 1.3 13.8 1.6 17.2 2.0 21.5 2.4 26.7 3.0 33.1 3.6 -
500 12.3 1.5 15.3 1.8 19.1 2.2 23.9 2.6 29.7 3.2 36.8 3.9 -
560 13.7 1.6 17.2 2.0 21.4 2.4 26.7 2.9 - - - - -
630 15.4 1.8 19.3 2.2 24.1 2.7 30.0 3.2 - - - - -
710 17.4 2.0 21.8 2.4 27.2 3.0
800 19.6 2.2 24.5 2.7 30.6 3.3





Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened 0



Advantage



1. The surface hardness and tensile strength of pvc drainage pipe are excellent, and the safety factor of the pipe is extremely high.
2. PVC drainage pipe has good aging resistance, and its normal service life can reach more than 50 years.
3. PVC drainage pipe has excellent corrosion resistance to inorganic acids, alkalis, salts and other substances, so it is more suitable for industrial sewage discharge and transportation.
4. PVC drainage pipe has small friction coefficient, smooth water flow, not easy to be blocked, less maintenance workload, high oxygen index, and self-extinguishing.
5. The linear expansion coefficient of pvc drainage pipe is small, 0. 07mm/℃, and the amount of deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and the freezing resistance is excellent.
6. Adhesive methods can be used for the connection of pvc drainage pipe, which is simple in construction, convenient in operation and effective in installation.



Details

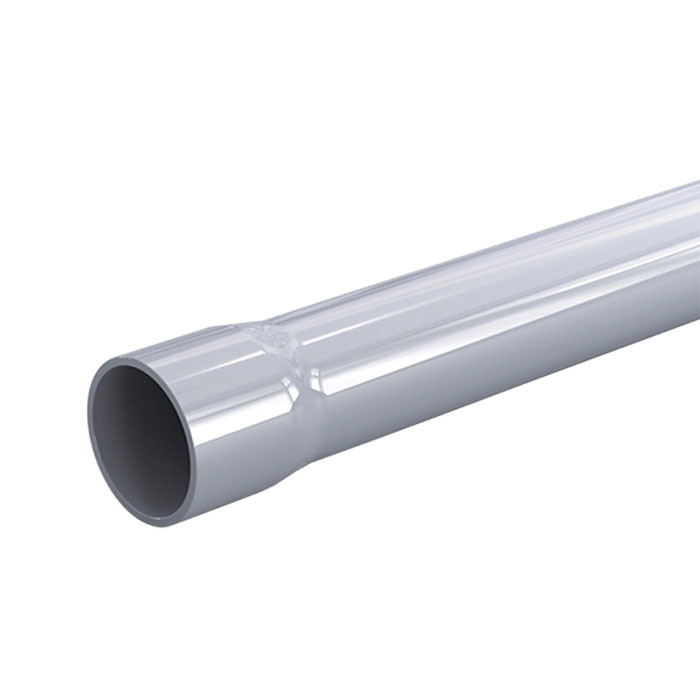

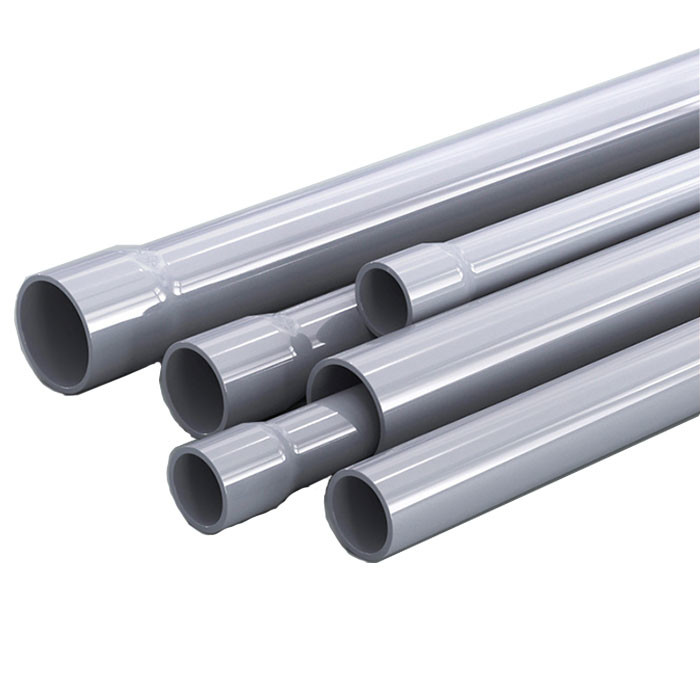

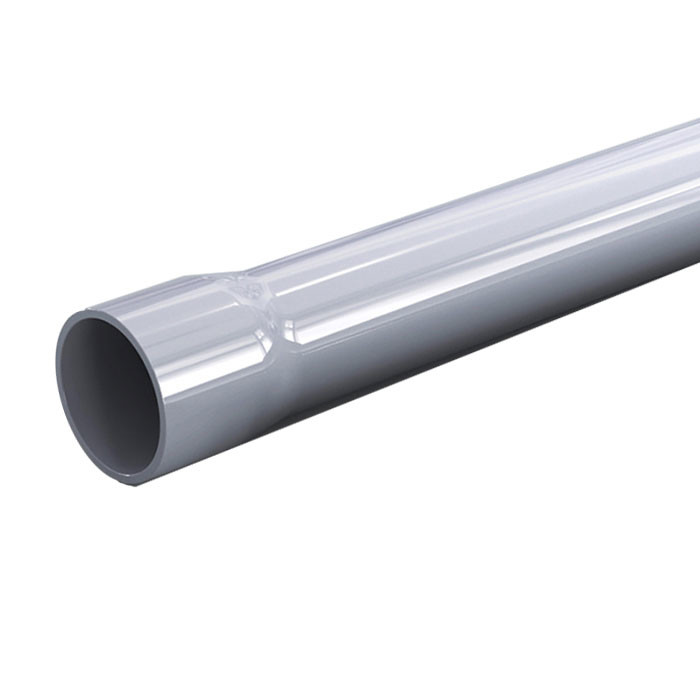

 Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened 1    Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened 2



Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened 3     Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened 4


Application



PVC pipe is a plastic pipe made of polyvinyl chloride resin, stabilizer, lubricant, etc., and then extruded by hot pressing. It is generally used for the transportation of drainage, waste water, chemicals, heating fluid and cooling fluid, food, ultra-pure Transmission of liquid, mud, gas, compressed air and vacuum system. Yes

PVC can be divided into soft PVC and hard PVC. Soft PVC is generally used for floors, ceilings and the surface of leather, but due to the poor physical properties of plasticizers contained in soft PVC, the scope of use is limited. Rigid PVC does not contain plasticizers, so it is easy to shape and has good physical properties. In the production process of PVC materials, stabilizers, plasticizers, etc. must be added. If all environmental additives are used, then PVC pipes are also non-toxic, tasteless and environmentally friendly products.



Certificate



Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened 5

Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened 6

Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened 7

Company Profile



High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.

The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.

The company adheres to the belief of "integrity first, mutual benefit, and efficient development", based on the present and focusing on the future. Warmly welcome new and old customers, guests and friends from all walks of life to patronize, consult and guide, work together to create brilliant.



Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened 8     Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened 9



Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened 10       Drinking Polyethylene Water Supply Pipe UPVC PN10 Thickened 11





FAQ



Q: What are your payment terms?
A: Accept the T/T and L/C terms.



Q: After reading your FAQ, I am very satisfied. How can I start buying my order?
A: Please contact our sales manager by email or phone, thank you.



Q: What are your payment terms?
A: Accept the T/T and L/C terms.
