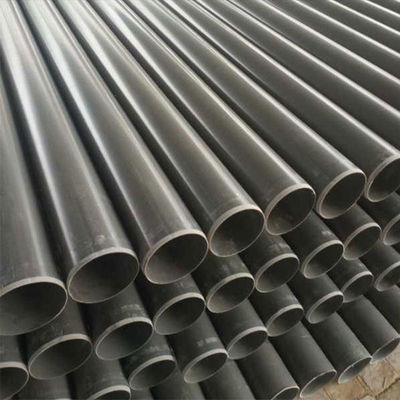

Top Quality Water Coloured Green Electrical Pvc Price List Upvc Pipe For Water Supply
----------------------------------------
Basic Info.
UPVC (Unplasticized Polyvinyl Chloride), commonly known as hard PVC, is composed of an amorphous thermoplastic resin made of vinyl chloride monomer through polymerization and certain additives (such as stabilizers, lubricants, fillers, etc.). In addition to using additives, the method of blending and modification with other resins is also adopted, which makes it have obvious practical value. These resins are CPVC, PE, ABS, EVA, MBS and so on. UPVC has high melt viscosity and poor fluidity. Even if the injection pressure and melt temperature are increased, the fluidity does not change much. In addition, the molding temperature of the resin is very close to the thermal decomposition temperature, and the temperature range that can be molded is very narrow, making it a difficult material to mold.
| Outer diameter (mm) | Inner diameter (mm) | Wall thickness (mm) | Pressure |
| 20 | 16 | 2 | 1.0Mpa |
| 25 | 21 | 2 | 1.0Mpa |
| 32 | 27.2 | 2.4 | 1.0Mpa |
| 40 | 36 | 2 | 1.0Mpa |
| 50 | 45.2 | 2.4 | 1.0Mpa |
| 63 | 57 | 3 | 1.0Mpa |
| 75 | 67.8 | 3.6 | 1.0Mpa |
| 90 | 81.4 | 4.3 | 1.0Mpa |
| 110 | 99.4 | 5.3 | 1.0Mpa |
| 140 | 126.6 | 6.7 | 1.0Mpa |
| 160 | 144.6 | 7.7 | 1.0Mpa |
| 225 | 203.4 | 10.8 | 1.0Mpa |
| 280 | 253.2 | 13.4 | 1.0Mpa |
| 315 | 285 | 15 | 1.0Mpa |
| 20 | 15.4 | 2.3 | 1.6Mpa |
| 25 | 19.4 | 2.8 | 1.6Mpa |
| 32 | 24.8 | 3.6 | 1.6Mpa |
| 40 | 34 | 3 | 1.6Mpa |
| 50 | 42.6 | 3.7 | 1.6Mpa |
| 63 | 53.6 | 4.7 | 1.6Mpa |
| 75 | 63.8 | 5.6 | 1.6Mpa |
| 90 | 76.6 | 6.7 | 1.6Mpa |
| 110 | 93.8 | 8.1 | 1.6Mpa |
| 140 | 119.4 | 10.3 | 1.6Mpa |
| 160 | 136.4 | 11.8 | 1.6Mpa |
| 225 | 191.8 | 16.6 | 1.6Mpa |
| 280 | 238.8 | 20.6 | 1.6Mpa |
| 315 | 268.6 | 23.2 | 1.6Mpa |
Advantage
1. Strong corrosion resistance: Compared with ordinary cast iron pipes and galvanized pipes, PVC pipes have strong corrosion resistance, strong acid and alkali resistance, and will not rust and scale. There is no need to worry about the phenomenon of "red water" when using it.
2. Small fluid resistance: The inner wall of the PVC pipe is very smooth. Its surface roughness coefficient is only 0.009, the fluid resistance is very small, and the water pressure will not be excessively reduced.
3. High mechanical strength: UPVC pipes for water supply have good water pressure resistance, impact resistance and tensile strength, and can withstand 110 atmospheres for 1 hour at room temperature without breaking.
4. Hygienic and non-toxic: UPVC pipes for water supply use a unique green lead-free formula system instead of the traditional compound lead salt formula system, so it will not damage water quality and affect human health.
5. Light texture, easy installation and construction: The density of the PVC pipe is one-fifth of that of ordinary cast iron, and it is easy to transport and unload. And use special adhesive paste or elastic seal sleeve, installation and construction is simple and quick.
6. The temperature performance of the water supply pipe: The temperature range of the UPVC pipe for water supply is best at room temperature. If the temperature is too low, the brittleness will increase, which is unfavorable for installation and construction; if the temperature is too high, the tensile strength will decrease, and the water pressure resistance will decrease.
7. Good water tightness: 15 minutes after the adhesive is bonded, the bonding strength can reach more than 12.5/C, and it will not decrease significantly after many years of use. The service life is quite long, and there is no worry of aging and water leakage.
Details
Application
Tap water piping projects (including indoor water supply and outdoor municipal water pipes), because UPVC plastic pipes have the advantages of acid and alkali resistance, corrosion resistance, no rust, no scaling, protection of water quality, and avoidance of secondary pollution of water quality. Today, as an ideal "green building material" to protect human health, the product has been widely used in China and even around the world.
