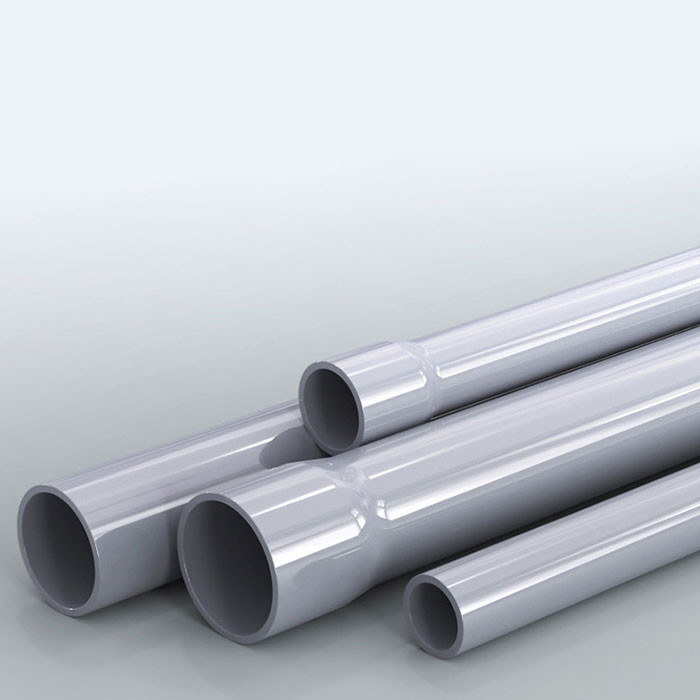

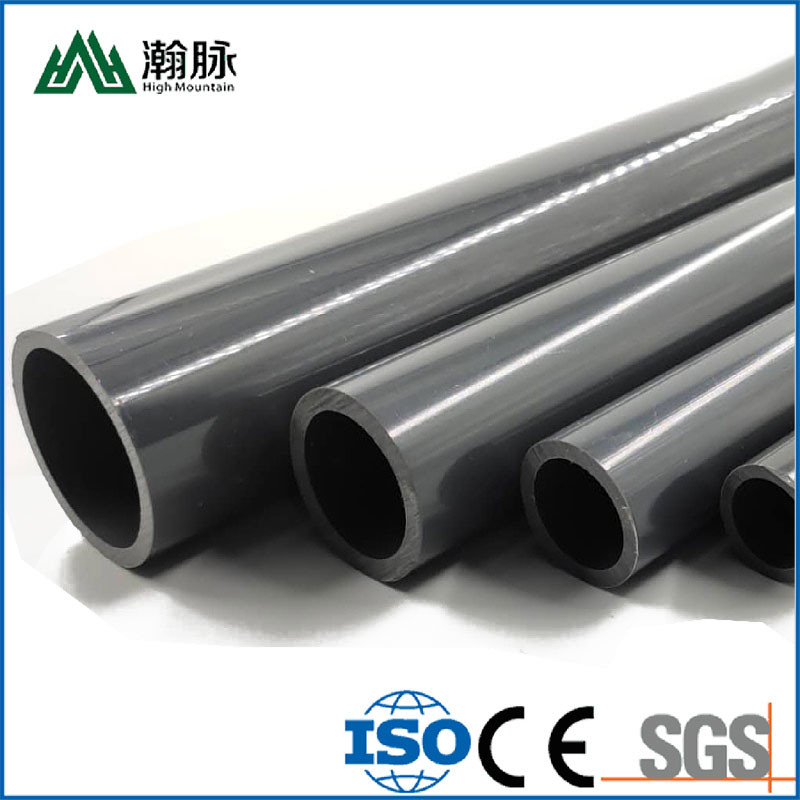

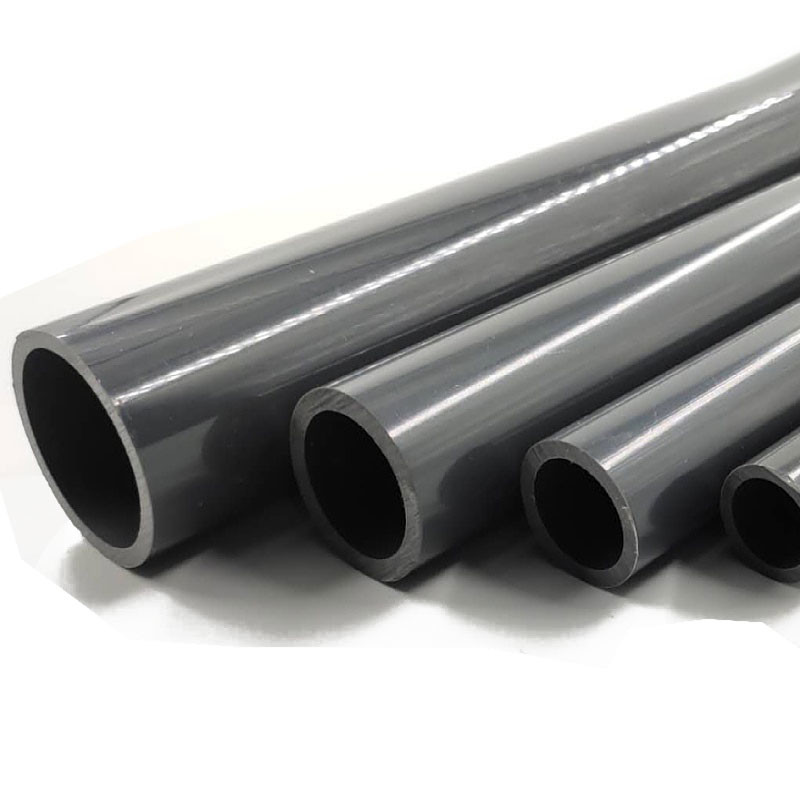

Factory Hot Sale 200mm 18mm Diameter Pvc Astm Standard Upvc Pipe With 100% Safety
----------------------------------------
Basic Info.
Lightweight: The proportion of UPVC material is only 1/5 of that of cast iron, which is easy to transport, install and reduce costs.
Superior chemical resistance: UPVC has excellent acid and alkali resistance, except for strong acid and alkali near the saturation point or strong Oxidising agents atmaximun.
Non-conductive: UPVC material can not conduct electricity, nor is it corroded by electrolysis and current, so there is no need for secondary processing.
Can not burn, does not support combustion, no fire concerns.
Easy installation and low cost: cutting and joining are very simple, and the use of PVC glue to join has proven reliable and safe, easy to operate and low cost.
Durable: excellent weather resistance, and can not be corrupted by bacteria and fungi.
Low resistance and high flow rate: the inner wall is smooth, the loss of fluid fluidity is small, and the dirt is not easy to adhere to the smooth pipe wall, the maintenance is relatively simple, and the maintenance cost is low.
| Outer Diameter DN (mm) |
PN25 | PN20 | PN16 | PN12.5 | PN10 | PN8 | PN6.3 |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | |
| 20 | 2.3 | 2.0 | |||||
| 25 | 2.8 | 2.3 | 2.0 | ||||
| 32 | 3.6 | 2.9 | 2.4 | 2.0 | |||
| 40 | 4.5 | 3.7 | 3.0 | 2.4 | 2.0 | ||
| 50 | 5.6 | 4.6 | 3.7 | 3.0 | 2.4 | 2.0 | |
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | 3.0 | 2.5 | 2.0 |
| 75 | 8.4 | 6.9 | 5.6 | 4.5 | 3.6 | 2.9 | 2.3 |
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 3.5 | 2.8 |
| 110 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 | 3.4 | 2.7 |
| 125 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 | 3.9 | 3.1 |
| 140 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 4.3 | 3.5 |
| 160 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 4.9 | 4.0 |
| 180 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 5.5 | 4.4 |
| 200 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 6.2 | 4.9 |
| 225 | 16.6 | 13.4 | 10.8 | 8.6 | 6.9 | 5.5 | |
| 250 | 18.4 | 14.8 | 11.9 | 9.6 | 7.7 | 6.2 | |
| 280 | 20.6 | 16.6 | 13.4 | 10.7 | 8.6 | 6.9 | |
| 315 | 23.2 | 18.7 | 15.0 | 12.1 | 9.7 | 7.7 | |
| 355 | 26.1 | 21.1 | 16.9 | 13.6 | 10.9 | 8.7 | |
| 400 | 29.4 | 23.7 | 19.1 | 15.3 | 12.3 | 9.8 | |
| 450 | 33.1 | 26.7 | 21.5 | 17.2 | 13.8 | 11.0 | |
| 500 | 36.8 | 29.7 | 23.9 | 19.1 | 15.3 | 12.3 | |
| 560 | 26.7 | 21.4 | 17.2 | 13.7 | |||
| 630 | 30.0 | 24.1 | 19.3 |
15.4 |
Advantage
UPVC pipe has the following characteristics:
1. Good chemical corrosion, no rust;
2. Self-extinguishing and flame retardant;
3. Good aging resistance, can be used between -15℃-60℃ for 20-50 years;
4. The inner wall is smooth, the surface tension of the inner wall is difficult to form scale, and the fluid conveying capacity is 43.7% higher than that of cast iron pipes;
5. Light weight, easy flaring, bonding, bending, welding, installation workload is only 1/2 of that of steel pipe, low labor intensity and short construction period;
6. Good electrical resistance performance, volume resistance 1-3×105Ω.cm, breakdown voltage 23-2kv/mm;
7. Low price;
8. Save metal energy;
9. UPVC pipe has low toughness, large linear expansion coefficient and narrow operating temperature range.
Details
Application
As mentioned earlier: the connection method of UPVC pipe has a socket and a rubber ring connection. For bonding connection and flange connection, it is more suitable to use socket rubber ring connection for pipes with larger diameters. If the bonding connection is used, it is difficult to ensure the absolute cleanliness of the pipe joint before bonding, just a grain of sand. A small bubble will be the hidden danger of the interface leaking. In addition, the bonding is also affected by temperature and air, and it is difficult to construct outdoors.
The connection forms of PE pipes include electric hot melt connection and hot melt butt connection. Especially for the electric heat fusion connection, it uses a sleeve to cover the two pipe joints, and the sleeve and the two pipes are fused together by heating the electric heating wire inside the sleeve. leaks, but this sleeve-type joint is expensive.
